Tumbler
An exact volume, capable of softening the view with the best technology. In line with Nathan Rogers’ proposition of designing “from the spoon to the city”, the Tumbler luminaire transfers the characteristic and highly elegant minimalism of the interior space to the noisy world of the city.
Elegance for the urban space
The Tumbler luminaire is like a domestic lampshade for urban use, with a conical section provided that has rounded off edges and increased efficiency. The luminaire provides modularity, great light quality and increased efficiency in order to adapt to the requirements of private and public outdoor spaces.
- Anodised injection-moulded aluminium EN-AC-47100 luminaire with powder-coated finish.
- Interior ABS-PC plastic reflector.
- Tempered optical glass diffuser.
- A2 stainless steel hardware and metal cable gland.
Light grey
Balck
The colours shown are purely indicative.
Other colours are available upon request.
Check finishes for marine environments.
System power (W)
High efficiency optical unit
- 16 LEDs 19W, 27W, 37W
- 24 LEDs 27W, 38W, 53W
- COB 20W, 28W, 39W
Operating current (mA)
- 350
- 500
- 700
Colour temperature (K)
- 4000 CRI min 80
- 3000 CRI min 80
- 2700 CRI min 80
- 2200 CRI min 70
- PC Amber CRI min 40
Other colour temperatures and/or CRIs are available upon request.
Service life
TM21 L90 (10k) > 100,000 h
All our products support remote regulation, both individually and in groups, through the most standardised control systems, significantly reducing energy consumption and eliminating light pollution. We adapt our products to safeguard biodiversity and respect circadian rhythms, eliminating harmful wavelengths.
Our luminaires comply with the American IESNA LM80 and TM21 standards.
Controls
1-10V / 0-10V
Analog one-way regulation protocol that, through a signal between 1 or 0 and 10 V, allows remote linear control of the luminous flux between 10% or 0% and 100%. The standard programming is as follows: Vi ≥ 8V – 100%; Vi ≤ 1V – 10%.
DALI
Two-way digital communication protocol (Digital Addressable Lighting Interface) that allows grouping, regulating, and turning off the luminaire, using an 8-bit resolution with 254 regulation steps and receiving information about its status for maintenance.
Programmes
Automatic programming
Individual, self-managed programming in the product and bi-directional. It is configured prior to installation. It is useful in projects that require a single pattern throughout the product’s life. It incorporates automatic regulation steps with geolocation and real nighttime cycles.
Example: 100% from 21:00 to 22:00; 70% from 22:00 to 01:00; 50% from 01:00 to 05:00; 70% from 05:00 to 08:00.
Automatic control panel programming
Individual, self-managed programming in the control panel and one-way. It is configured prior to installation. It can coexist with other analog voltage reduction technologies, such as phase-cut. It is useful in projects that need different patterns throughout the year or the product’s life.
Example: Summer 100% from 21:00 to 22:00; 70% from 22:00 to 01:00; 50% from 01:00 to 05:00; Winter 100% from 16:00 to 22:00; 70% from 22:00 to 01:00; 50% from 01:00 to 08:00.
Command line programming
Group regulation, in the control panel and one-way. It requires the installation of an additional control electrical line besides the power line (2×2.5mm2). It is useful in projects that need simplified regulation.
Lighting Flow dimmer programming
Group regulation, in the control panel and one-way. It requires the installation of a stabilizer/voltage regulator in the control panel and product configuration to interpret the correlation between line voltage and power. It is useful in projects that need a simplified system with existing regulators.
Example: Vi ≥ 230V – 100%; Vi ≤ 185V – 60%
Functionalities
Constant Luminous Management (CLM)
Optional function parallel to the programming that maintains the project illumination levels constant throughout the installation’s life, increasing the luminaire’s power proportionally to the LED depreciation. Our standard programming is 0h 80%; 60,000h 100%.
Temperature control
Optional automatic protection to safeguard the integrity of the lighting components. It monitors the maximum temperature, activating a flow reduction to recover an acceptable value.
Surge protection
Protector against voltage spikes caused by thunderstorms. Sized for a maximum discharge current of 10kA.
- Includes pressure compensation valve and 10kV surge protector (CE).
- Clean using pH-neutral, alcohol-free, and non-abrasive cleaning products.
CE
UL
RoHs
IP66
IK08
Clase I
Distributions
Wide Flood
Flood
Medium
Spot
Wide Flood COB
Type II
Type II+II
Type II+III
Type III
Type IV
Type V
Applications

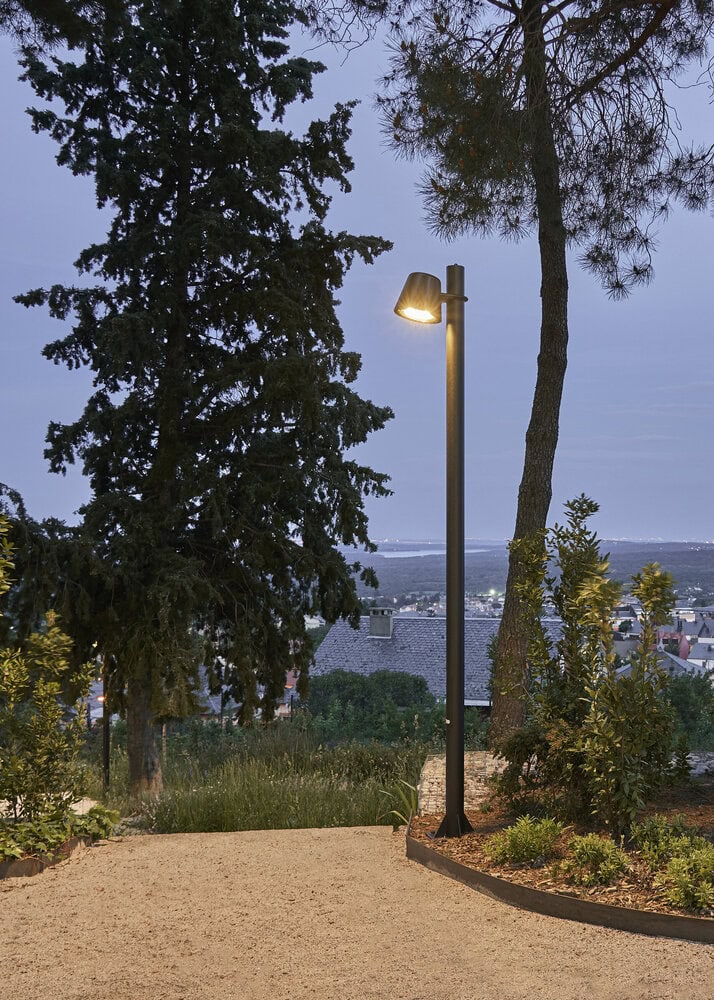

Column lighting is the most well-organized, functional option for urban projects. It harmonizes layouts from a technical perspective, with good rates of uniformity and suitable lighting values. The accessories allow the luminaire to be attached to cylindrical columns of Ø114.3 mm or other diameters.
Materials
Accessory for cylindrical columns made from die cast EN-AC-47100 aluminum, and vertical accessory for retrofit columns made from extruded 6060-T5 aluminum, thermal coating finish. A2 stainless steel screws. Column made from hot-dip galvanized S-275 JR Class 1 steel, painted finish: 3.60 m, 4.40 m, 5.20 m heights with one circular section segment of Ø114.3 mm; 6.80 m height with two circular section segments, the upper one of Ø114.3 mm and the lower one of Ø152 mm.
Installation
Column fixed in a concrete block on-site, with a groove for electrical connection, and four anchor bolts per column, 20 cm below the pavement level. Installation and assembly instructions, screws, template, and anchor bolts included.
Weight
Luminaire: 6.2
Single column accessory: 0.8
Double column accessory: 1.3
Vertical column accessory: 0.3
*Approximate weight without packaging (kg)
Catenary lighting allows the layout of the light points to be separate from the rigidity of the program, creating spaces for people and nature. The accessory for installing a luminaire on a catenary cable (between Ø6-8 mm) allows for on-site rotation of 360º to direct the luminous flux.
Materials
Attachment parts made from die cast EN-AC-47100 aluminum, thermal coating finish. A2 stainless steel screws.
Installation
Attach the accessory to the luminaire, and then the assembly to the catenary cable. The anchoring system allows for a cable diameter of between Ø6 and 8 mm.
Installation and assembly instructions, and screws included.
Catenary cable not included.
Weight
Luminaire: 6.2
Catenary accessory: 0.3
*Approximate weight without packaging (kg)

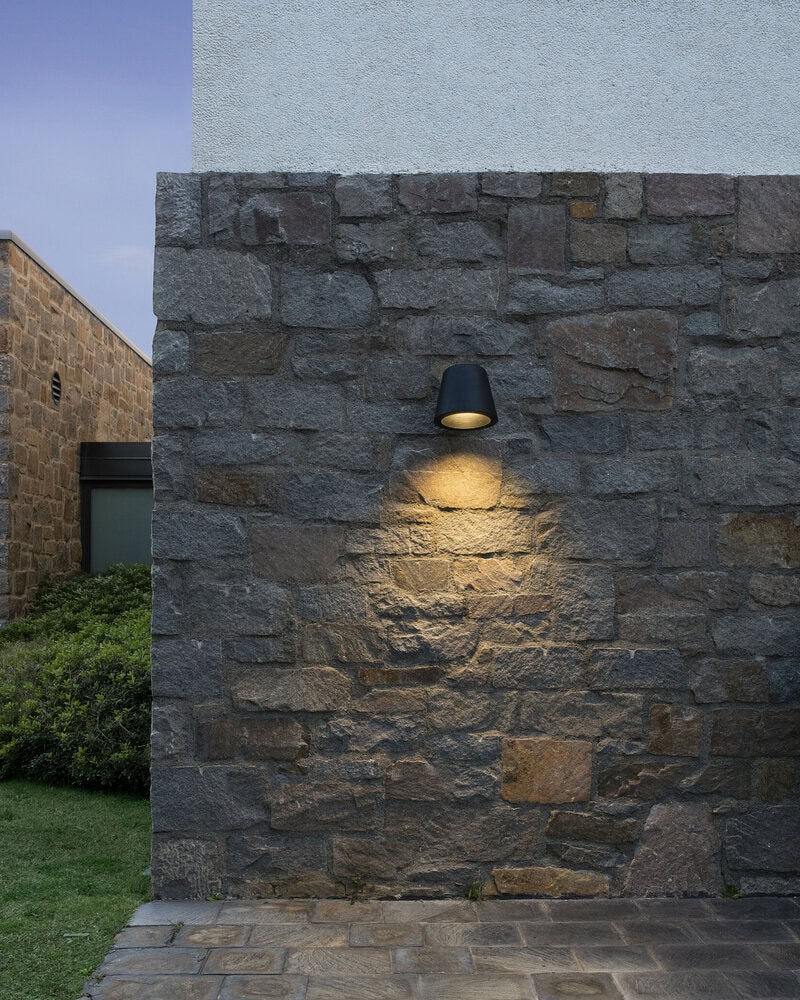

Wall-mounted lighting provides illumination while maintaining coherence throughout the entire project layout. In this way, the luminaire is completely integrated into the vertical limit, in order to illuminate architectural facades, pathways, squares, parking areas, landscapes, or transit areas.
Materials
Accessory made from die cast EN-AC-47100 aluminum, thermal coating finish. A2 stainless steel screws.
Installation
Attach the accessory to the surface and then the luminaire. The system is compatible with a recessed or surface electrical installation. Installation and assembly instructions, and screws included.
Fixing wall plugs not included.
Weight
Luminaire: 6.2
Single wall accessory: 1.8
Vertical wall accessory: 0.6
*Approximate weight without packaging (kg)
Downloads

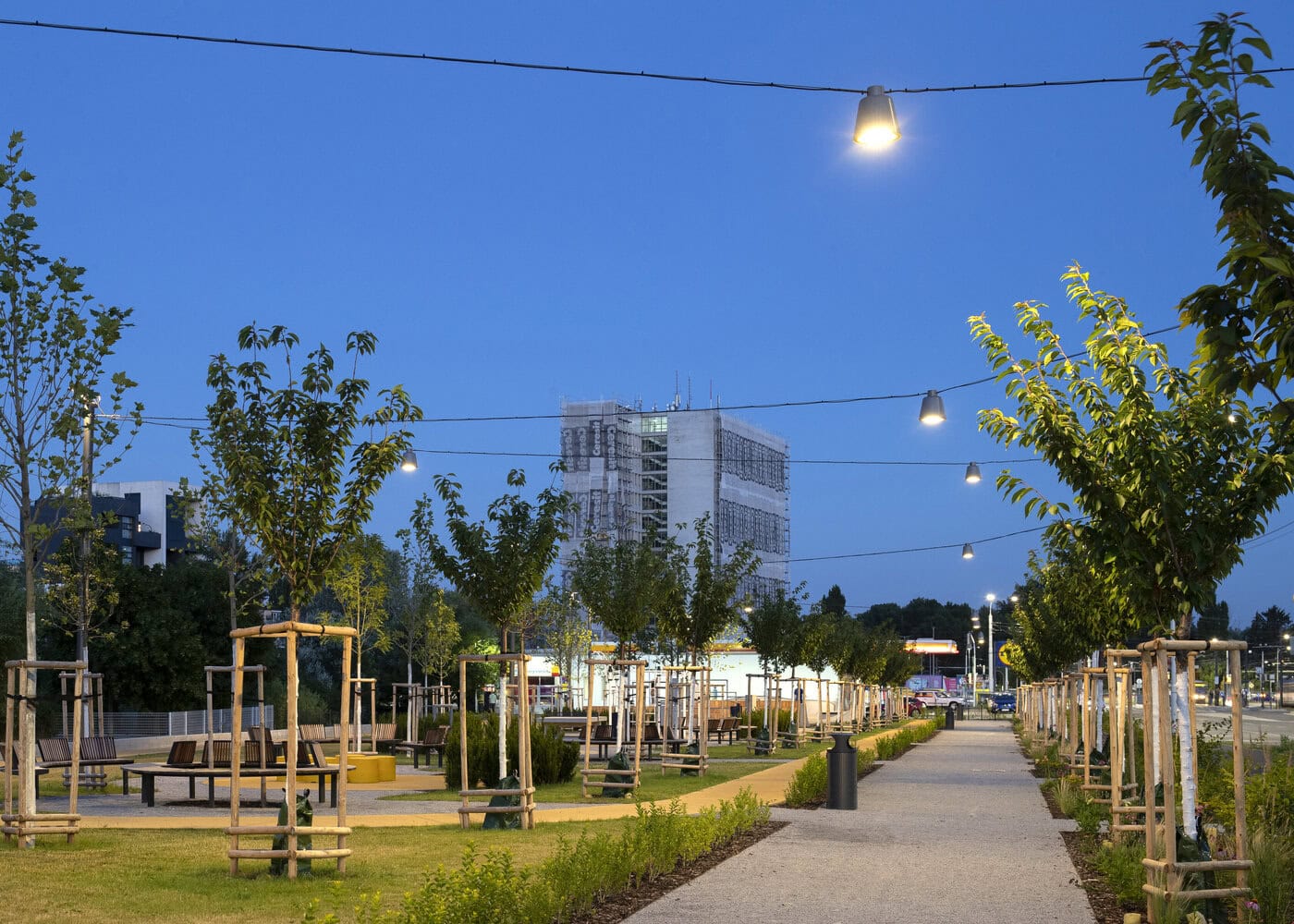

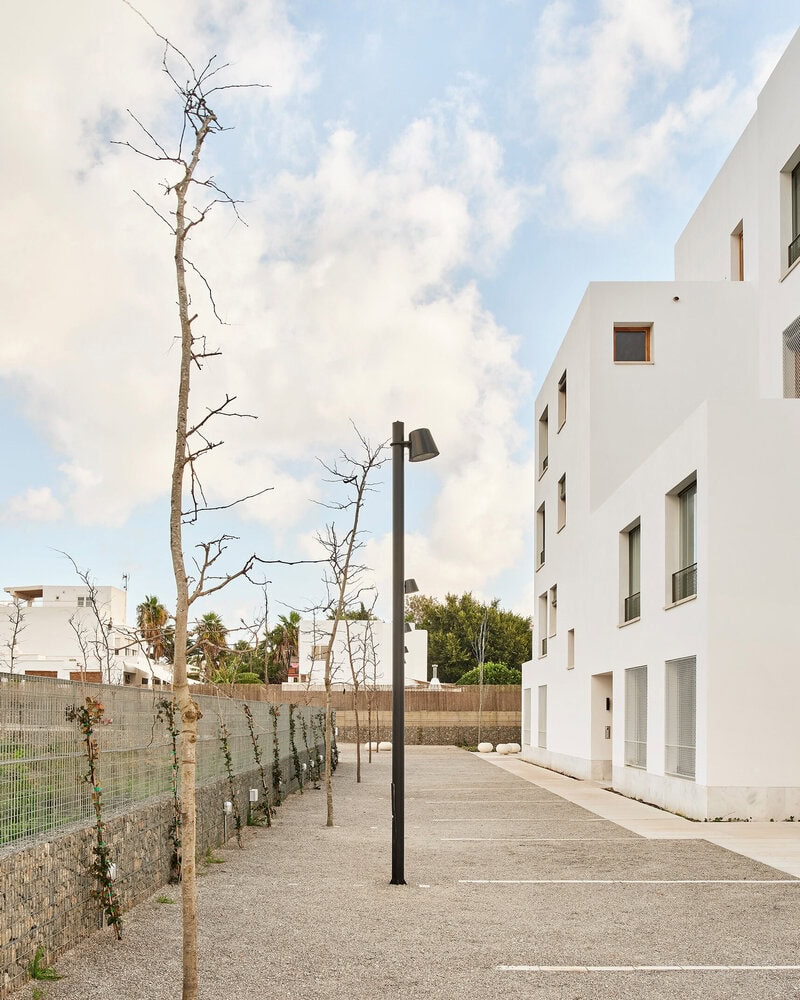

Tumbler in the city

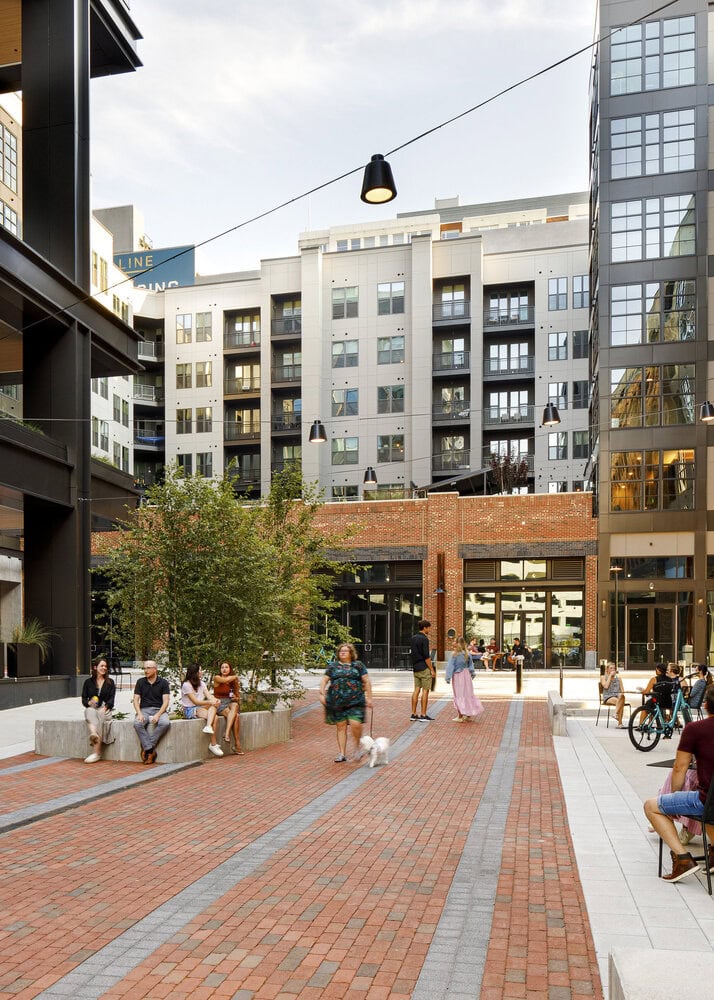

Smoky Hollow
Raleigh, NC, USA

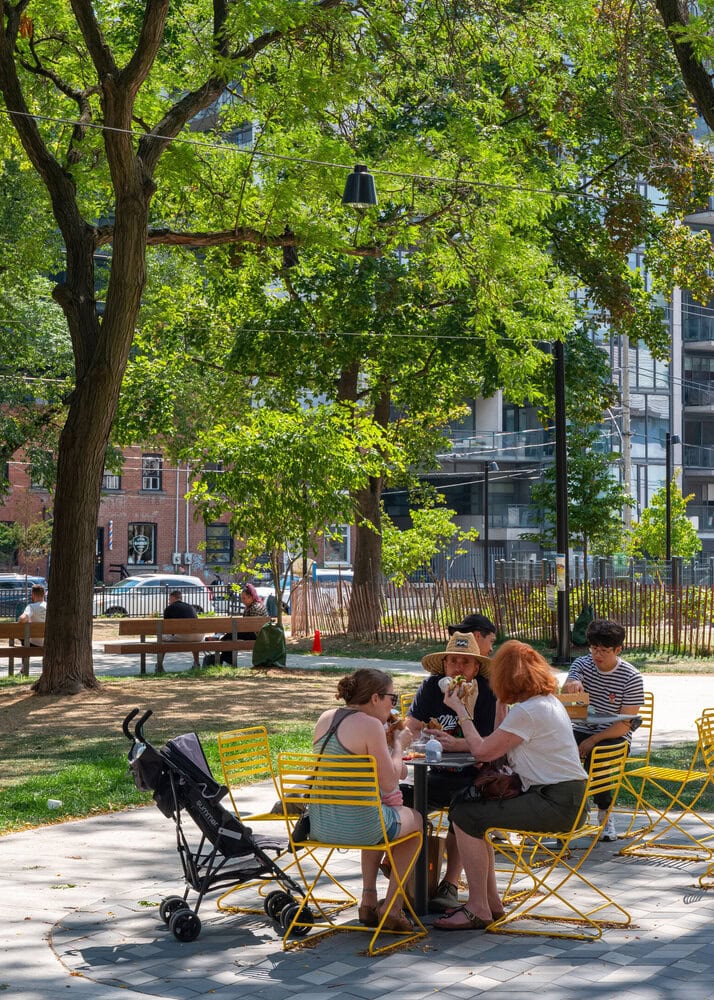

St. Andrew's Playground Park
Toronto, Canada

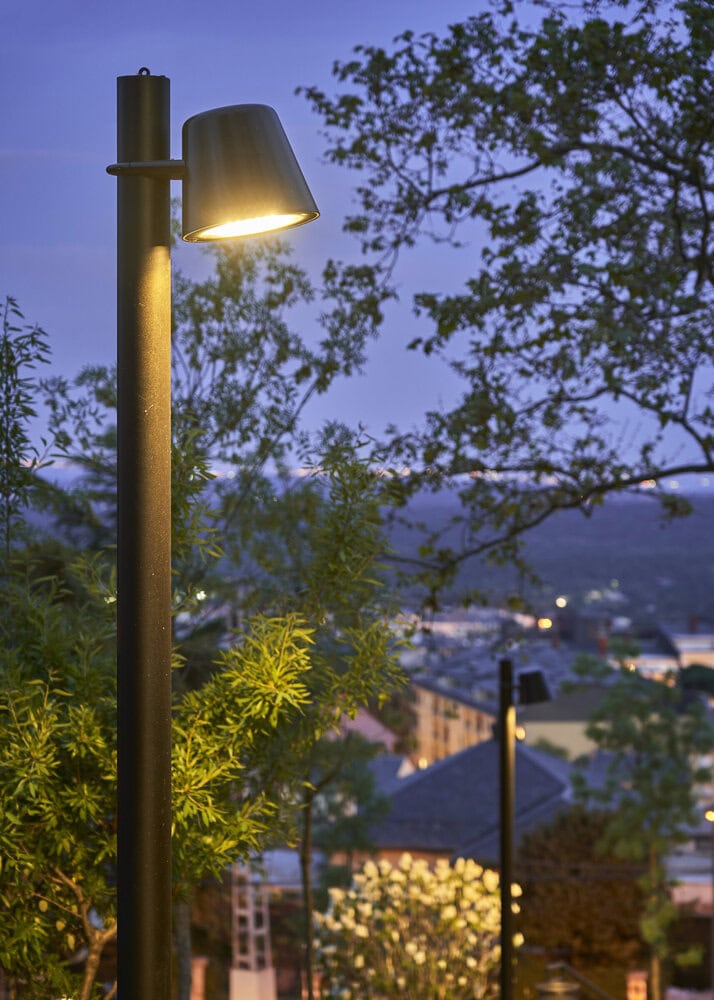

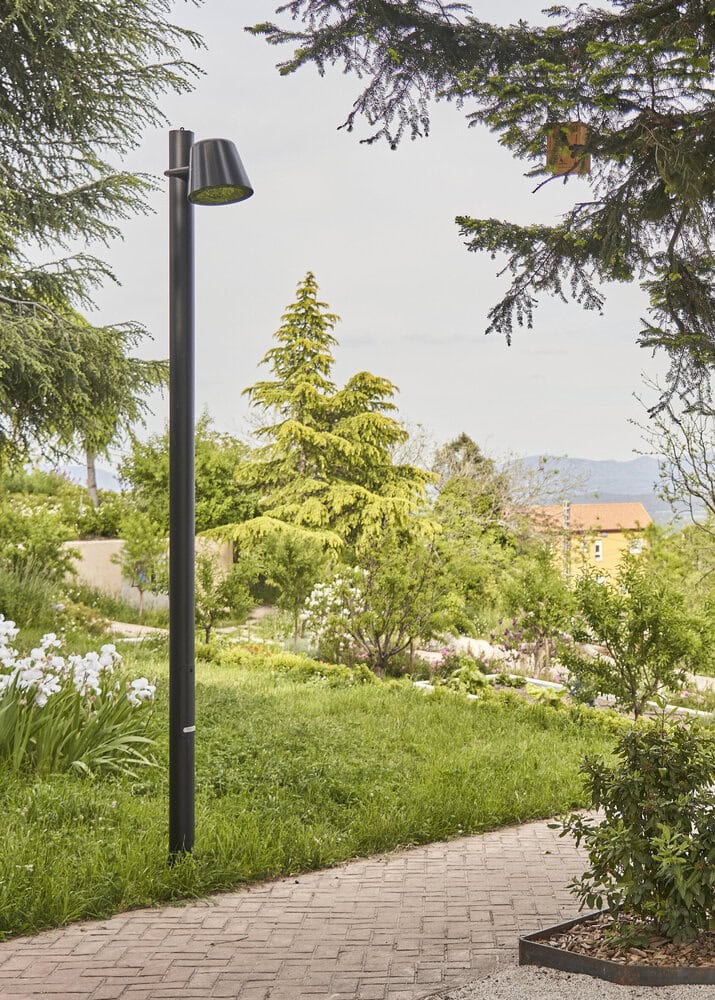

Garden of the hostel EI Escorial
San Lorenzo de El Escorial, Spain

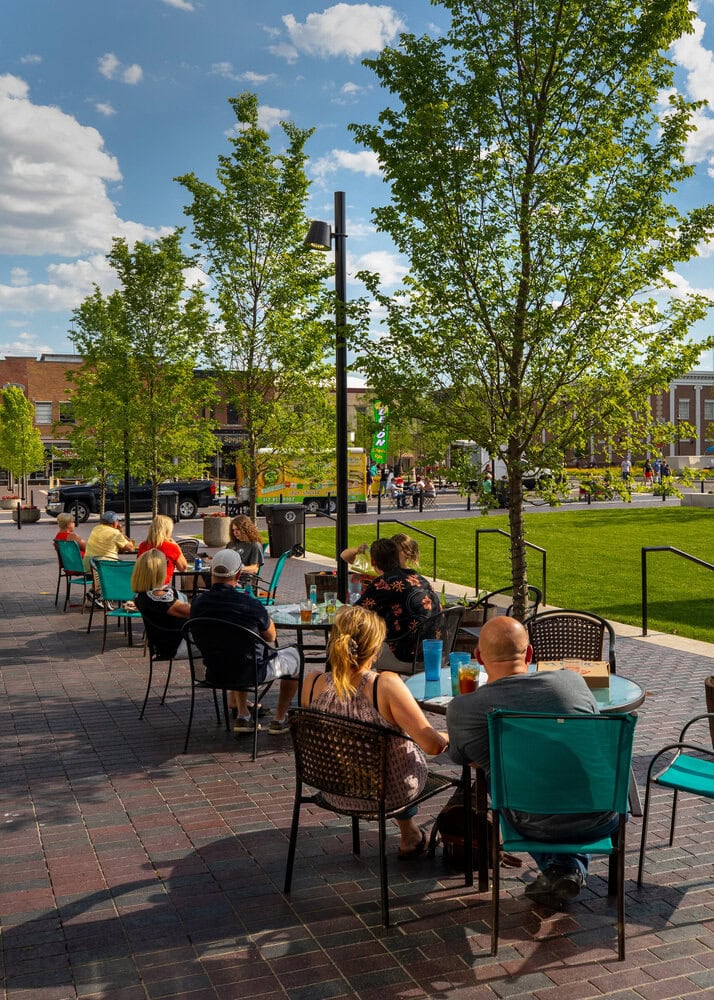

Shelbyville Downtown Square
