Trapecio
This large-scale rest element is formed of two large trapezoidal parts made from wood or concrete. Trapecio stands out for the beauty and generosity of its geometry, forceful and very attractive. It transforms whatever space it’s in, offering new possibilities for urban leisure.
A meeting point
A magnet for social activity, Trapecio is a large bench that allows for informal sitting on the seat or on the backrest, even for big groups. It is a bench designed to be used in parks and avenues, as well as in corporate and educational projects.
- Structure created in hot-dip galvanized S275 JR steel, painted finish with C3 anti-corrosive protection.

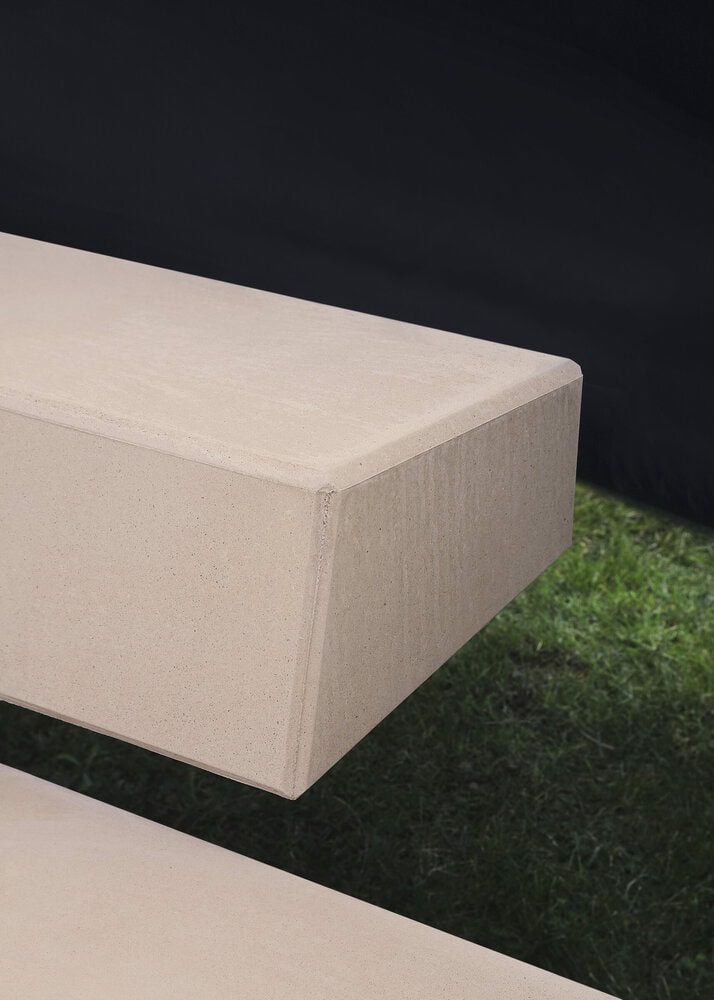

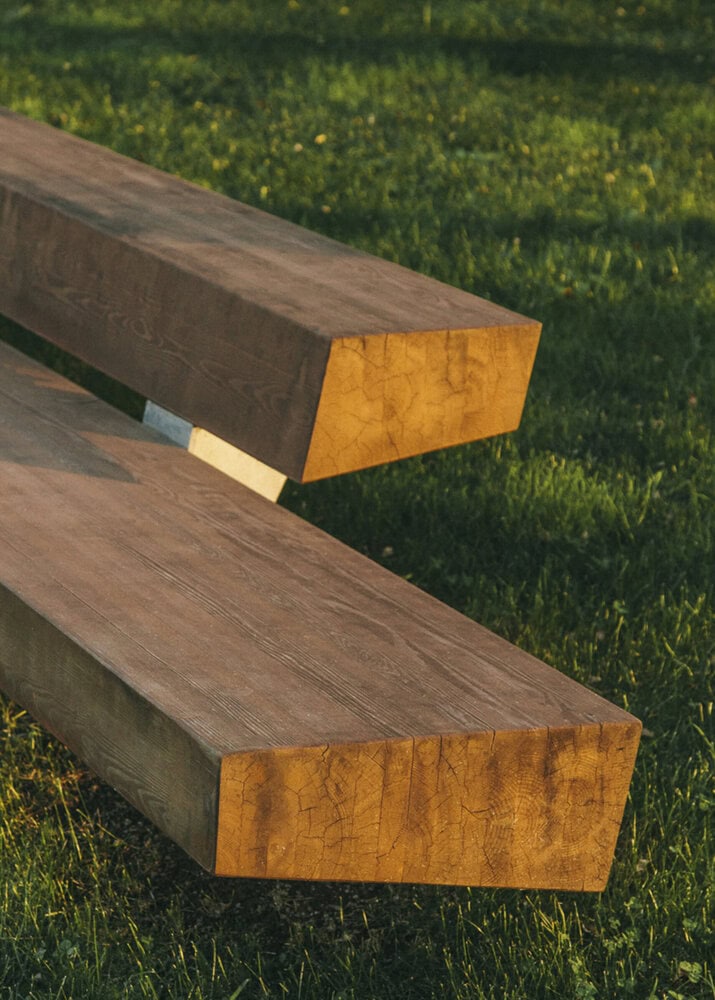

- Seat and backrest composed of 4.50 m beams with an approximate section of 20 x 40 cm, made from 100% PEFC-certified glued laminated wood, protected with a trilayer coat of oil, or from reinforced mass-colored architectural concrete with a stripped, aggregate, waterproof finish.
- A2 stainless steel screws.
Earth
Grey
100% PEFC Glulam
The colours shown are purely indicative.
Other colours are available upon request.
Check finishes for marine environments.
- Installation using four fixing wall plugs per supporting structure, inserted into holes made in concrete blocks in advance. 10 cm recessing below the pavement level.
- The element is supplied disassembled, in two components: structure and beams.
- Installation and assembly instructions, screws, and fixing wall plugs included.
- In order to maintain the properties of the wood and its correct ageing, it is necessary to carry out maintenance once a year.
CE
PEFC
Wooden bench: 380
Architectural concrete bench: 1062
*Approximate weight without packaging (kg)
Downloads
Data Sheet
Instructions
View Files
Drawings
3D Cad
BIM
IES Photometry
Trapecio in the city

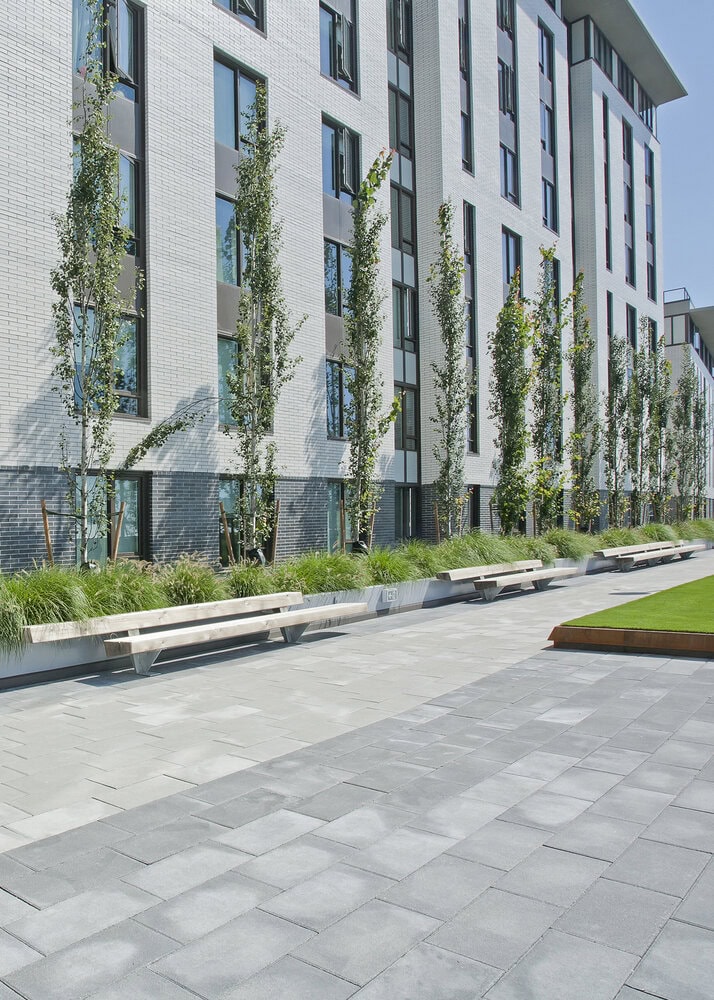

University of British Columbia Gage South
Vancouver, Canada

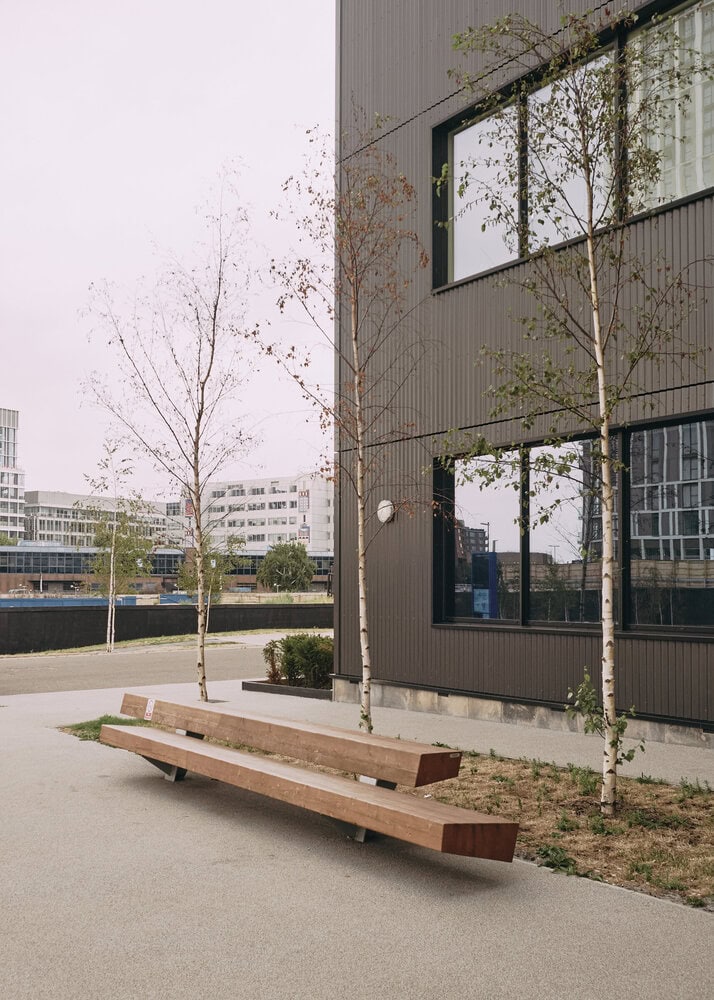

Imperial College White City
London, England, UK

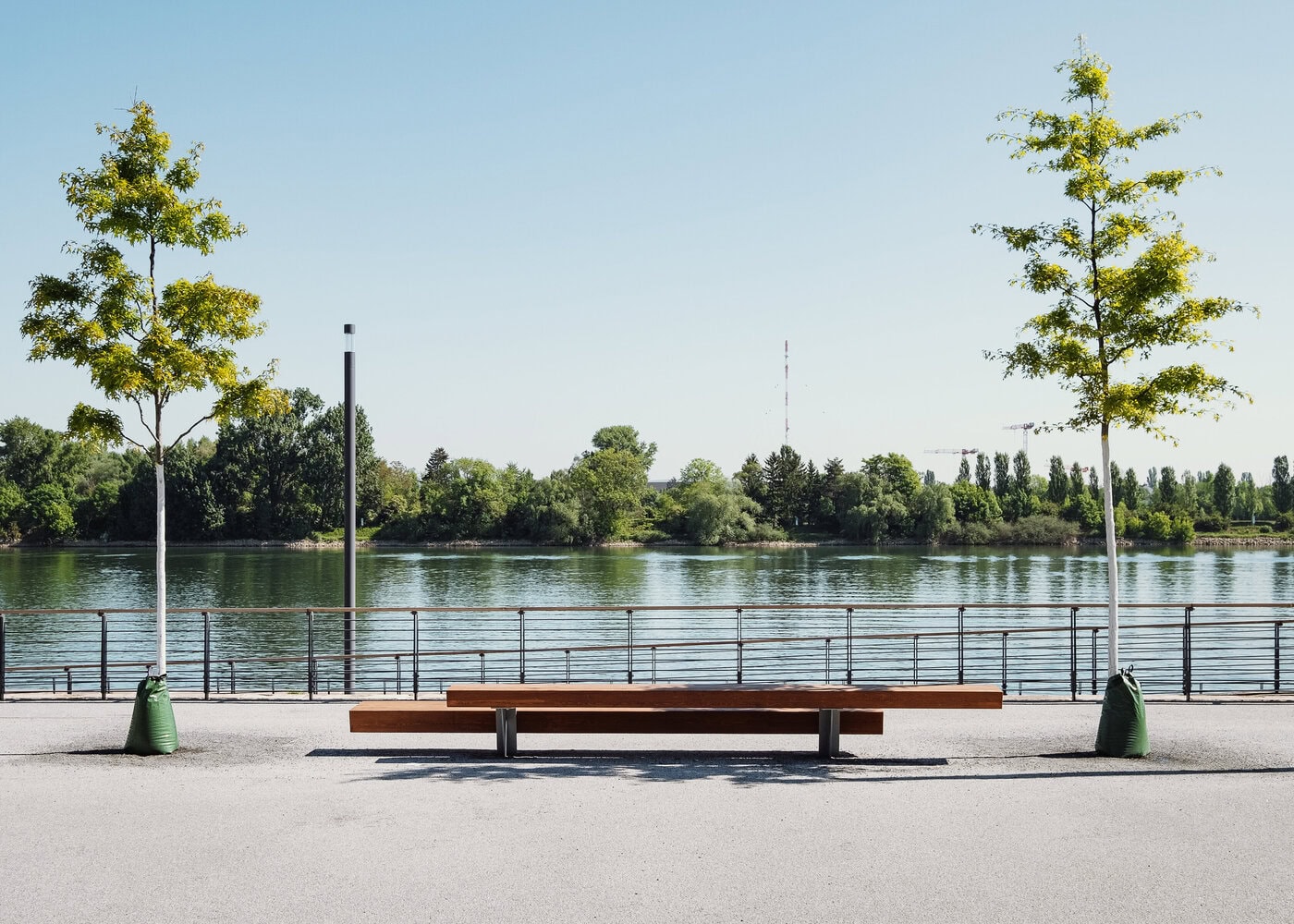

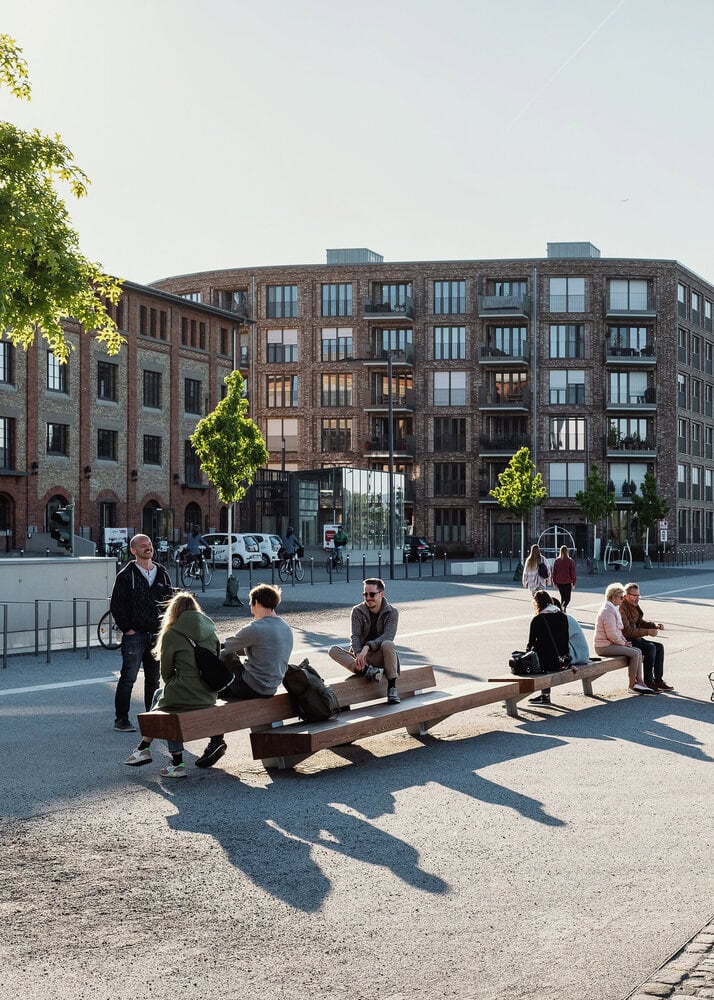

Customs port Mainz
Mainz, Germany

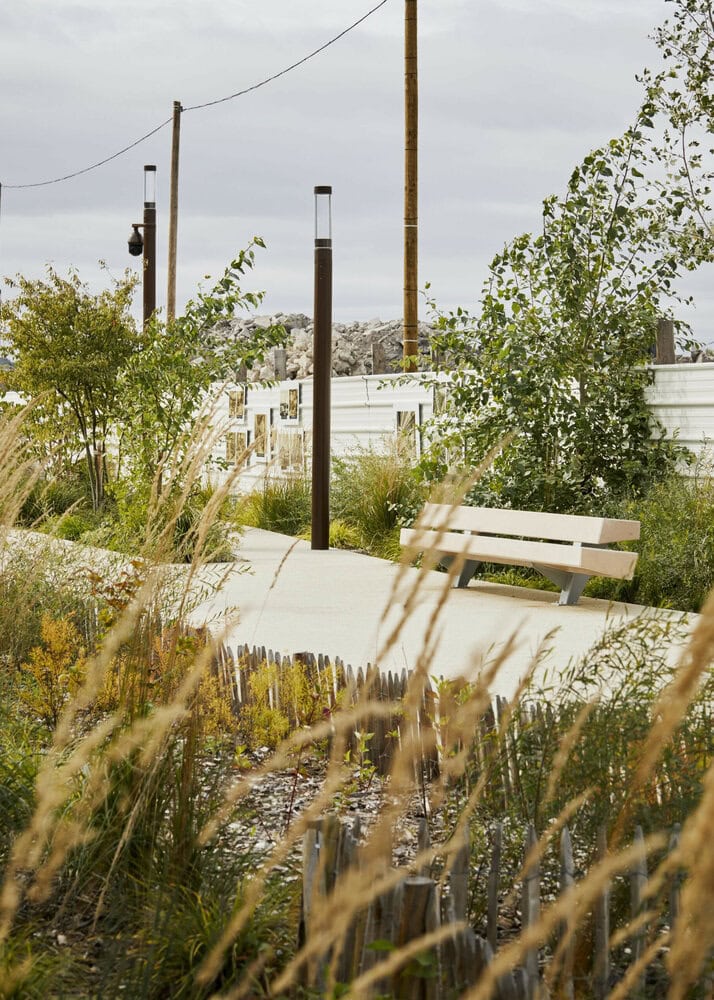

Zac Ec'Eau Port
Creil, France

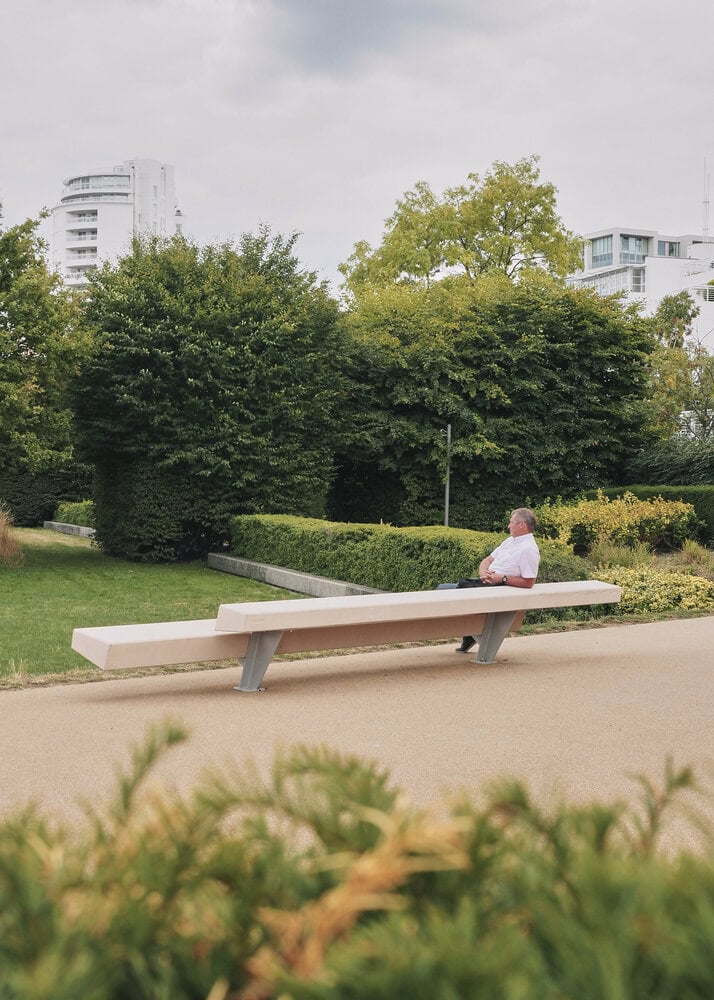

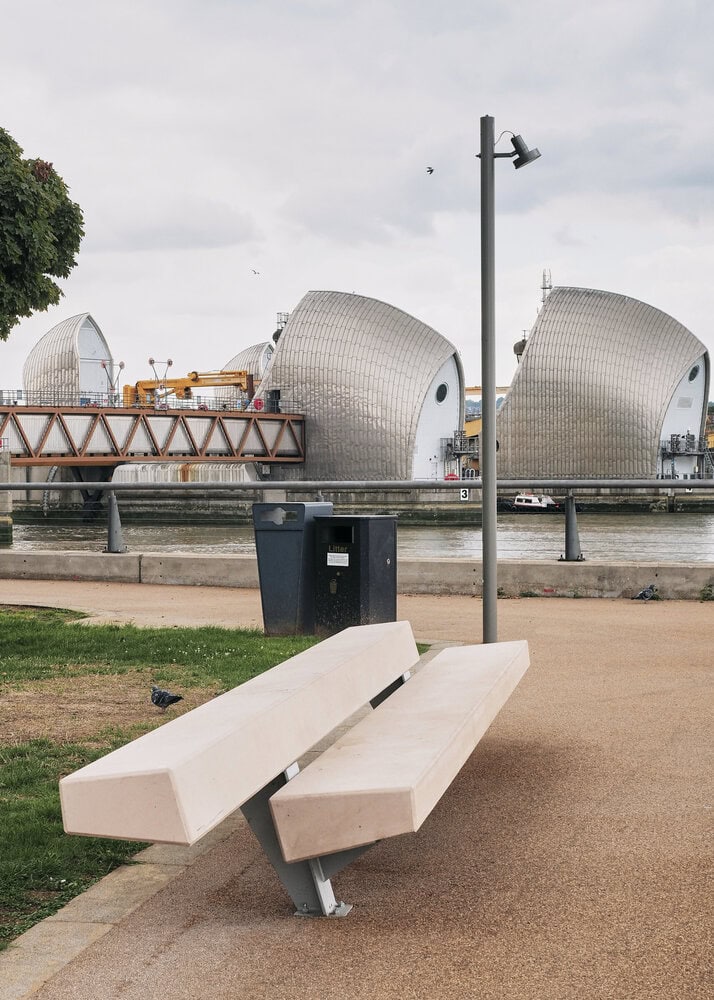

The Royal Docks
London, England, UK

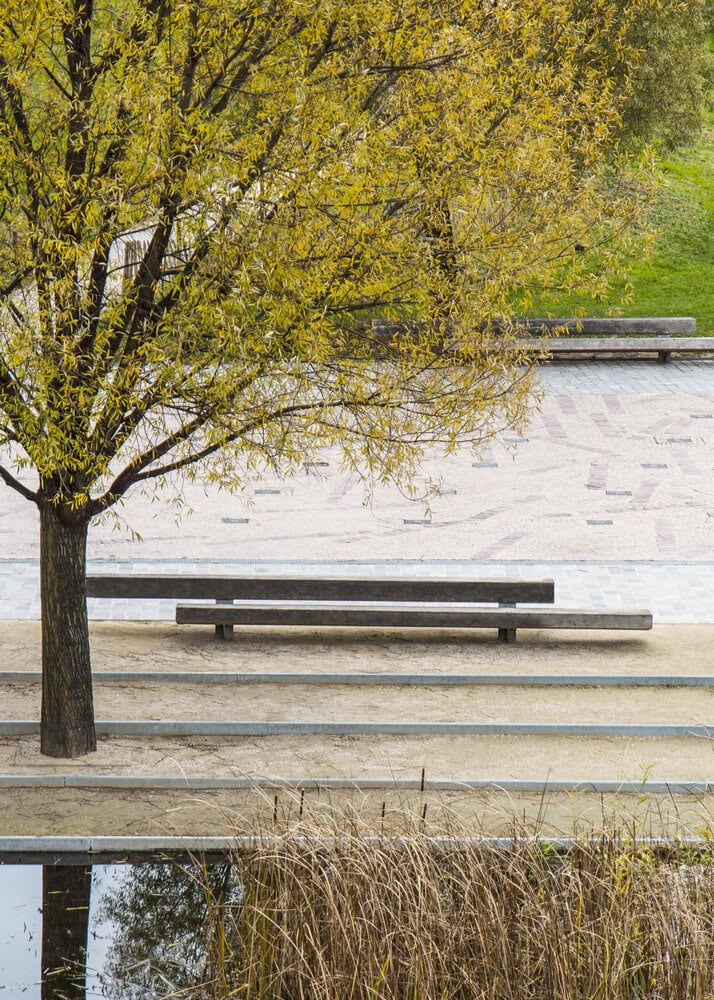

Clichy Batignolles Martin-Luther-King park
Paris, France
