Moon
An urban bench with architectural shapes and straight lines; the epitome of pure function. The Moon bench is designed to create extensive platforms in a line, which easily fit in with the rest of the landscape elements and promote rest in walking areas.
Rest built into the landscape

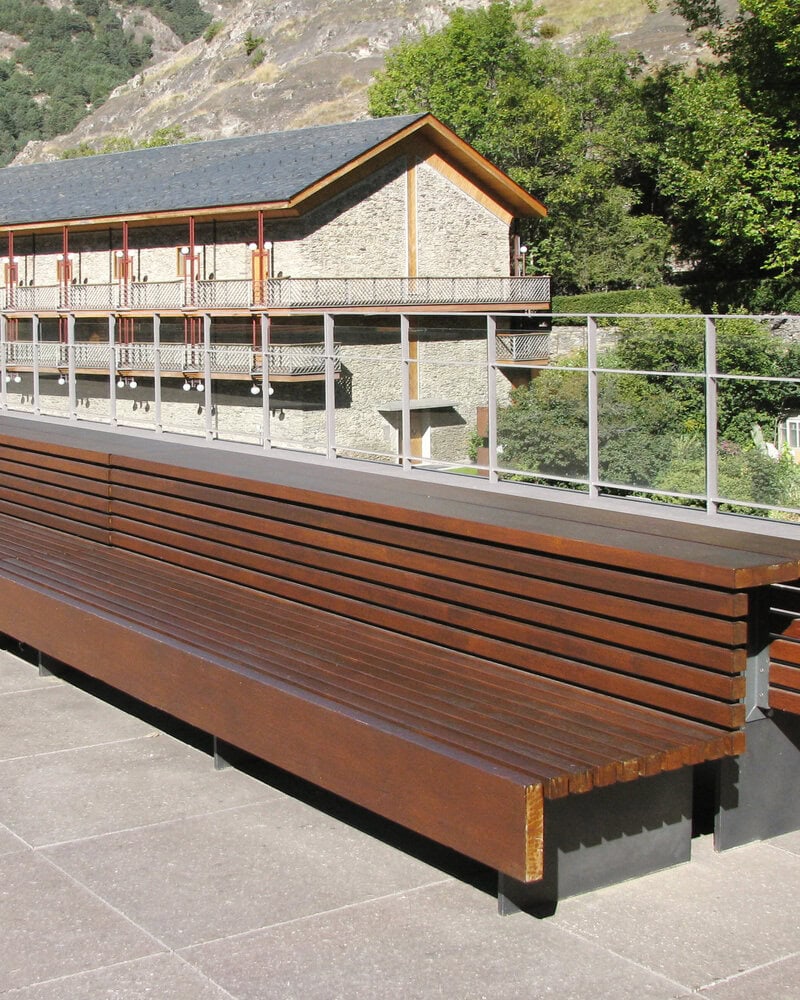

With essential lines and careful selection of materials that are weather resistant, the Moon bench integrates into the pavement or into low walls. It is associated with the development of the landscape, providing rest surfaces that promote meeting spaces, with or without a backrest.
- Structure made from cast iron and hot-dip galvanized S235 JR steel profiles, painted finish.

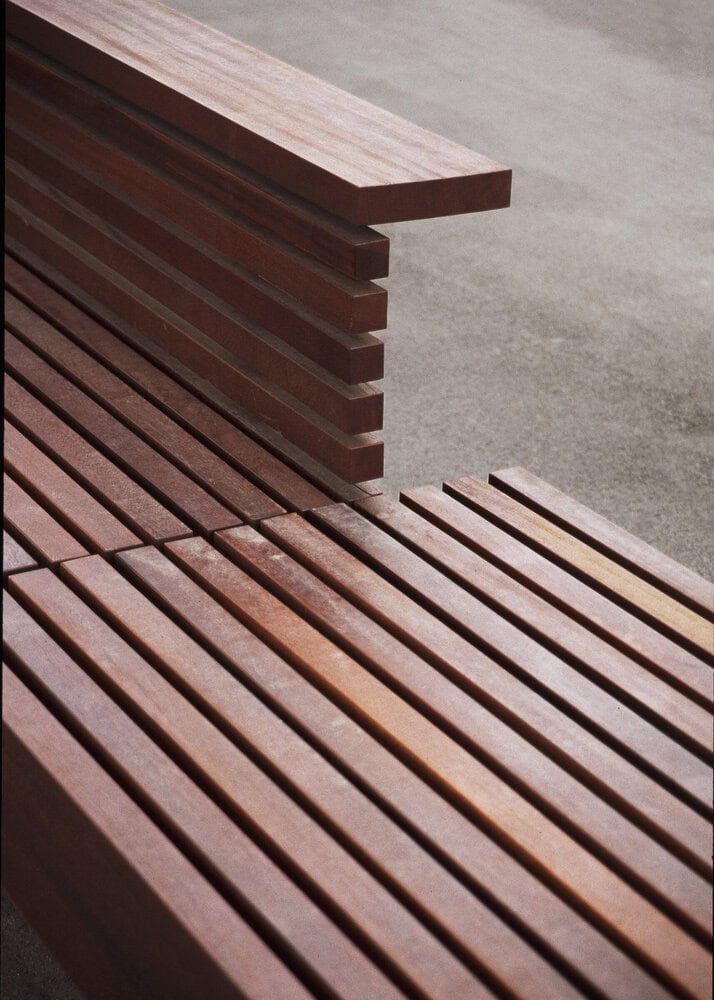

- Seat and backrest made from tropical wood slats of 45 x 45 mm and 45 x 200 mm at the ends with 100% FSC Certification, protected with a single coat of oil.
- A2 stainless steel screws.
Tropical FSC 100%
The colours shown are purely indicative.
Other colours are available upon request.
Check finishes for marine environments.
- Installation using two zinc-plated M10x120 bolts per support structure, inserted into holes made in the pavement in advance, filled in with epoxy resin, quick cement or similar.
- The element is supplied disassembled, in two components: structure and slats.
- Installation and assembly instructions, screws, and bolts included.
- Does not require maintenance, except to preserve the original color of the wood.
CE
FSC
The bench is the quintessential element in the urban setting. It permits rest, conversation, gazing at views, while adding quality to the public space. A backrest to provide greater comfort, with or without armrests to help users get up, made from use-resistant materials and finishes.
Weight
1,80 m without backrest: 114
3,00 m without backrest: 131
Armrest for bench without backrest: 3,8
1,80 m with backrest: 132
3,00 m with backrest: 167
Armrest for bench with backrest: 2,7
*Approximate weight without packaging (kg)
The bench on a low wall provides a rest surface, with or without backrest, for attaching to a space-defining element, enabling the integration of rest zones into the landscape in projects with complex programs.
Weight
1,80 m without backrest on low wall: 58
3,00 m without backrest on low wall: 95
Armrest for bench without backrest: 3,8
1,80 m with backrest on low wall: 88.5
3,00 m with backrest on low wall: 145
Armrest for bench with backrest: 2,7
*Approximate weight without packaging (kg)
Aligned rest elements are essential for defining this space-creating function. Continuity in the composition facilitates social relations and encourages interweaving of narratives in city life.
Weight
1,80 m without backrest: 114
3,00 m without backrest: 131
1,80 m with backrest: 132
3,00 m with backrest: 167
1,80 m without backrest on low wall: 58
3,00 m without backrest on low wall: 95
1,80 m with backrest on low wall: 88.5
3,00 m with backrest on low wall: 145
Armrest for bench without backrest: 3,8
Armrest for bench with backrest: 2,7
*Approximate weight without packaging (kg)
Moon in the city

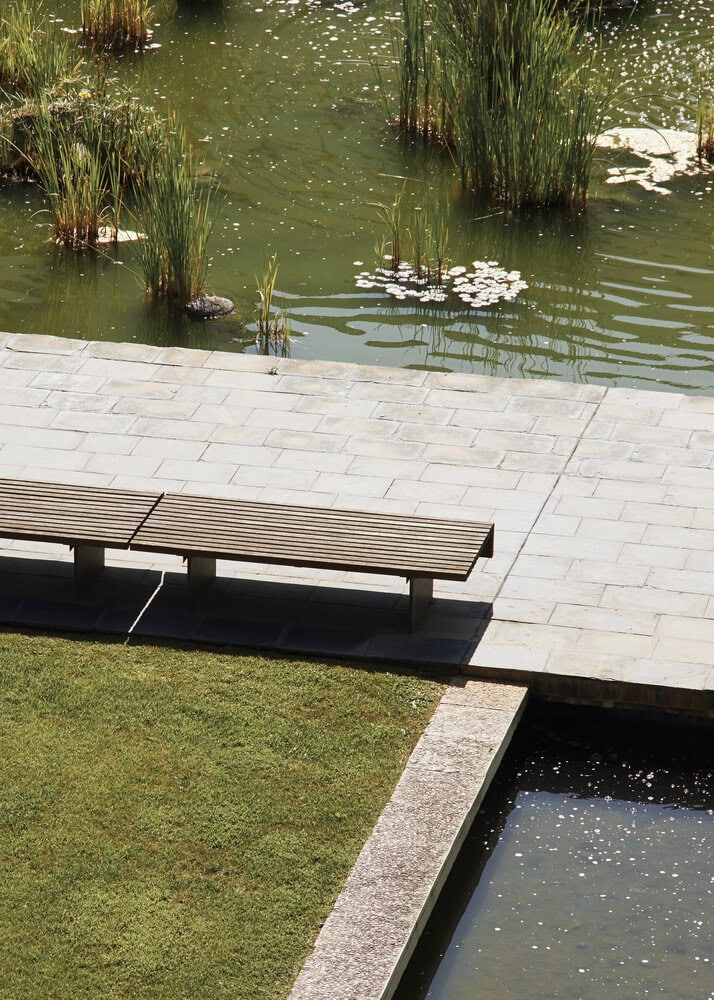

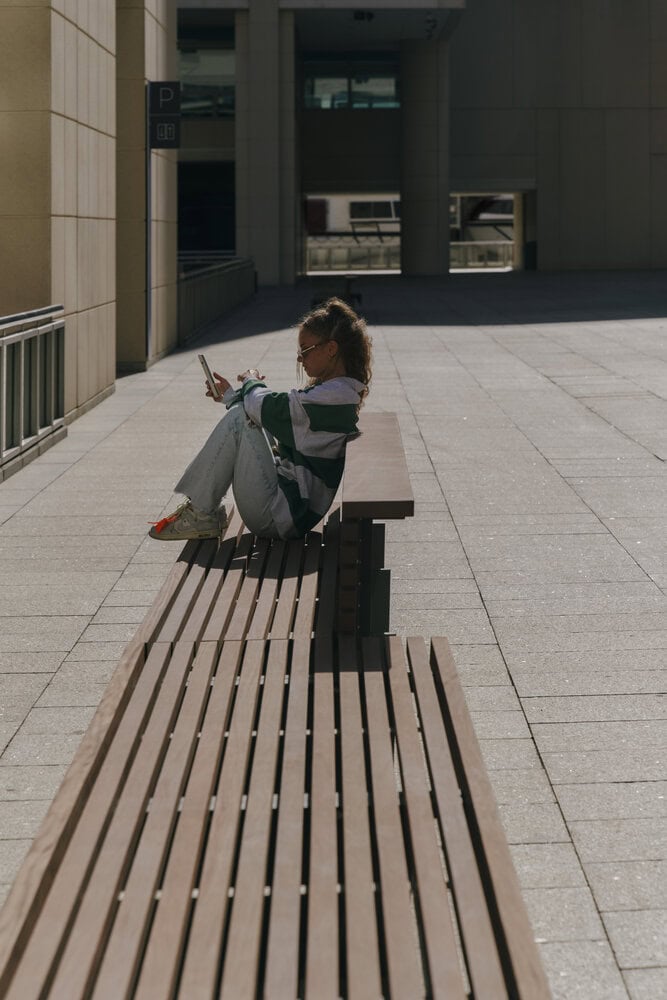

World Trade Center
Barcelona, Spain

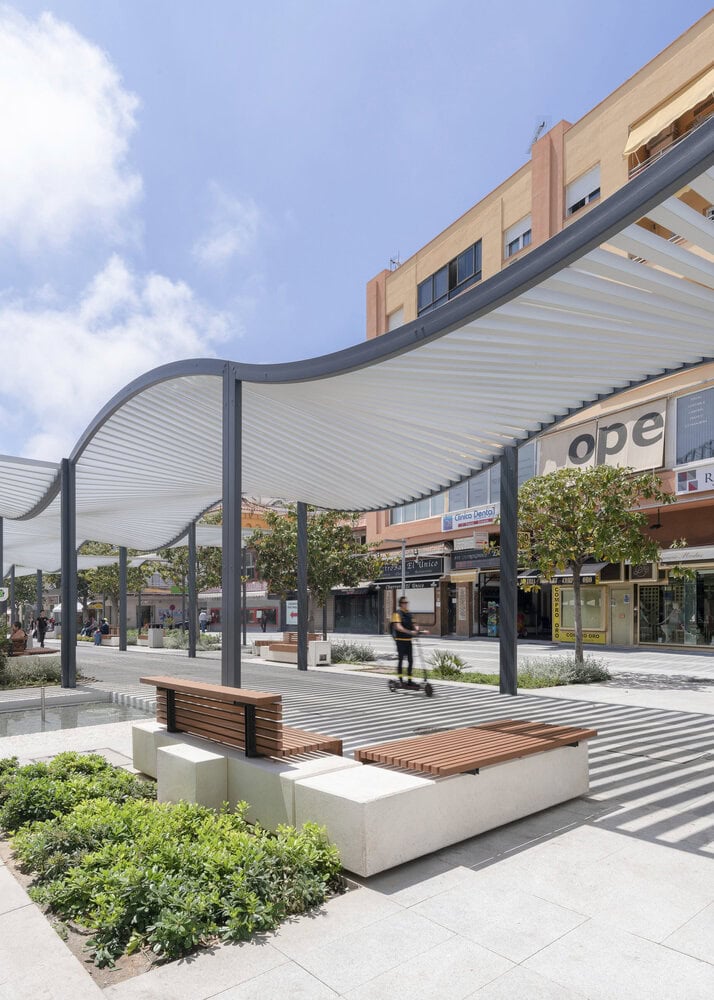

Plaza Costa del Sol
Torremolinos, Spain

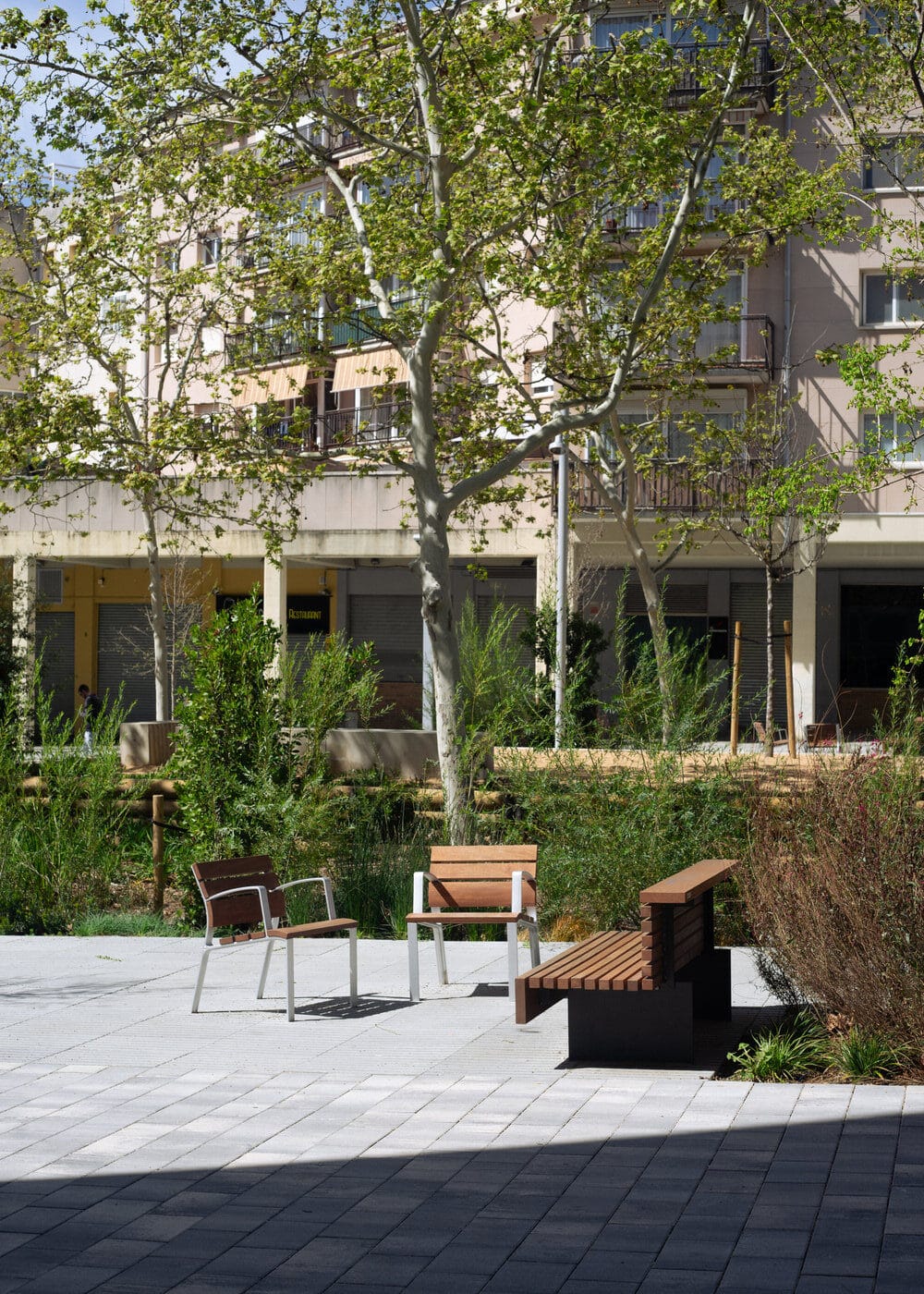

Rambla de la Girada
Vilafranca del Penedès, Spain

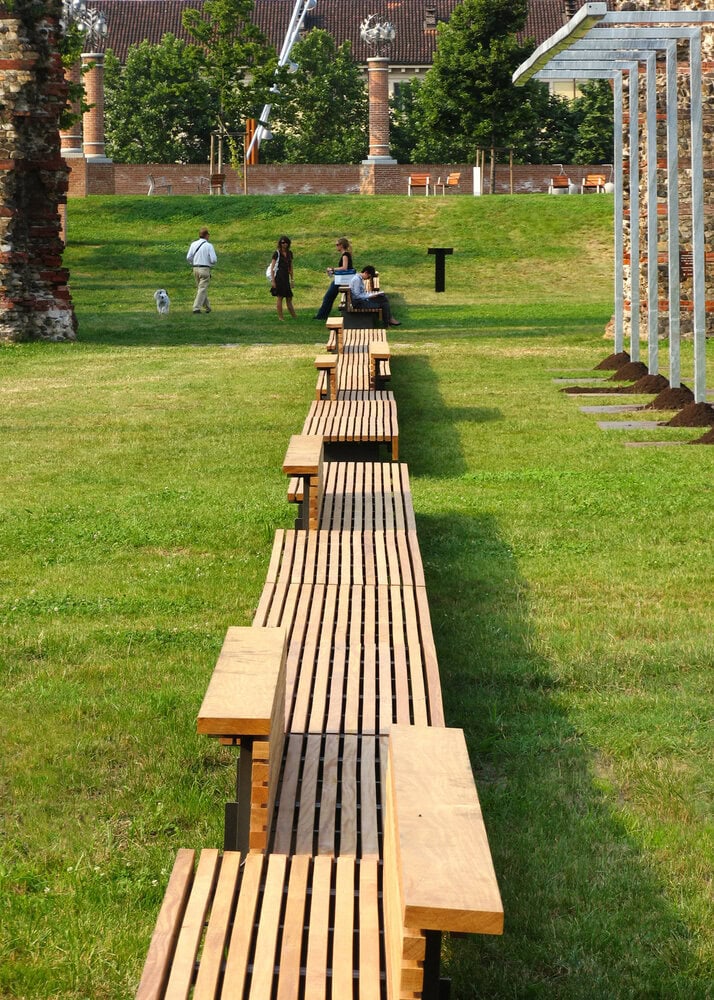

Porta Palatina
Turin, Italy

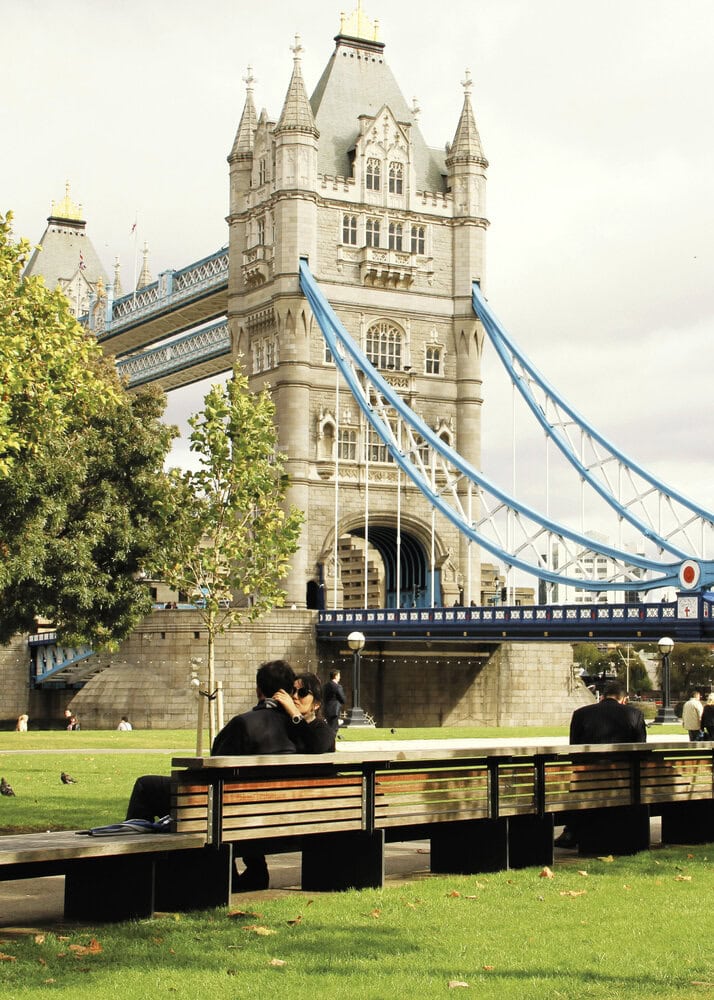

Potters Field Park
London, England, UK
