Miguel y Gonzalo Milá, father and son, undertook the difficult task of designing an urban bench that would be transported flat and disassembled; formally humble, multi-cultural, very comfortable, with an economy of expression. A global bench that is easy to assemble and install, and that is economic, simple and comfortable.

An extensive family

The result is the Harpo bench. A wide family, composed of four types of seat: a bench, a stool, a chair, and a long profile deckchair. The Harpo urban bench provides different seating forms, inviting contemplation and serenity.

  • Bench and stool structure made from die cast EN‑AC‑51100 AG3 aluminum, anodized finish.
  • Chaise longue and longue chair structure made from a platen of hot-dip galvanized S235 JR steel, thermal coating finish with C3 anti-corrosive protection.
  • Seat and backrest made from 90 x 30 mm European heat‑treated pine wood slats with 100% PEFC Certification, or tropical wood slats with 100% FSC Certification, protected with a single coat of oil, or extruded 6063‑T5 aluminum slats, anodized finish.
  • A2 stainless steel screws.

Slats

Tropical FSC 100%
Pine 100% PEFC
Aluminium anodised

Thermo-treated European pine with 100% PEFC certification.

The colours shown are purely indicative.
Other colours on request.
Ask about finishes for marine environments.

Structure

AG3 anodised
  • Installation of bench and stool using two zinc-plated M10x120 bolts per support structure, inserted into holes made in the pavement in advance, filled in with epoxy resin, quick cement or similar.
  • Installation of chaise longue and longue chair using two fixing wall plugs per supporting structure.
  • The element is supplied disassembled, in two components: structure and slats. Installation and assembly instructions, screws, and fixing bolts or wall plugs included.
  • Does not require maintenance, except to preserve the original color of the wood.

CE

FSC

PEFC

Cradle to Cradle

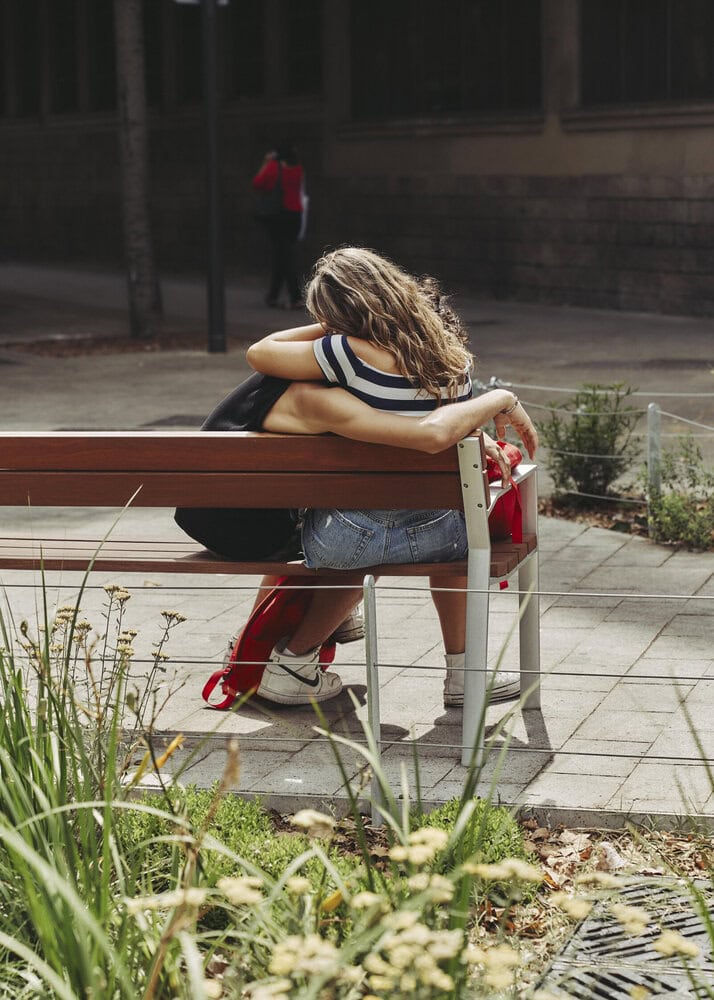

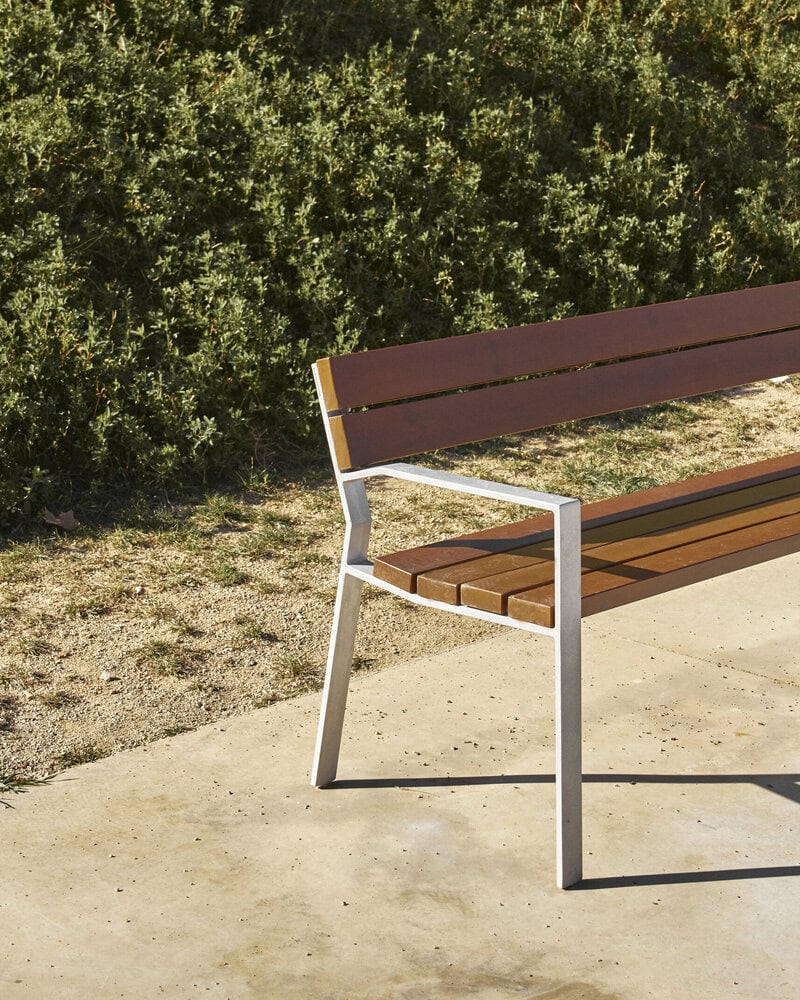

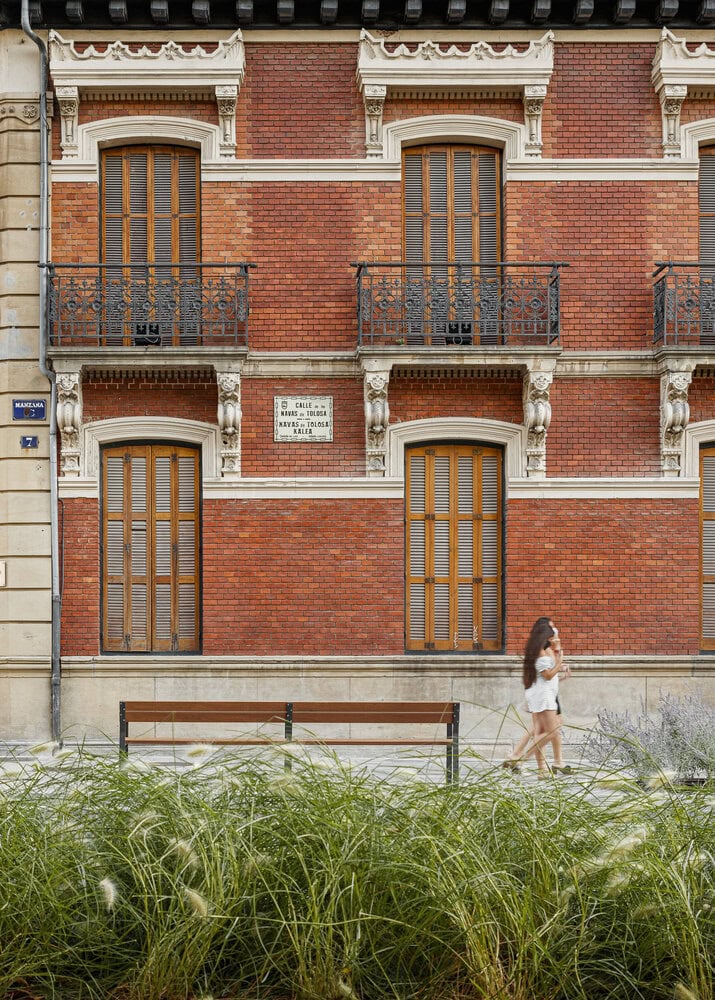

The bench is the quintessential element in the urban setting. It permits rest, conversation, gazing at views, while adding quality to the public space. A backrest to provide greater comfort, with or without armrests to help users get up, made from use-resistant materials and finishes.

Weight

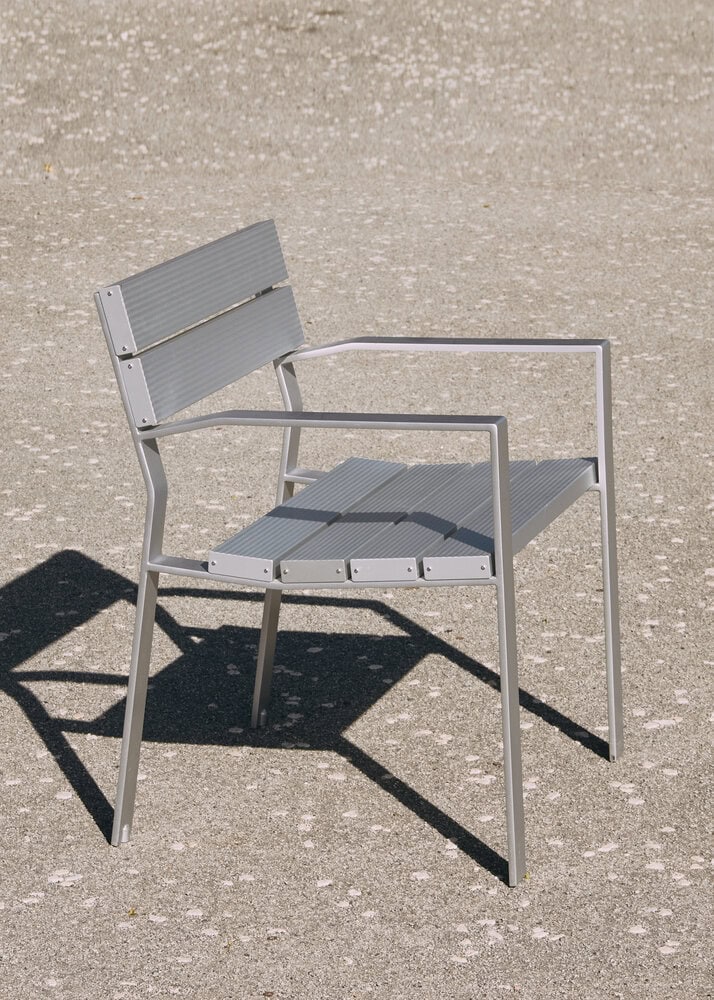

0,60 m Chair
Aluminum: 16
Tropical Wood: 18
European Wood: 14

1,75 m Bench
Aluminum: 28
Tropical Wood: 35
European Wood: 25

3,00 m Bench
Aluminum: 44
Tropical Wood: 66
European Wood: 37

*Approximate weight without packaging (kg)

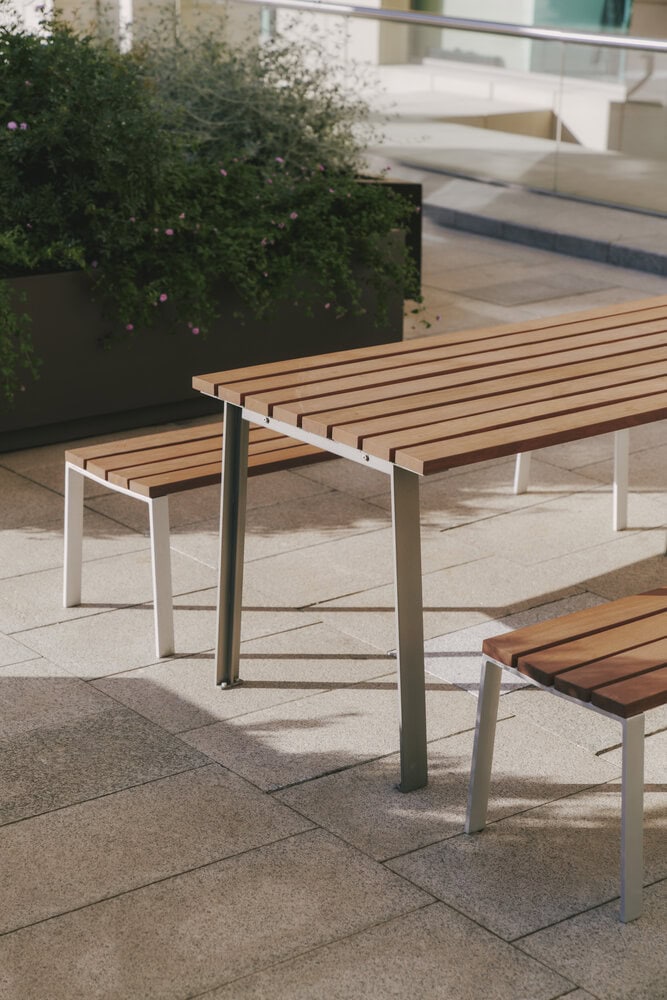

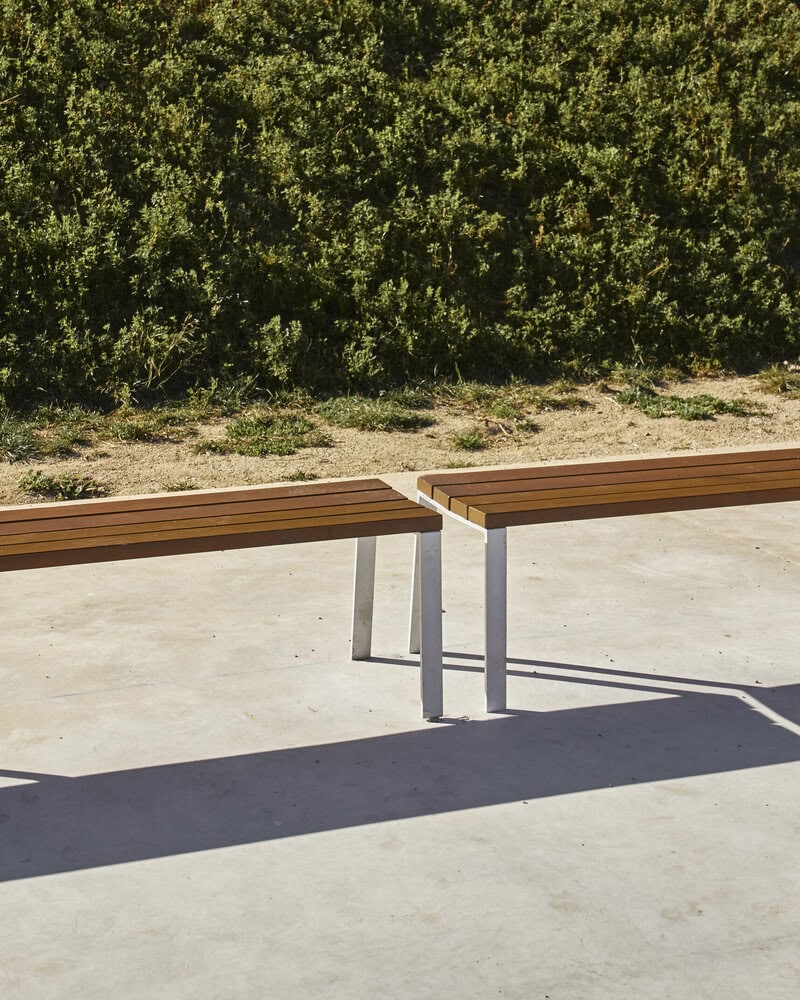

The banquette is a second essential element in the urban space. Without a backrest, it is useful for areas with work surfaces or tables, or to create areas of more fleeting rest.

Weight

0,60 m Banquette
Aluminum: 11
Tropical Wood: 13
European Wood: 8

1,75 m Banquette
Aluminum: 22
Tropical Wood: 30
European Wood: 19

3,00 m Banquette
Aluminum: 37
Tropical Wood: 58
European Wood: 22

*Approximate weight without packaging (kg)

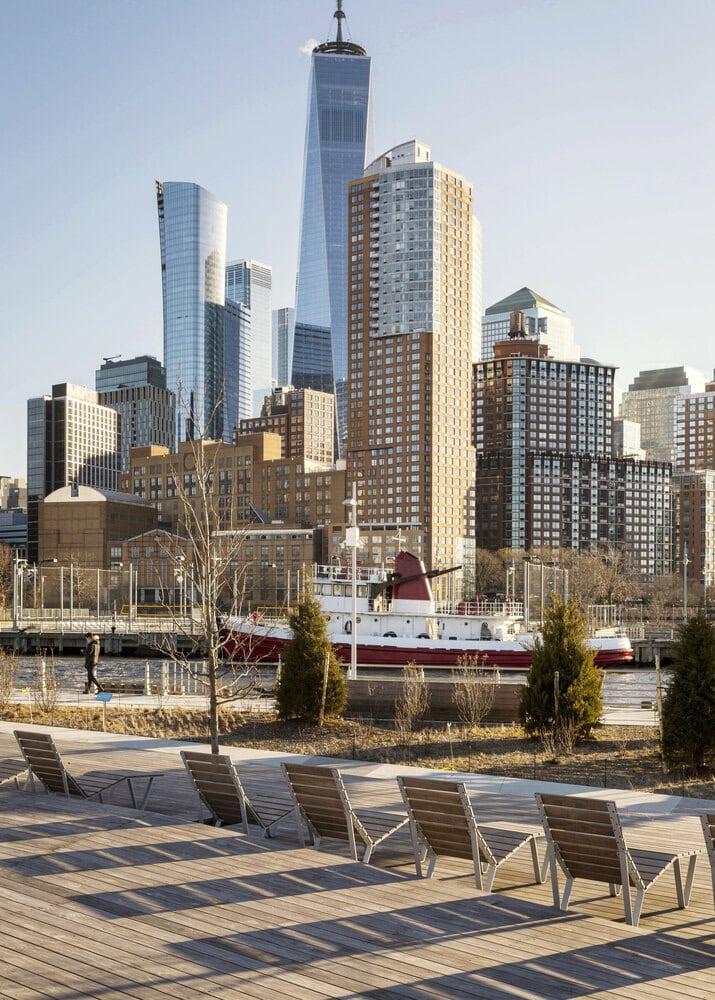

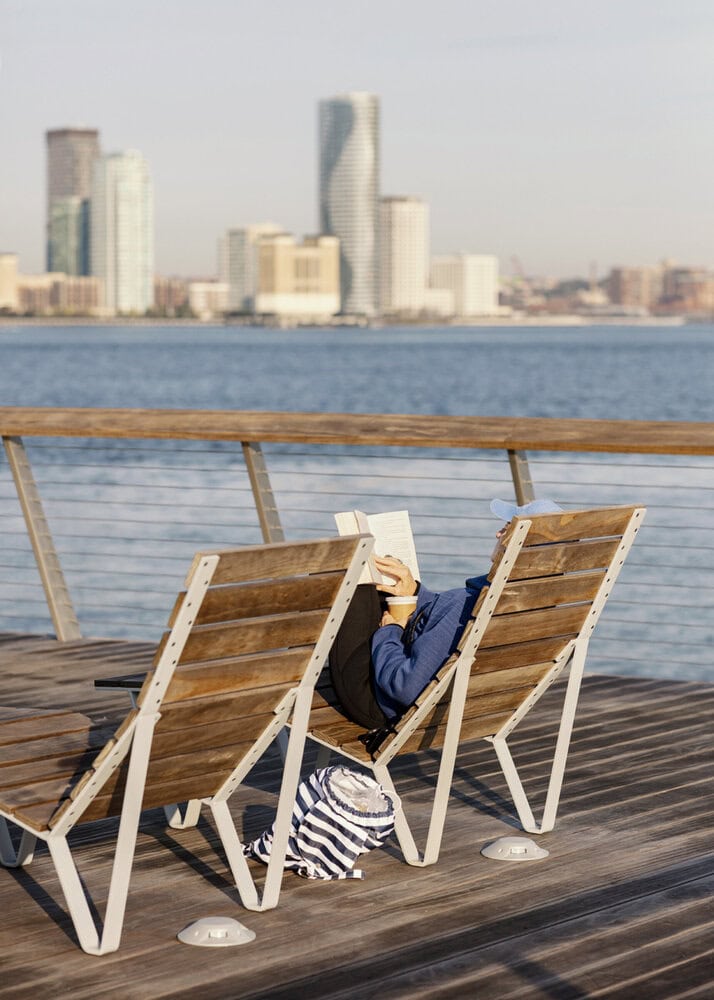

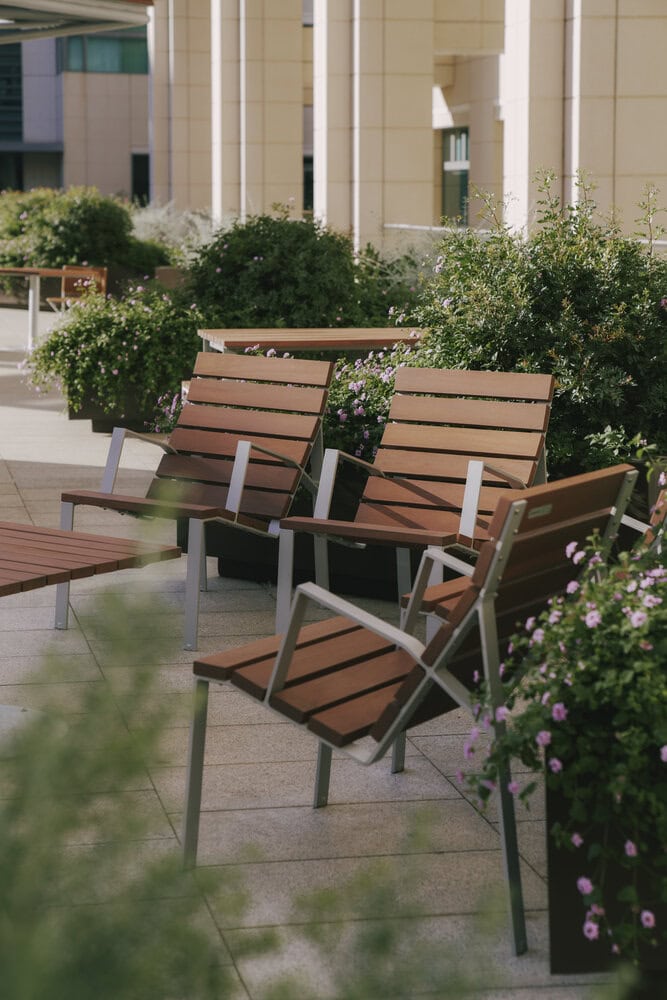

The lounge chair is an armchair for the outdoors. With a more pronounced incline, it provides greater comfort than a bench.

Weight

0,60 m Lounge Chair
Tropical Wood: 40,5

1,20 m Lounge Chair
Tropical Wood: 56,5

*Approximate weight without packaging (kg)

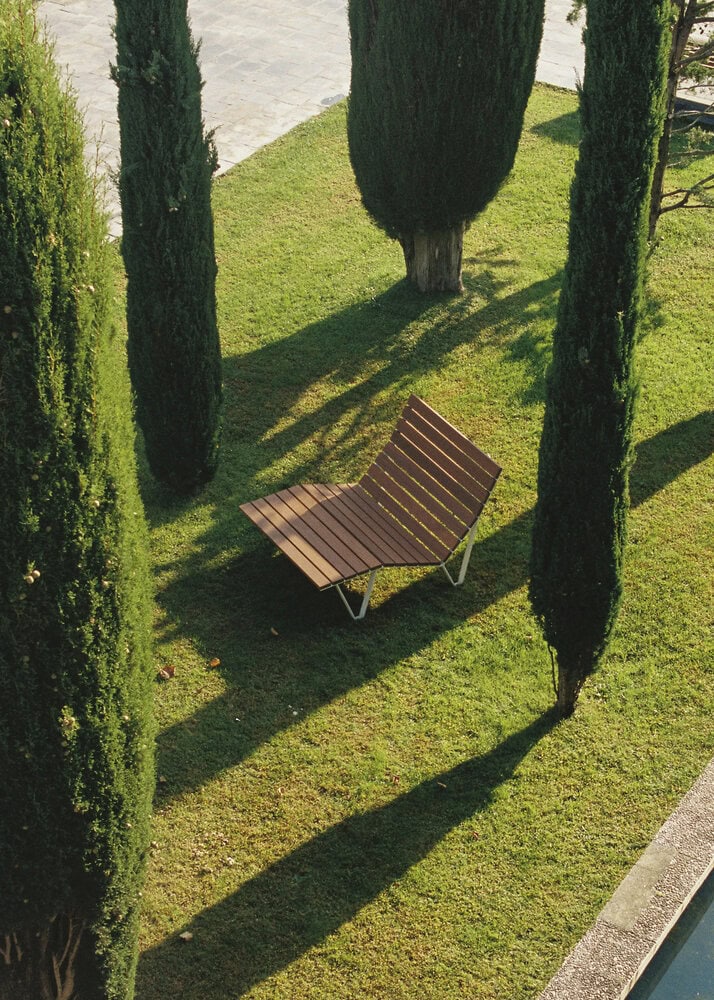

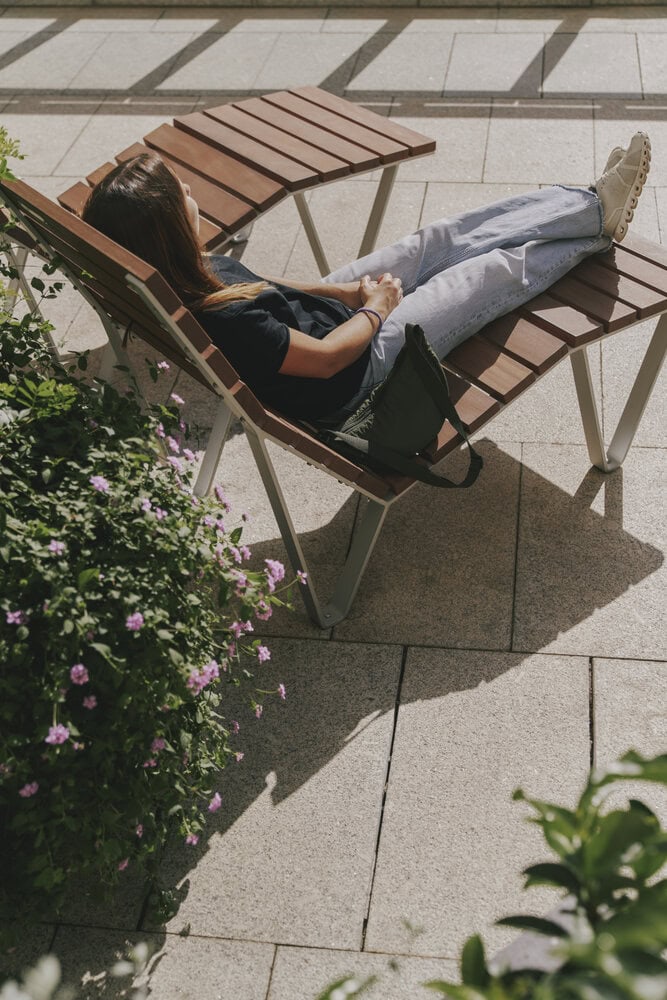

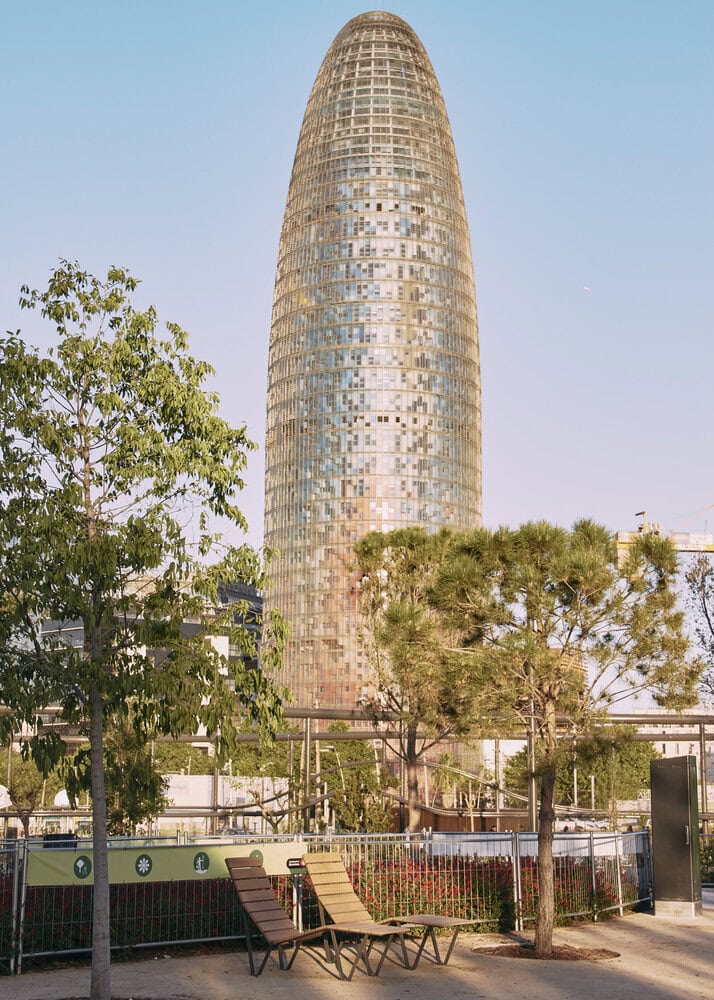

The chaise longue is designed for lying down and enjoying the surroundings. Available in different sizes, it is ideal for parks, green areas and private spaces.

Weight

0,60 m Chaise Longue
Tropical Wood: 58

1,20 m Chaise Longue
Tropical Wood: 87

*Approximate weight without packaging (kg)

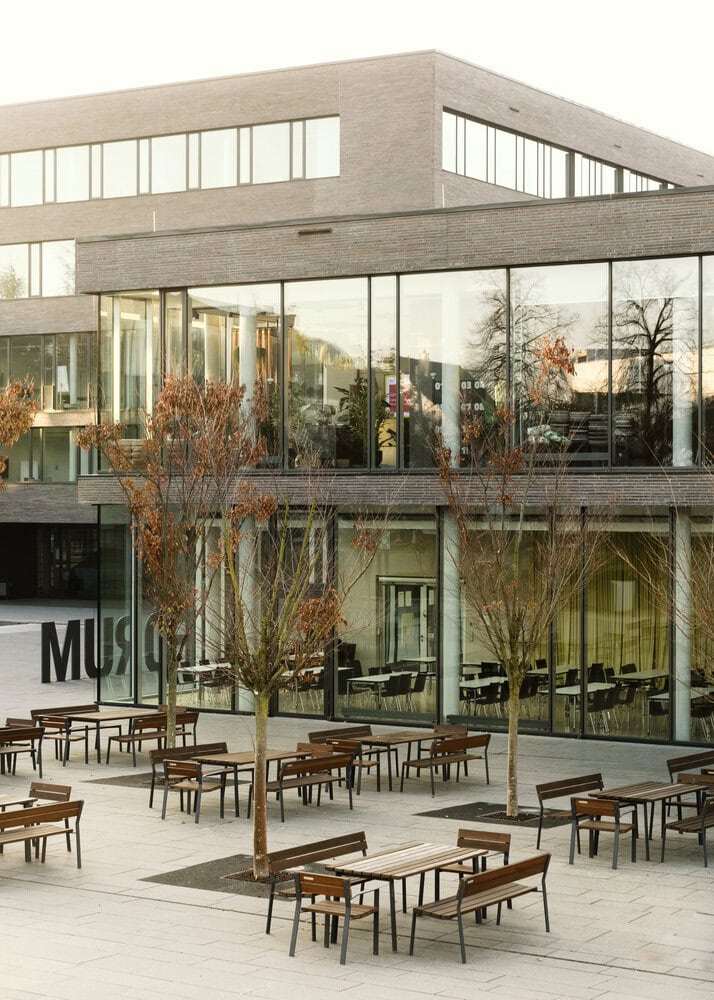

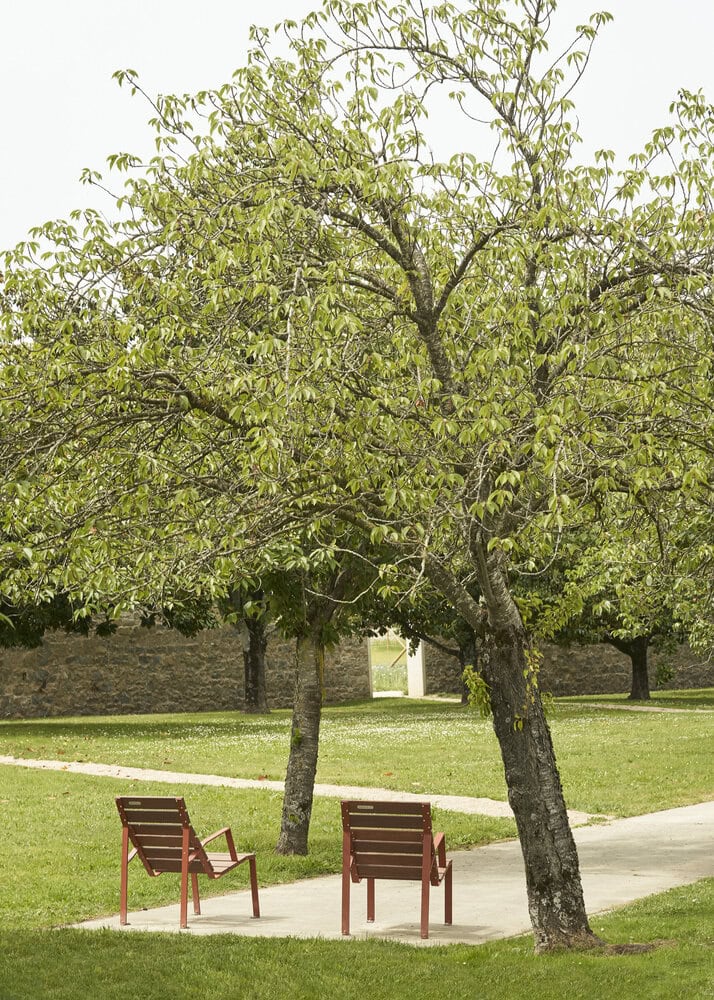

Harpo in the city
