Bancal
The Bancal bench forms extensive lines of seating, where humility takes precedence over any rhetorical manifesto. Composed of elements with minimal formal expression and increased communal function, a sheet of folded steel shapes the structure, with the seat and backrest being composed of solid wooden slats.
Modular and robust
A simple, efficient urban bench, designed for interaction scenarios, and for withstanding extreme uses. The possibility of alternating or aligning backrests allows for the creation of everyday settings that reinforce social wellbeing, while the superior materials withstand the demands of the urban space.
- Structure created using a 6 mm sheet of hot-dip galvanized S235 JR steel, thermal coating finish with C3 anti-corrosive protection.
- Seat and backrest made from tropical wood slats with FSC 100% Certification, 50/65 x 160 mm, protected with a single coat of oil.
- Optional armrests made from AISI304 stainless steel.
- A2 stainless steel screws.
Tropical FSC 100%
The colours shown are purely indicative.
Other colours are available upon request.
Check finishes for marine environments.
- Installation using two zinc-plated M10x120 bolts per support structure, inserted into holes made in the pavement in advance, filled in with epoxy resin, quick cement or similar.
- The element is supplied assembled. Installation and assembly instructions, screws, and bolts included.
- Does not require maintenance, except to preserve the original color of the wood.
CE
FSC

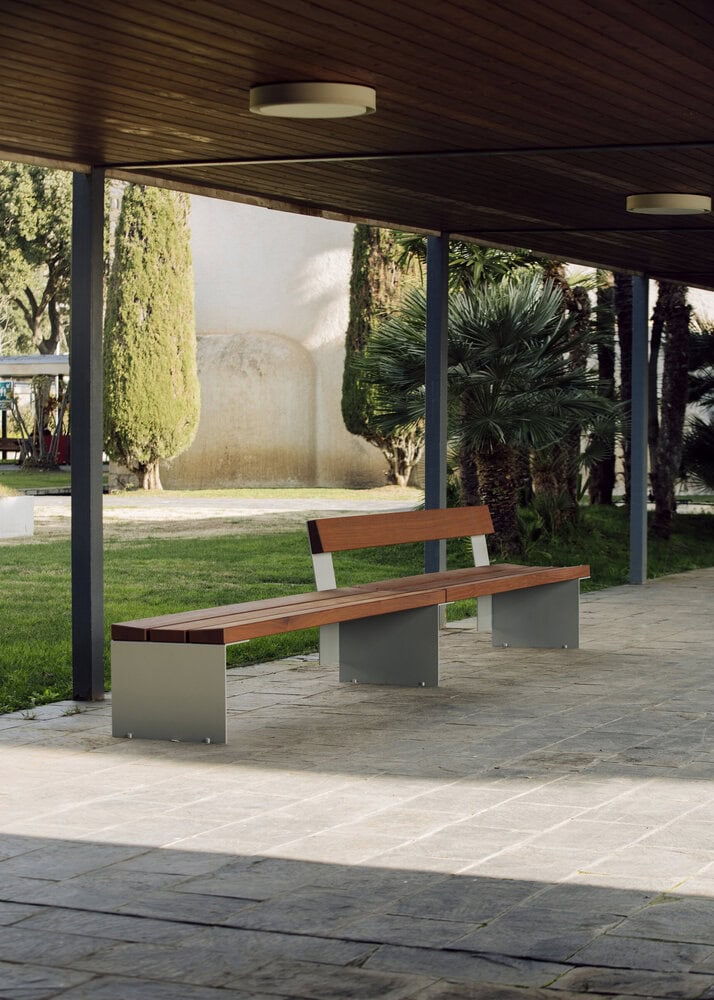

The bench is the quintessential element in the urban setting. It permits rest, conversation, gazing at views, while adding quality to the public space. A backrest to provide greater comfort, with or without armrests to help users get up, made from use-resistant materials and finishes.
Weight
One segment with backrest: 110
Armrest: 4
*Approximate weight without packaging (kg)

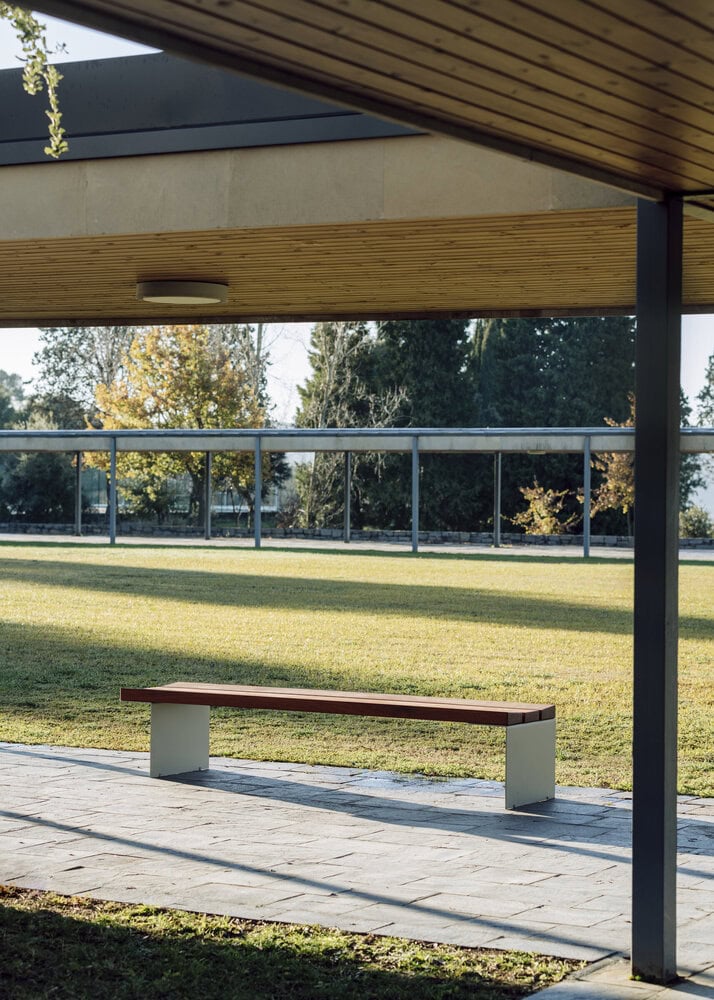

The banquette is a second essential element in the urban space. Without a backrest, it is useful for areas with work surfaces or tables, or to create areas of more fleeting rest.
Weight
One segment without backrest: 80
Armrest: 4
*Approximate weight without packaging (kg)

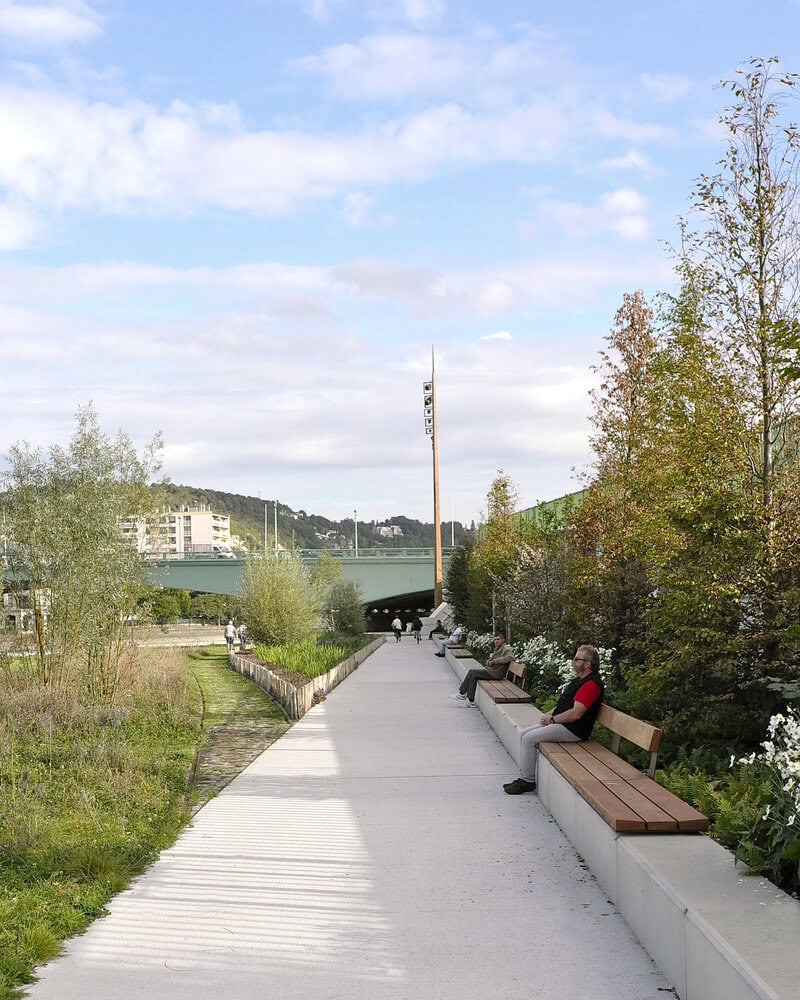

The bench on a low wall provides a rest surface, with or without backrest, for attaching to a space-defining element, enabling the integration of rest zones into the landscape in projects with complex programs.
Weight
One segment without backrest on low wall: 68
One segment with backrest on low wall: 99
Two segments with one backrest on low wall: 115
*Approximate weight without packaging (kg)
Aligned rest elements are essential for defining this space-creating function. Continuity in the composition facilitates social relations and encourages interweaving of narratives in city life.
Weight
One segment without backrest: 80
One segment with backrest: 110
2 segments with 1 backrest: 184
3 segments with 2 inverted backrests: 284
3 segments with 3 backrests: 299
Armrest: 4
*Approximate weight without packaging (kg)
Downloads
Instructions
View Files
Drawings
3D Cad
BIM
IES Photometry
Bancal in the city

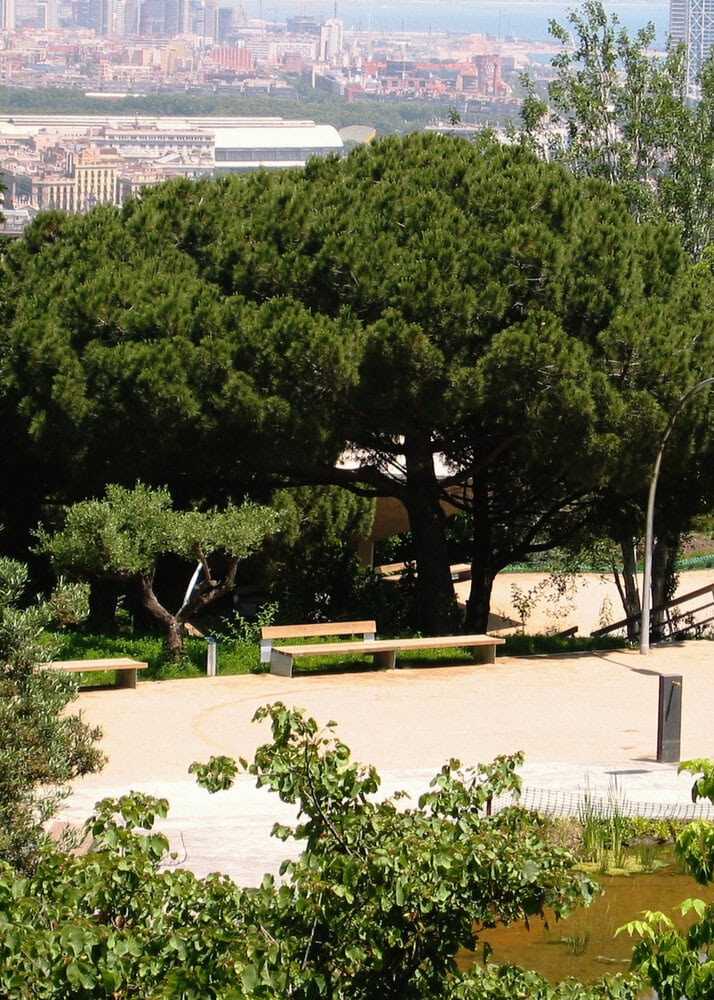

Joan Brossa park, Montjuic
Barcelona, Spain

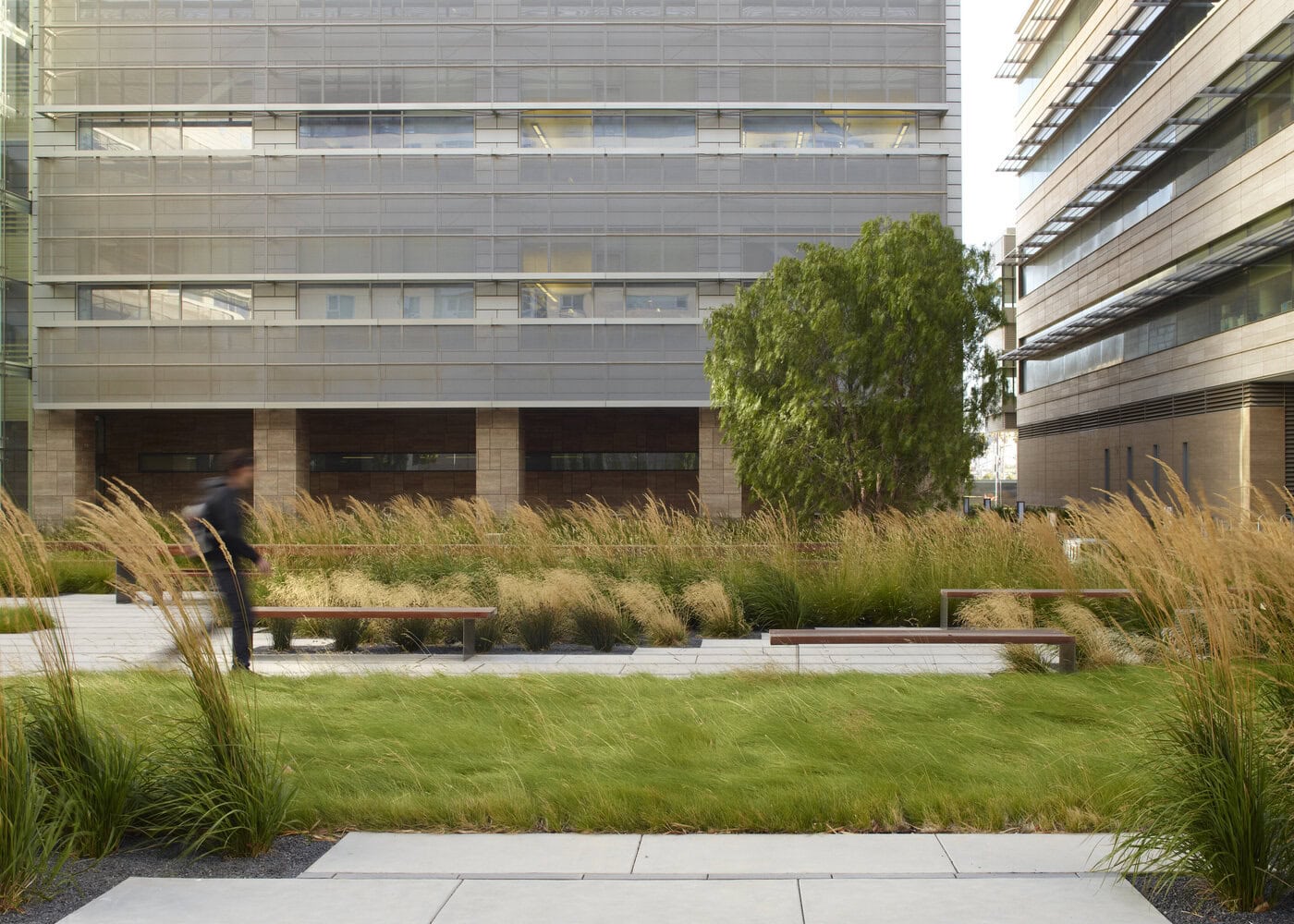

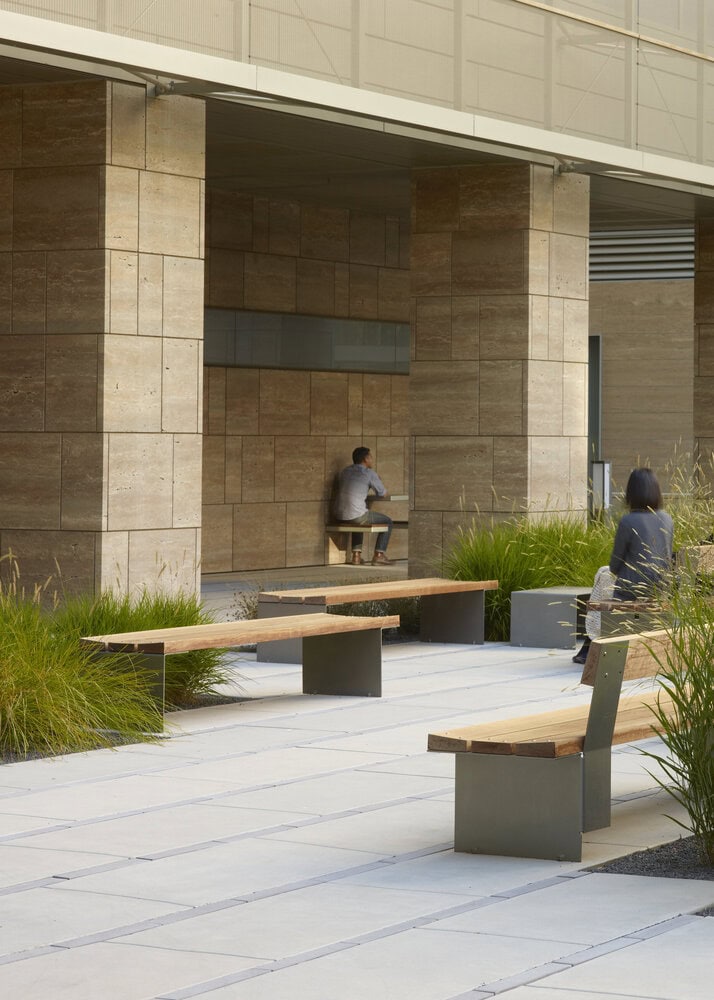

Cardiovascular Center, UCSF
San Francisco, CA, USA

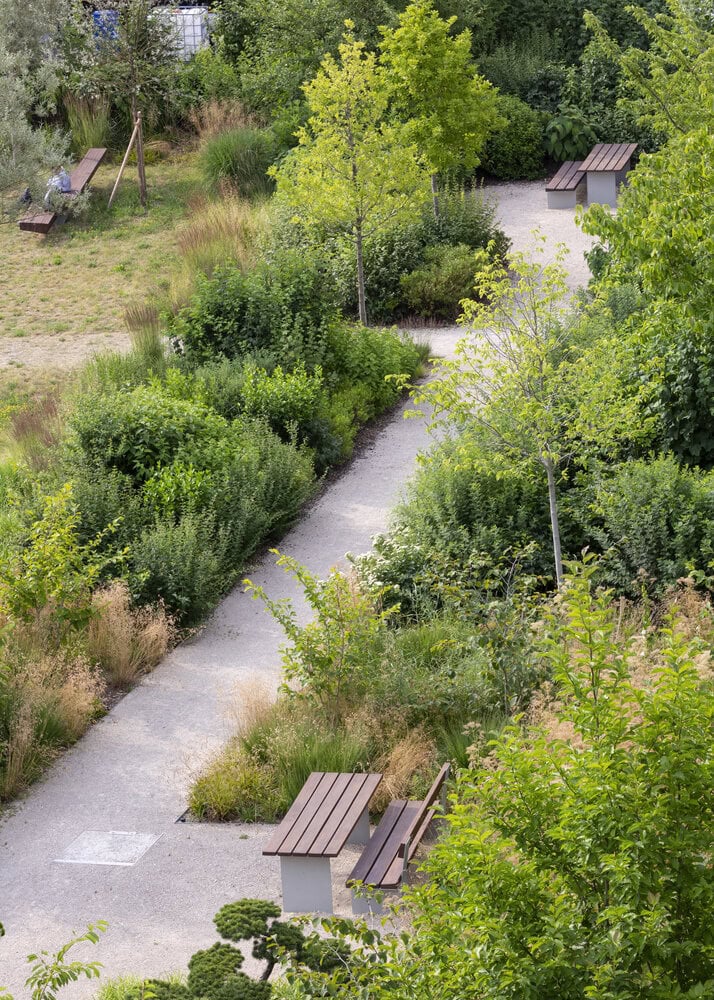

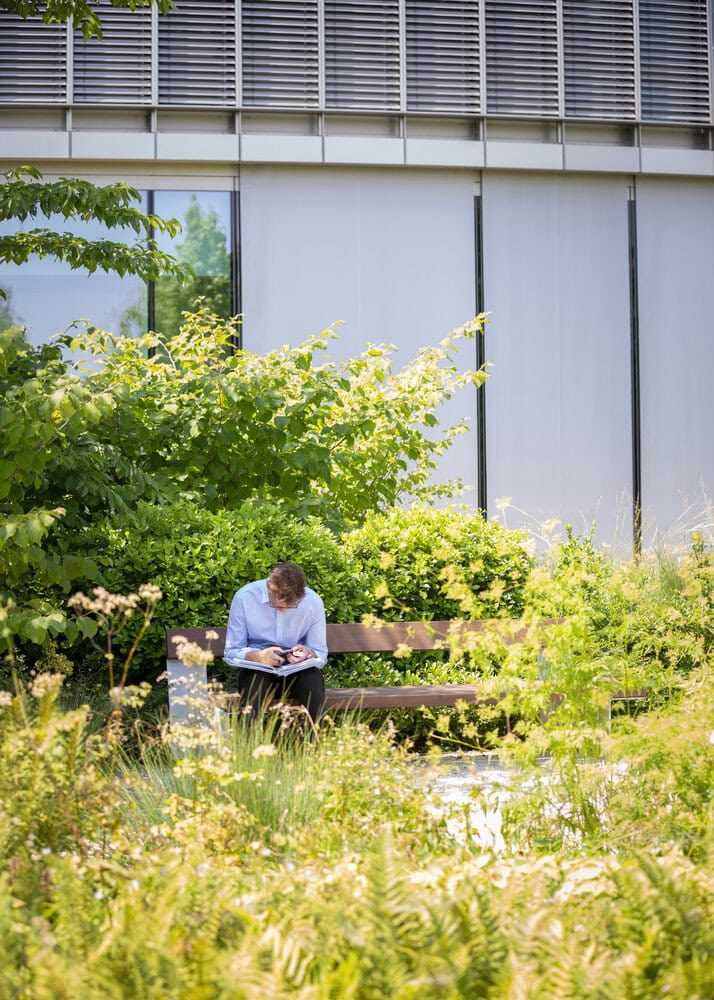

Outdoor Campus for Novartis North Park
Basel, Switzerland

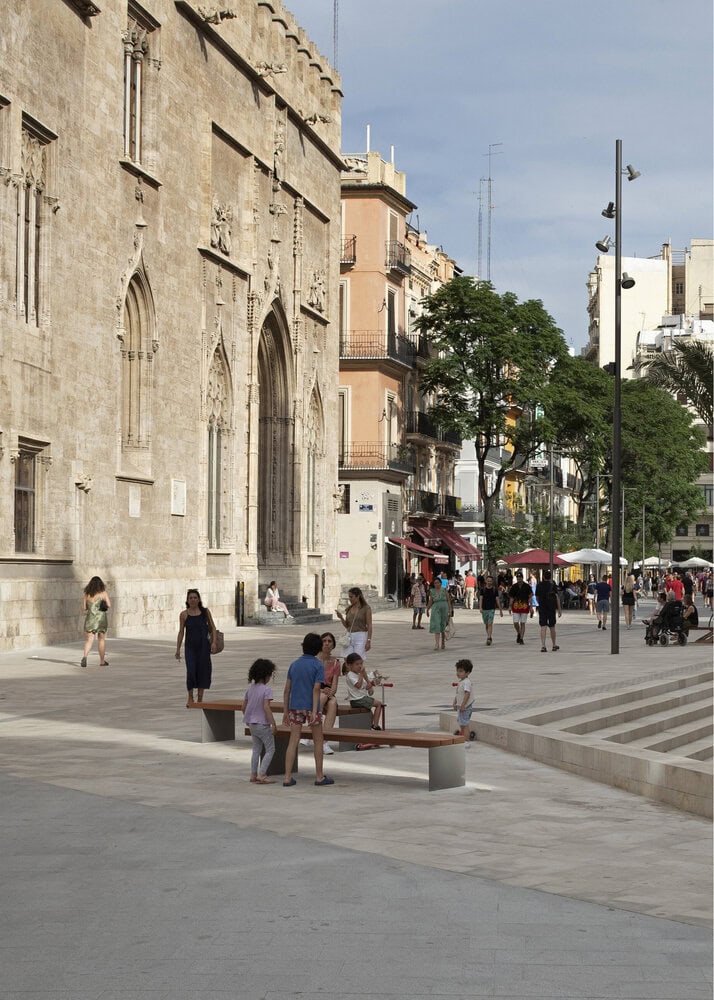

Development of the surroundings of the Central Market of Valencia
Valencia, Spain

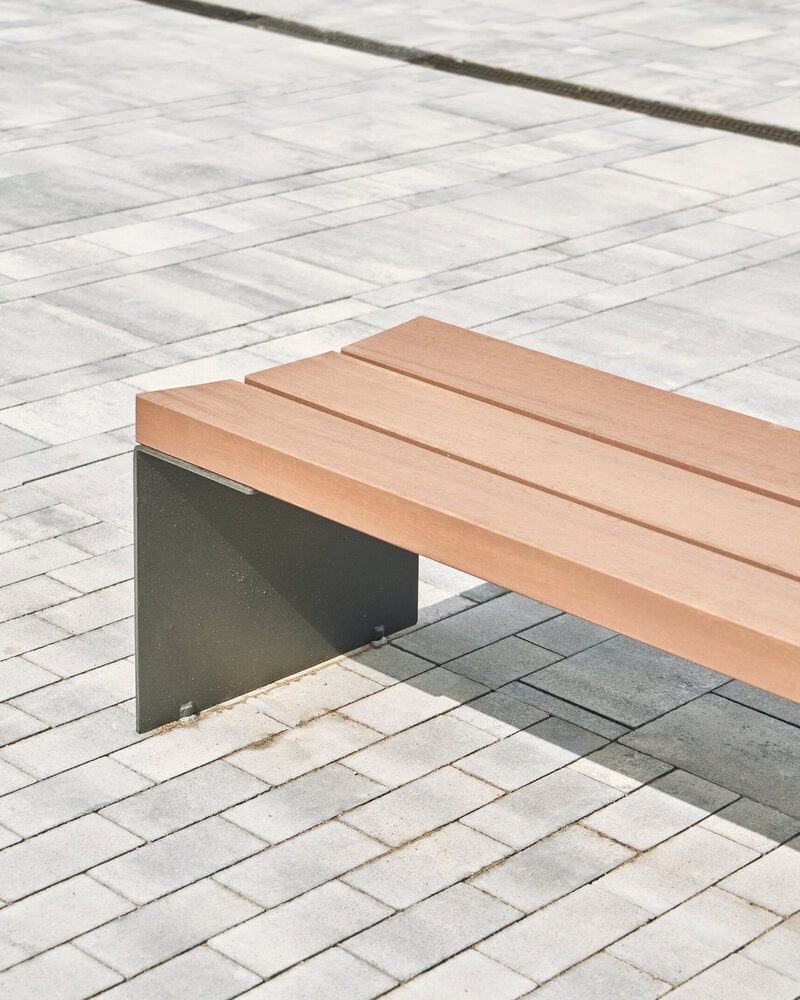

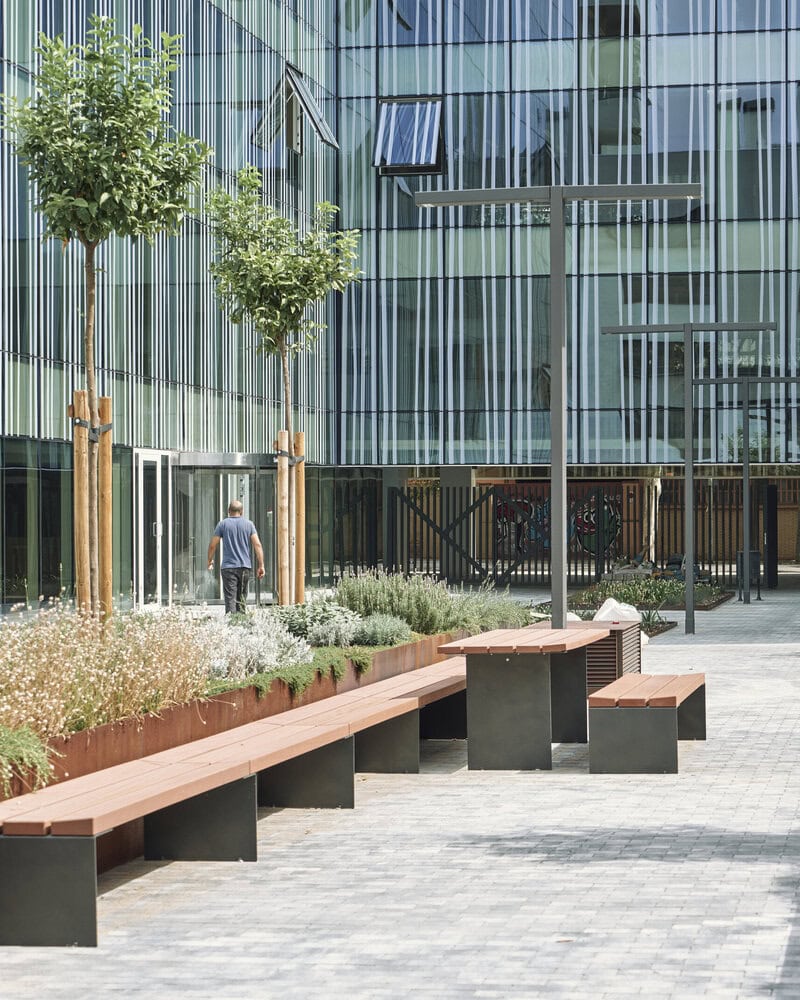

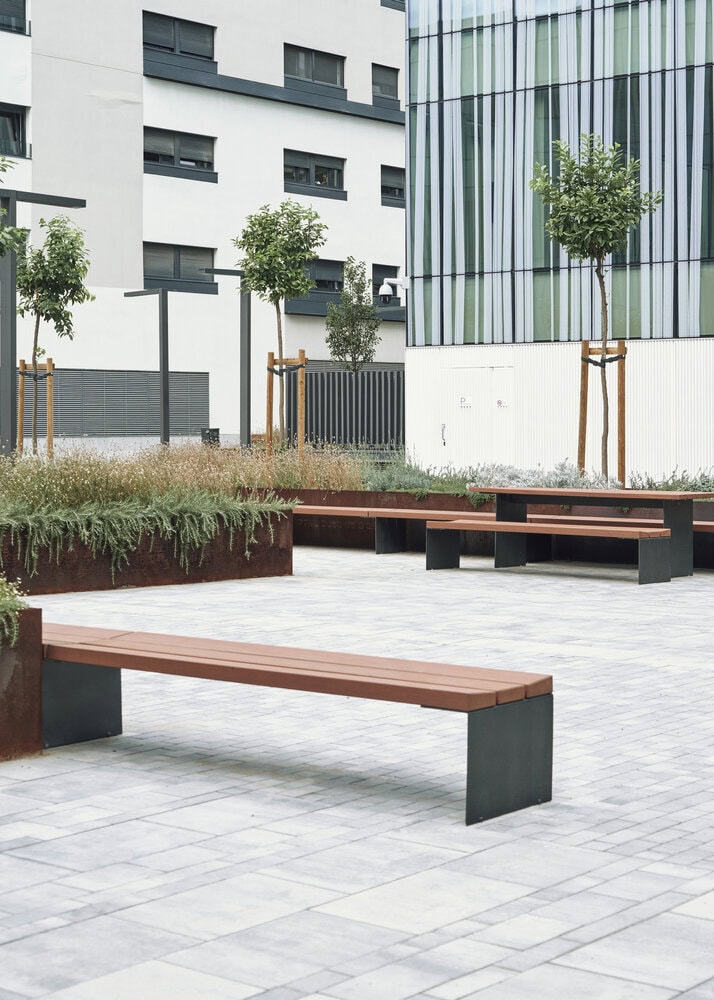

SelvaMar Business Campus
