The Arne S urban floodlight complements low-bay lighting. A reduced-size floodlight that is very useful for illuminating buildings, gardens or pathways, designed to respond to the needs of renaturalized urban spaces.
Small and flexible
With a great variety of adjustable supports for installation on columns, walls or catenaries, and a light that can be varied in terms of intensity, color, governance or degree of dispersion or concentration, the Arne S urban floodlight represents a flexible, energy efficient solution for highlighting the best paths or monuments. It also has two lighting alternatives: a technical one and a decorative one.
- Anodised injected aluminium EN-AC-44100 floodlight with powder-coated finish.
- Interior ABS-PC plastic reflector.
- Tempered optical glass diffuser.
- A2 stainless steel hardware and metal cable gland.
Light grey
Medium grey
Dark grey
The colours shown are purely indicative.
Other colours are available upon request.
Check finishes for marine environments.
System power (W)
High efficiency optical unit
- 8 LEDs 11W, 15W, 20W
- 12 LEDs 15W, 21W, 29W
- COB 19W, 27W, 37W
Operating current (mA)
- PCB: CE / UL – 350, 500, 700
- COB: CE – 350, 500, 700 / UL – 350, 500
Colour temperature (K)
- 4000 CRI min 80
- 3000 CRI min 80
- 2700 CRI min 80
- 2200 CRI min 70
- PC Amber CRI min 40
Other colour temperatures and/or CRIs are available upon request.
Service life
TM21 L90 (10k) > 100,000 h
All our products support remote regulation, both individually and in groups, through the most standardised control systems, significantly reducing energy consumption and eliminating light pollution. We adapt our products to safeguard biodiversity and respect circadian rhythms, eliminating harmful wavelengths.
Our luminaires comply with the American IESNA LM80 and TM21 standards.
Controls
1-10V / 0-10V
Analog one-way regulation protocol that, through a signal between 1 or 0 and 10 V, allows remote linear control of the luminous flux between 10% or 0% and 100%. The standard programming is as follows: Vi ≥ 8V – 100%; Vi ≤ 1V – 10%.
DALI
Two-way digital communication protocol (Digital Addressable Lighting Interface) that allows grouping, regulating, and turning off the luminaire, using an 8-bit resolution with 254 regulation steps and receiving information about its status for maintenance.
Programmes
Automatic programming
Individual, self-managed programming in the product and bi-directional. It is configured prior to installation. It is useful in projects that require a single pattern throughout the product’s life. It incorporates automatic regulation steps with geolocation and real nighttime cycles.
Example: 100% from 21:00 to 22:00; 70% from 22:00 to 01:00; 50% from 01:00 to 05:00; 70% from 05:00 to 08:00.
Automatic control panel programming
Individual, self-managed programming in the control panel and one-way. It is configured prior to installation. It can coexist with other analog voltage reduction technologies, such as phase-cut. It is useful in projects that need different patterns throughout the year or the product’s life.
Example: Summer 100% from 21:00 to 22:00; 70% from 22:00 to 01:00; 50% from 01:00 to 05:00; Winter 100% from 16:00 to 22:00; 70% from 22:00 to 01:00; 50% from 01:00 to 08:00.
Command line programming
Group regulation, in the control panel and one-way. It requires the installation of an additional control electrical line besides the power line (2×2.5mm2). It is useful in projects that need simplified regulation.
Lighting Flow dimmer programming
Group regulation, in the control panel and one-way. It requires the installation of a stabilizer/voltage regulator in the control panel and product configuration to interpret the correlation between line voltage and power. It is useful in projects that need a simplified system with existing regulators.
Example: Vi ≥ 230V – 100%; Vi ≤ 185V – 60%
Functionalities
Constant Luminous Management (CLM)
Optional function parallel to the programming that maintains the project illumination levels constant throughout the installation’s life, increasing the luminaire’s power proportionally to the LED depreciation. Our standard programming is 0h 80%; 60,000h 100%.
Temperature control
Optional automatic protection to safeguard the integrity of the lighting components. It monitors the maximum temperature, activating a flow reduction to recover an acceptable value.
Surge protection
Protector against voltage spikes caused by thunderstorms. Sized for a maximum discharge current of 10kA.
- Includes pressure compensation valve and 10kV surge protector (CE).
- Clean using pH-neutral, alcohol-free, and non-abrasive cleaning products.
CE
UL
RoHs
IP66
IK08
Clase I
Distributions
Wide Flood
Flood
Medium
Spot
Oval
Lightblade
Wide Flood COB
Type II
Type II+II
Type II+III
Type III
Type IV
Type V
Applications

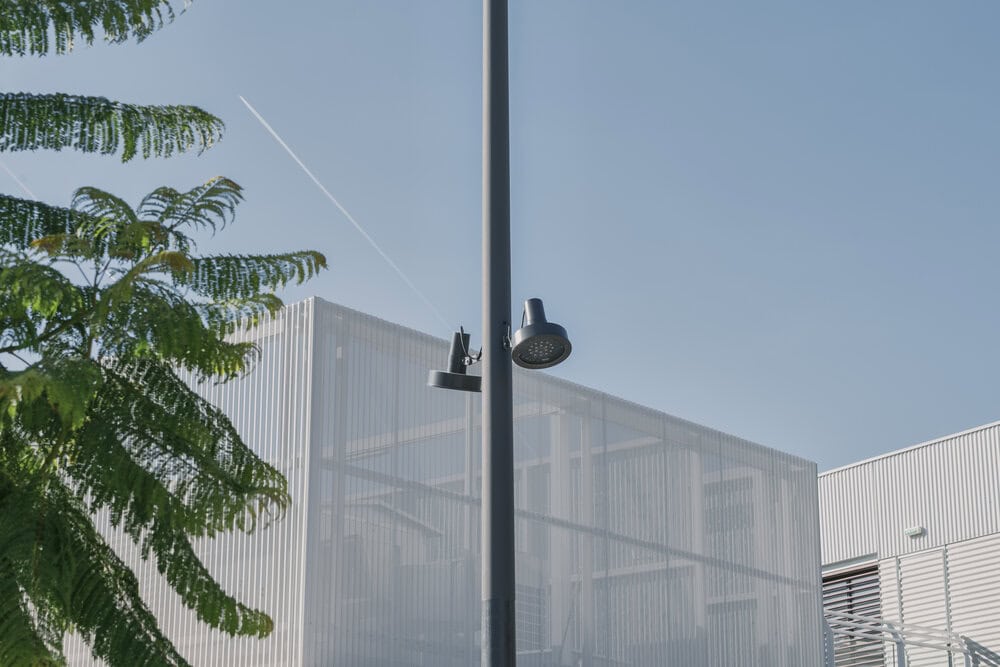

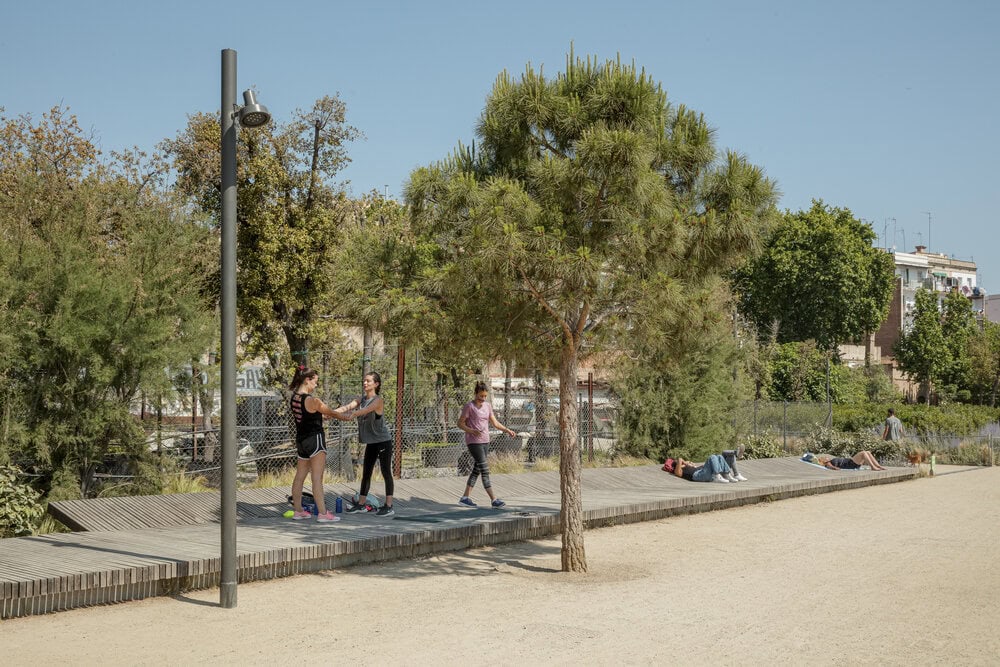

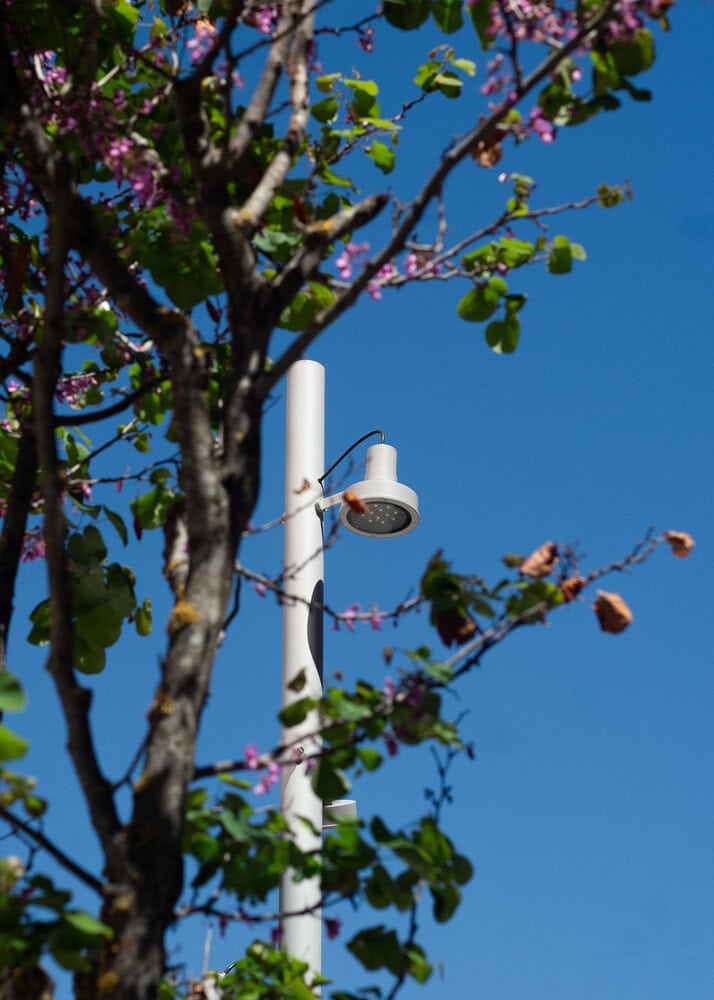

Column lighting is the most well-organized, functional option for urban projects. It harmonizes layouts from a technical perspective, with good rates of uniformity and suitable lighting values. Single or double accessories for up to six floodlights at different heights, allowing the light to be directed wherever necessary, due to the three axes of rotation.
Materials
AISI304 stainless steel flange and anodised injected aluminium EN-AC-47100 bracket with powder-coated finish.
A2 stainless steel hardware.
Column made from hot-dip galvanised S-275 JR Class 1 steel, painted finish: 4.40 m, 5.20 m, 6.00 m heights with one circular section segment of Ø127 mm; 7.80 m, 9.40 m, and 11.80 m heights with two circular section segments, the upper one of Ø127 mm and the lower one of Ø152 mm or Ø168 mm.
Installation
Column fixed in a concrete block on-site, with a groove for electrical connection, and four anchor bolts per column, 20 cm below the pavement level.
Installation and assembly instructions, screws, template, and anchor bolts included.
Weight
Floodlight: 3.7
Single column accessory: 0.8
*Approximate weight without packaging (kg)

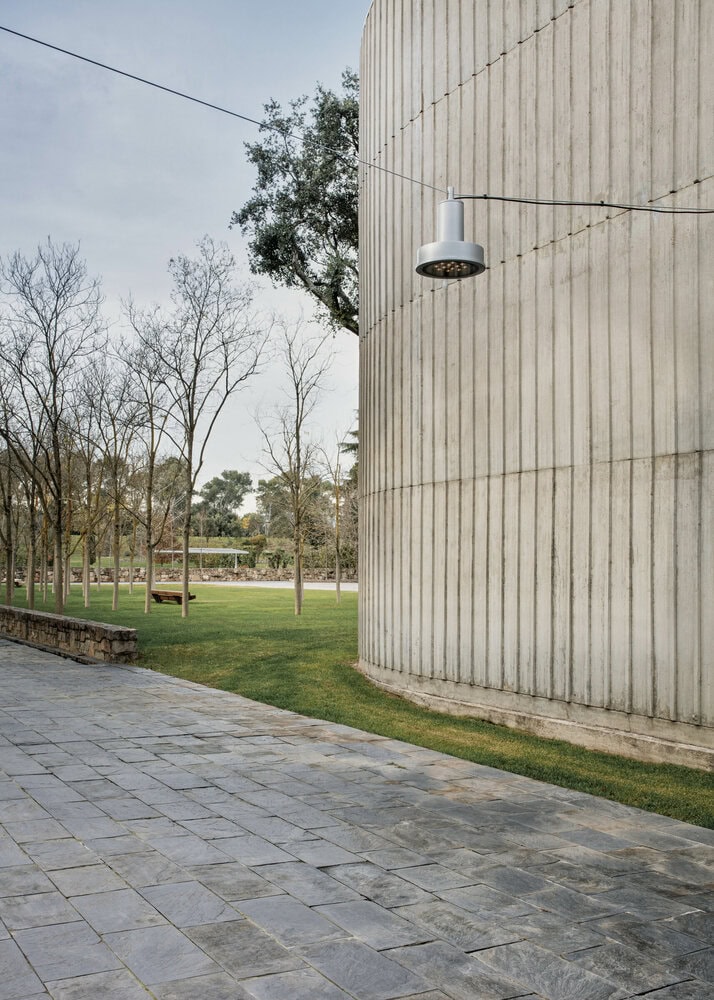

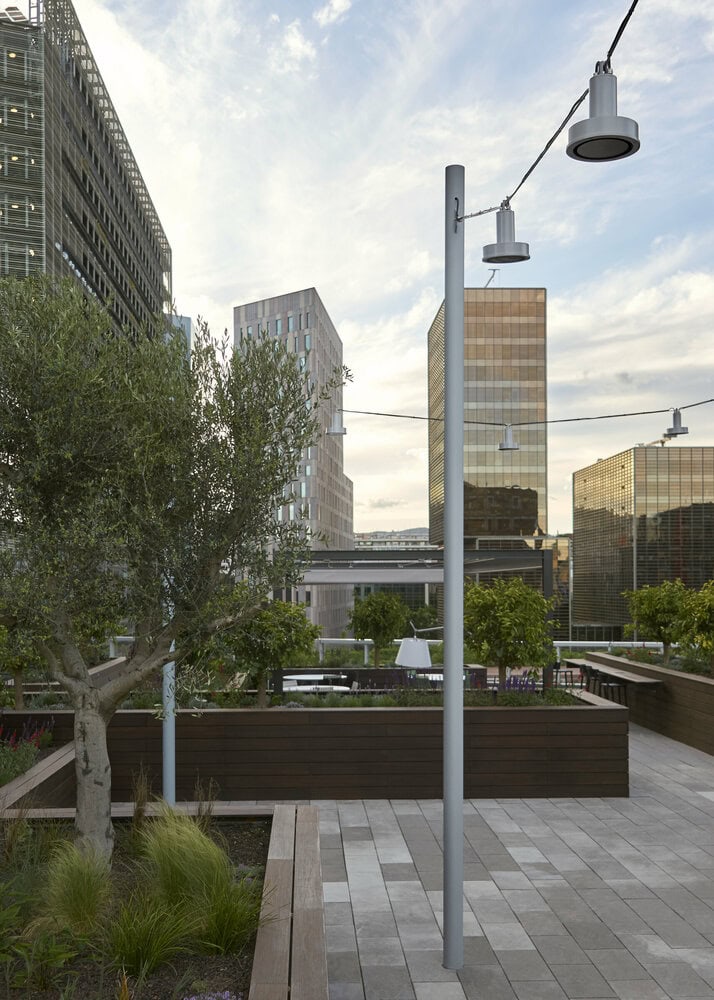

Catenary lighting allows the layout of the light points to be separate from the rigidity of the program, creating spaces for people and nature. The accessory for installing a floodlight on a catenary cable (between Ø6-8 mm) allows for on-site rotation of 360º to direct the luminous flux.
Materials
AISI304 stainless steel bracket and anodised EN-AC-46100 aluminium injection attachment parts with powder-coated finish.
A2 stainless steel screws.
Installation
Attach the accessory to the floodlight, and then the assembly to the catenary cable. The anchoring system allows for a cable diameter of between Ø6 and 8 mm.
Installation and assembly instructions, and screws included.
Catenary cable not included.
Weight
Floodlight: 3.7
Single catenary accessory: 0.5
*Approximate weight without packaging (kg)

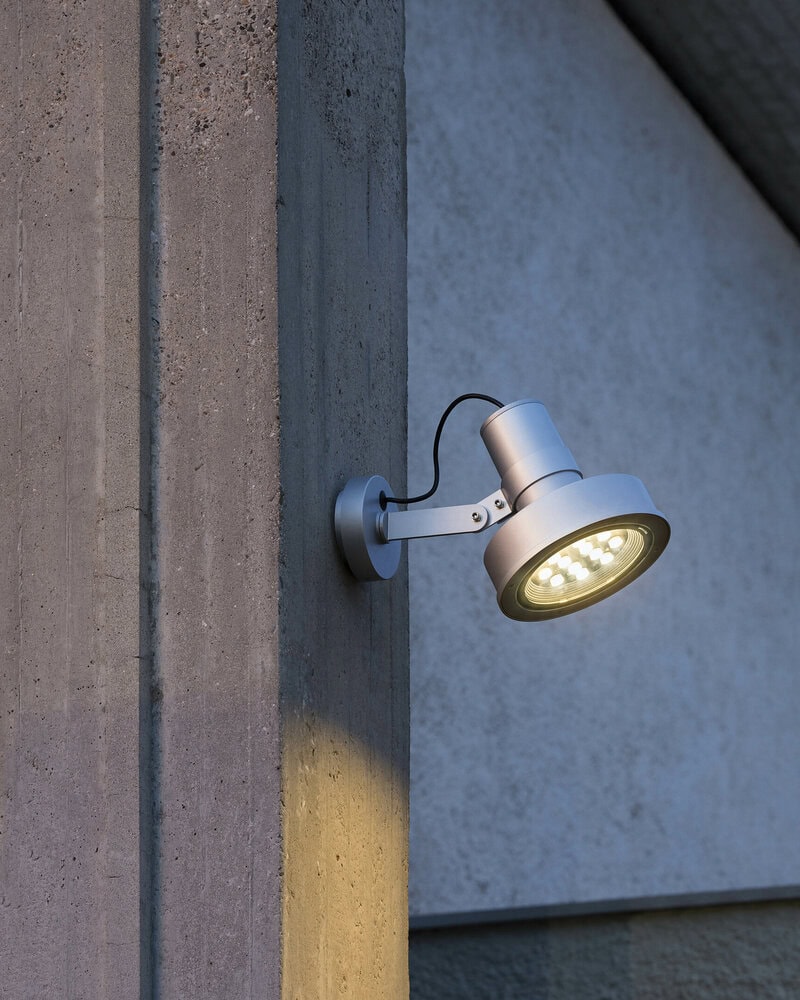

Lighting that is mounted on a wall, ceiling or floor provides illumination while maintaining coherence throughout the entire project layout. The floodlight can be directed to illuminate sculptures, architectural facades, plant elements, green areas, paths, squares, parking areas, landscapes or transit areas.
Materials
AISI304 stainless steel flange and anodised injected aluminium EN-AC-47100 bracket with powder-coated finish.
A2 stainless steel hardware.
Installation
Attach the accessory to the surface and then the floodlight. The system is compatible with a recessed or surface electrical installation. Installation and assembly instructions, and screws included.
Fixing wall plugs not included.
Weight
Floodlight: 3.7
Short wall-mounting accessory: 1.5
Long wall-mounting accessory: 2.1
*Approximate weight without packaging (kg)
Downloads
Arne S in the city

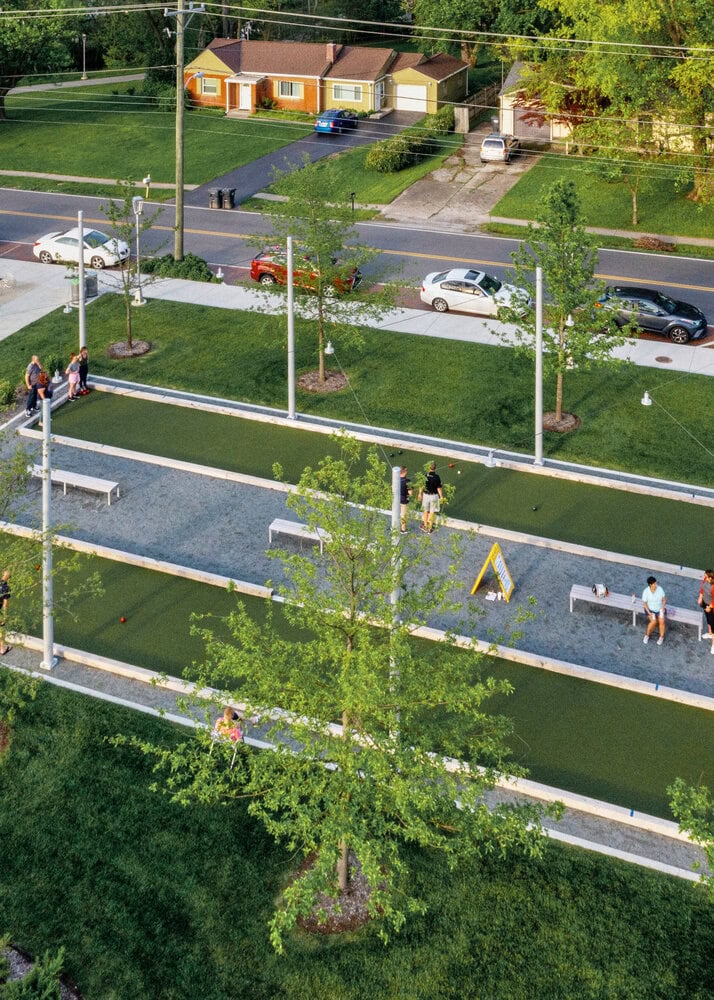

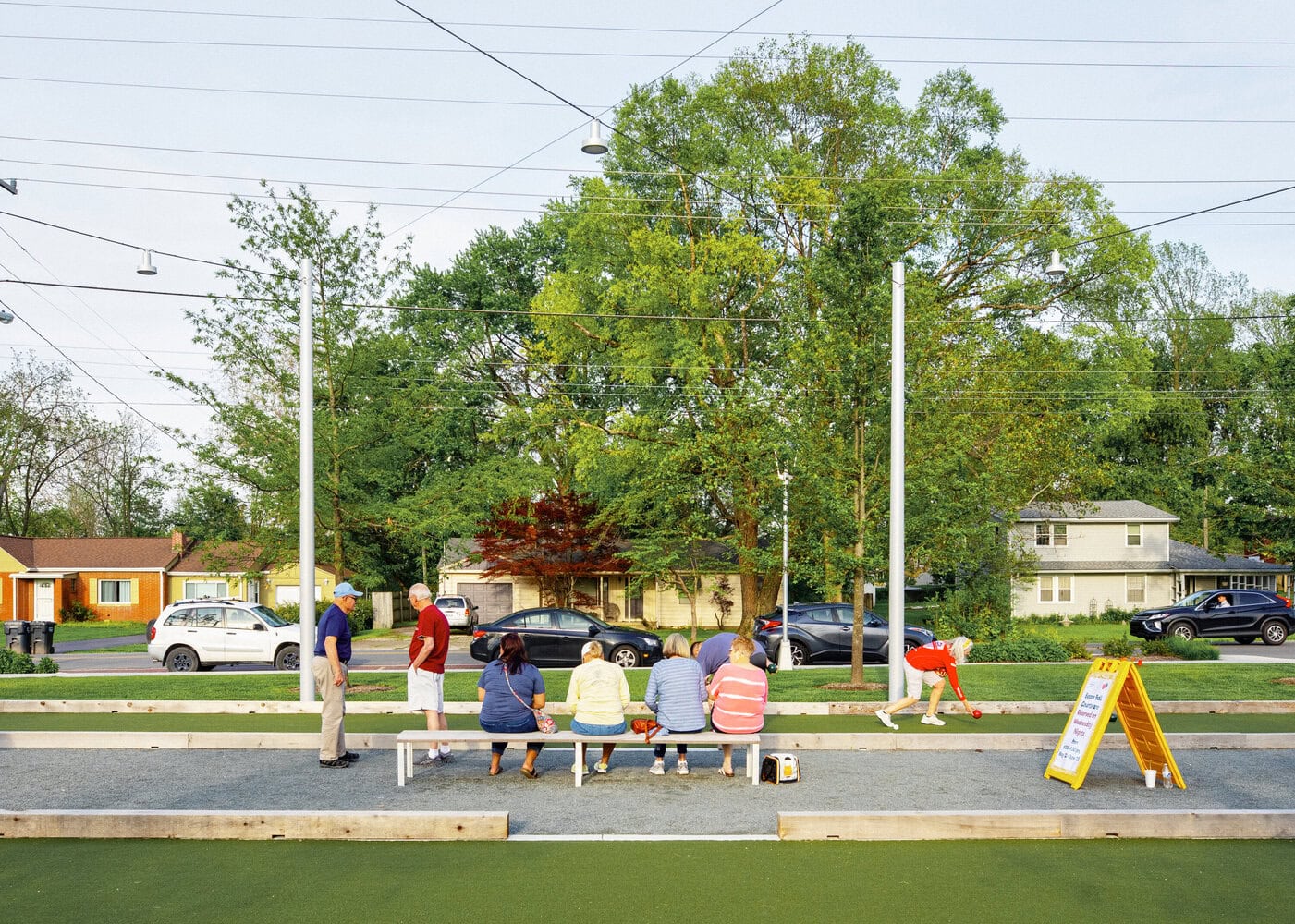

Old City Park
Greenwood, IN, USA

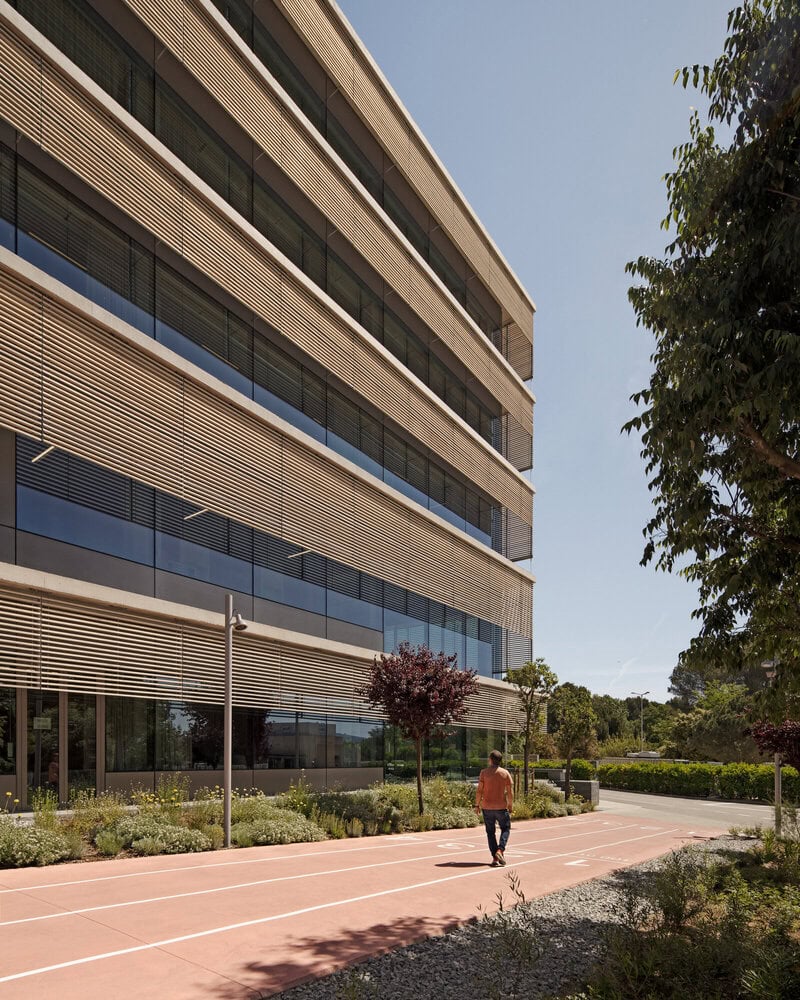

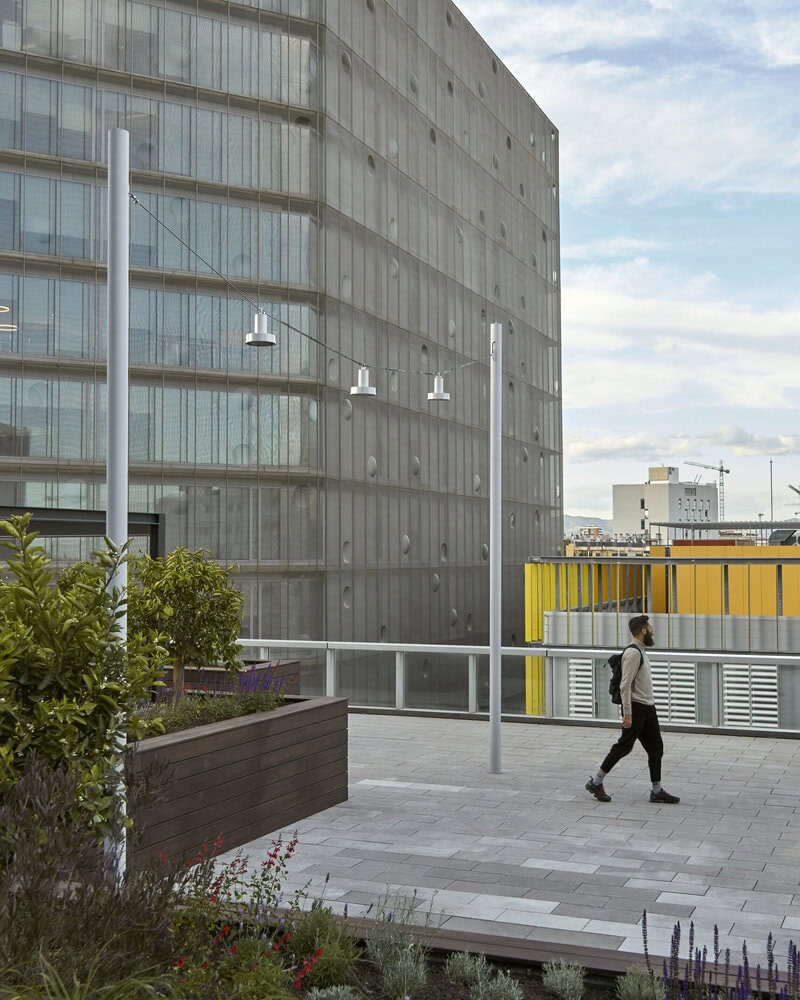

Interface offices 22@
Barcelona, Spain

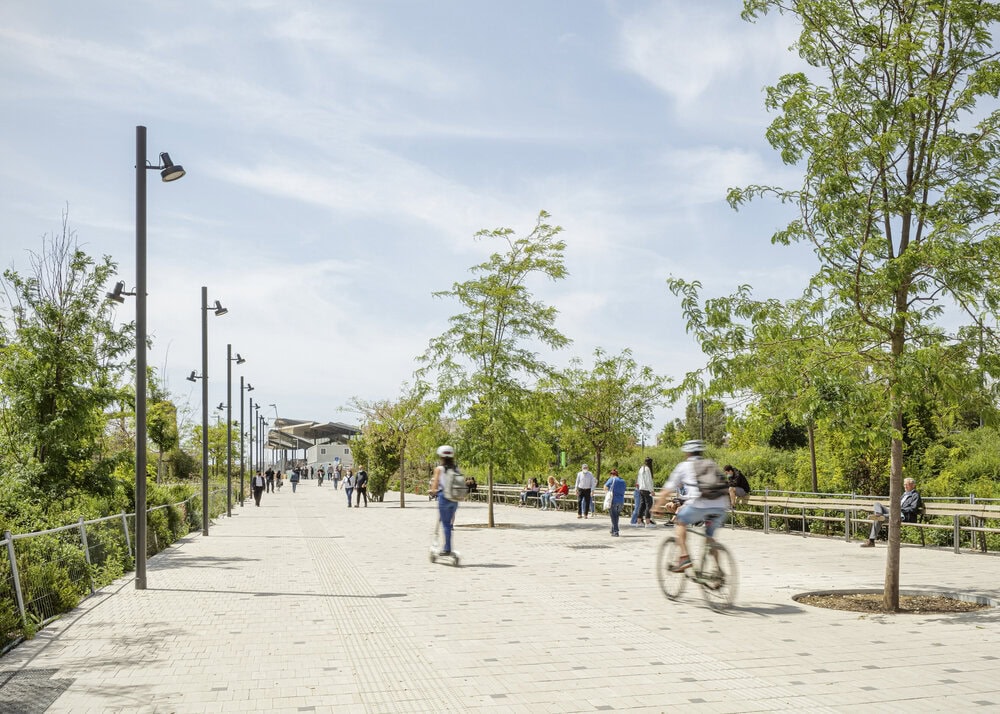

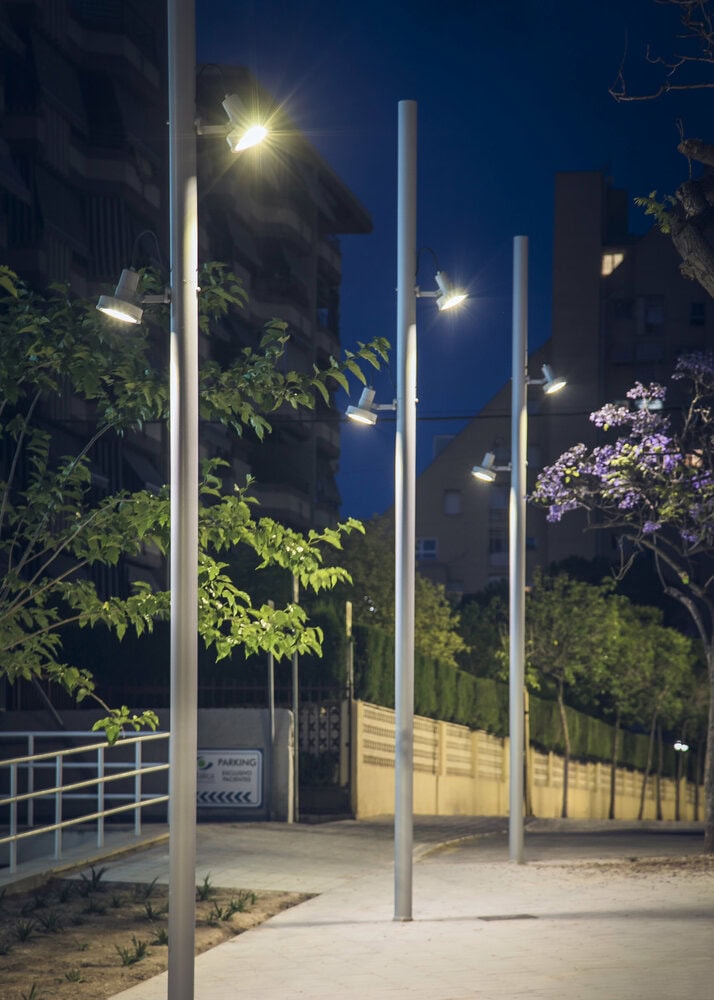

Padre Esplá avenue
