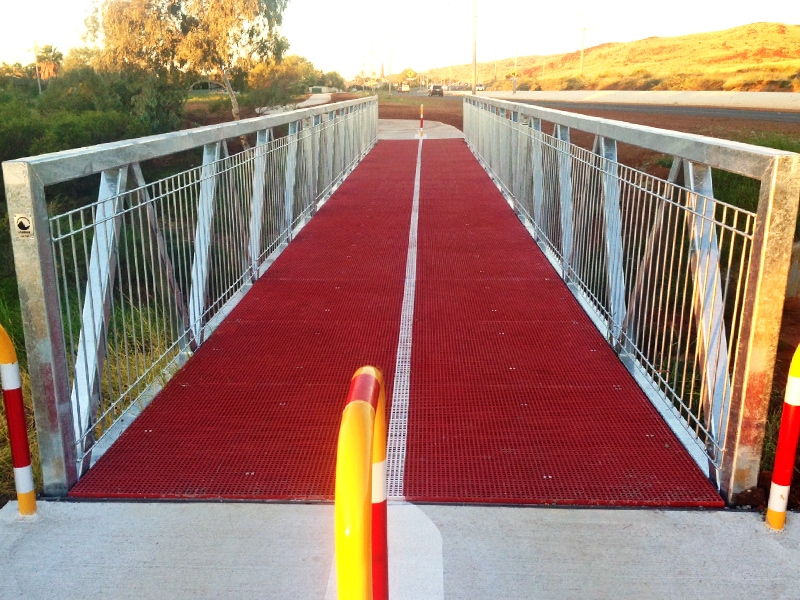

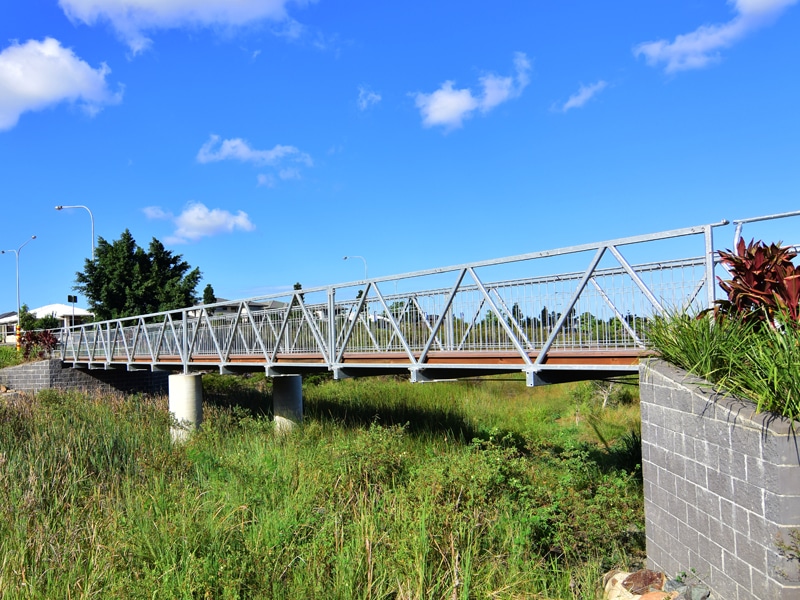

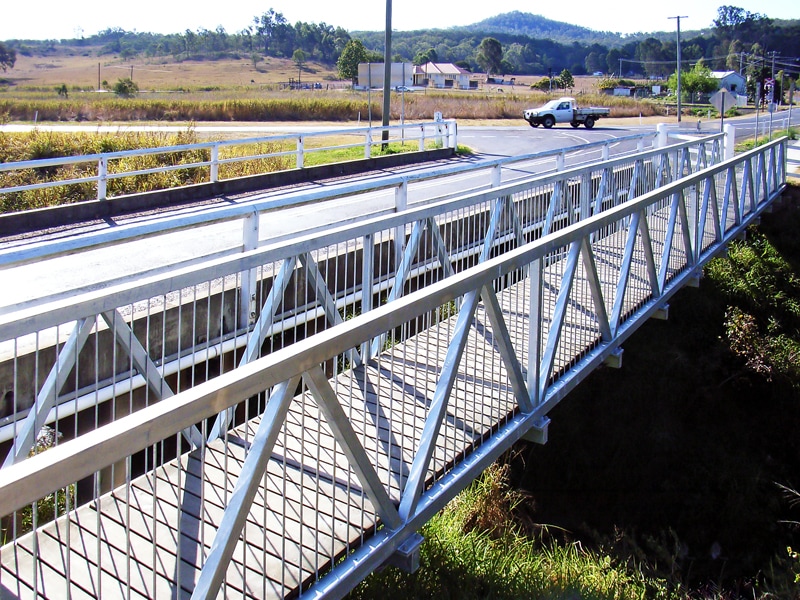

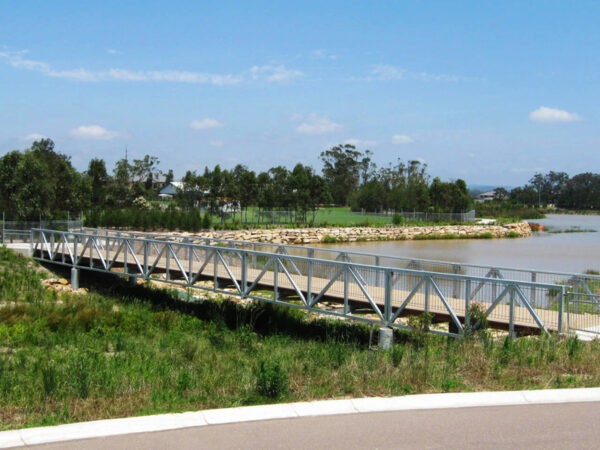

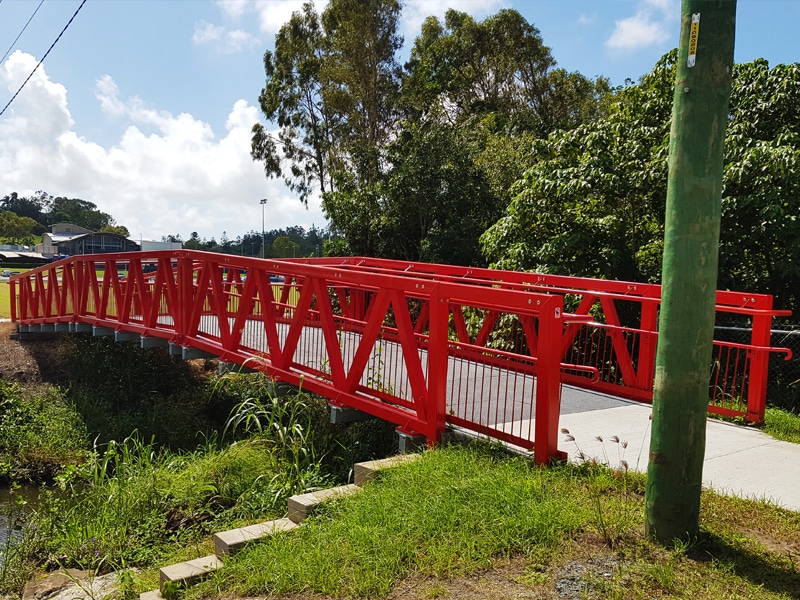

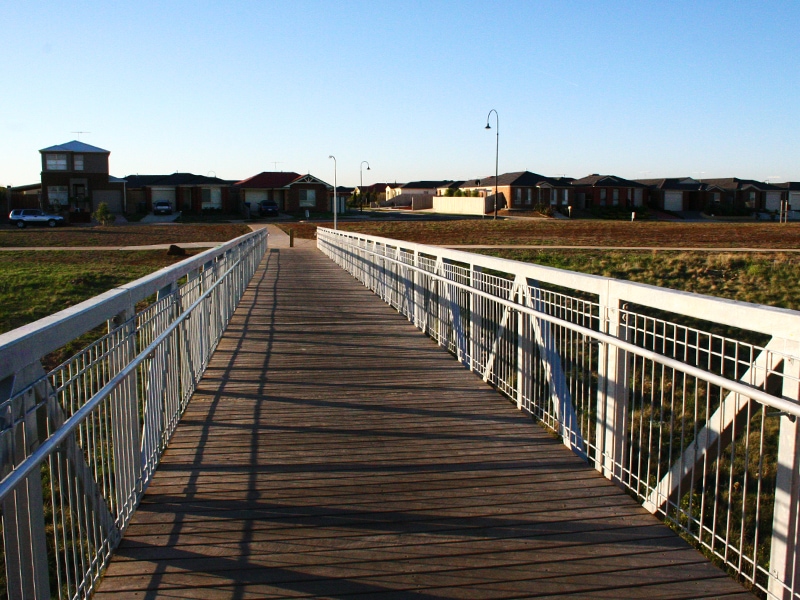

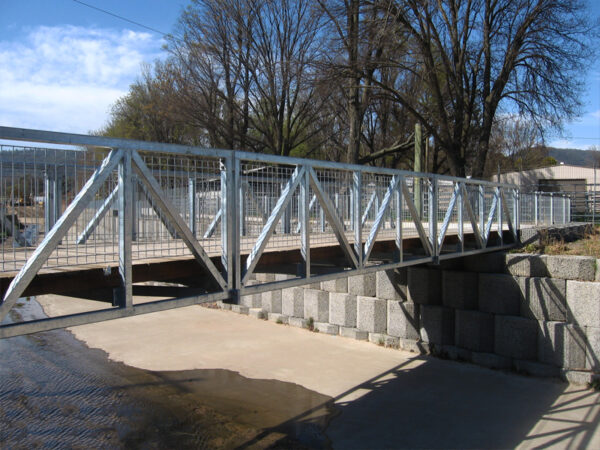

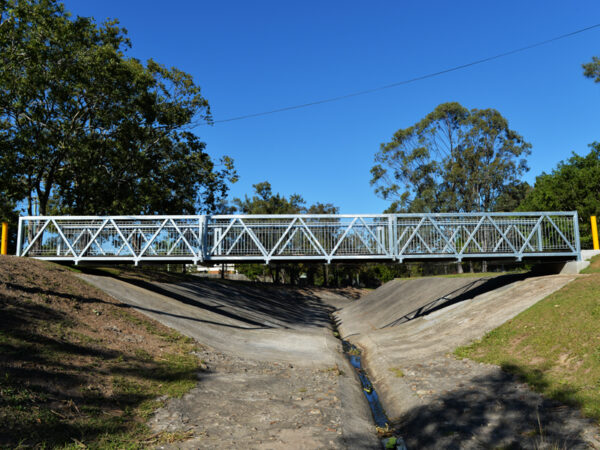

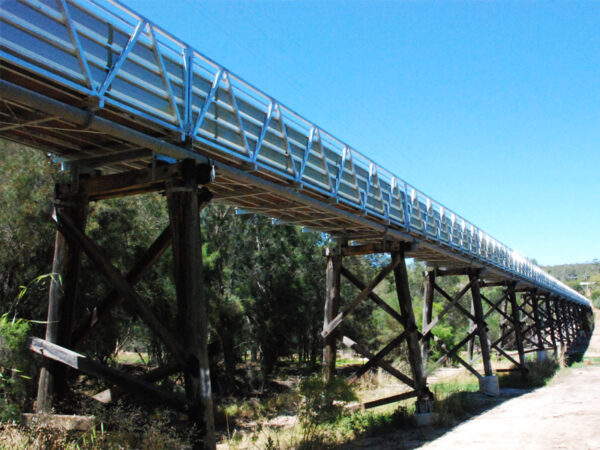

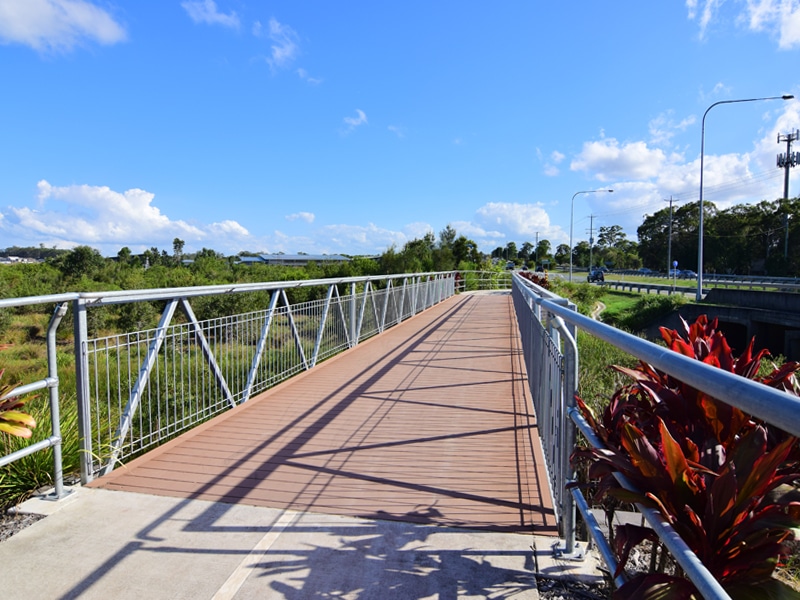

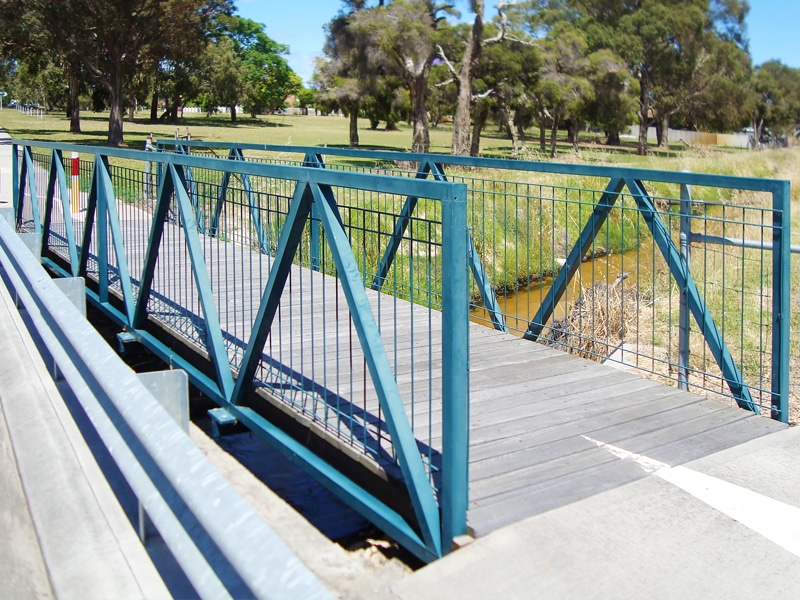

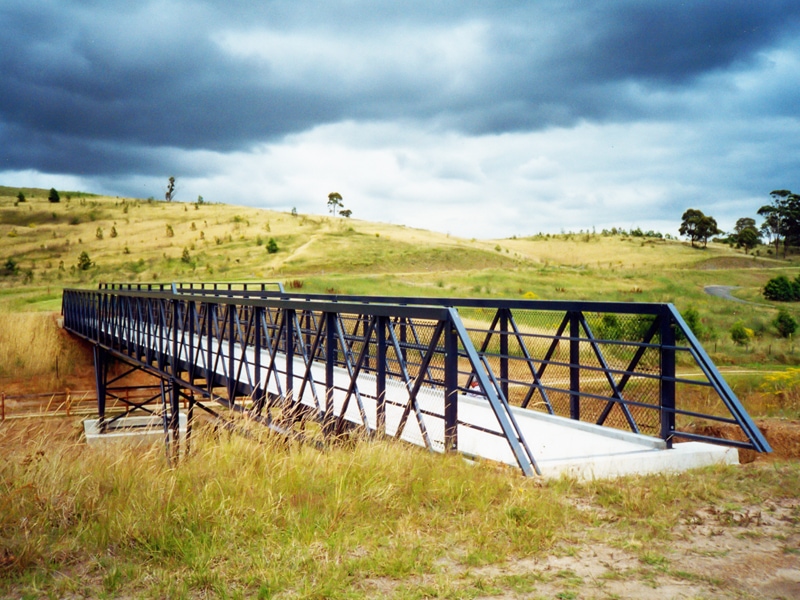

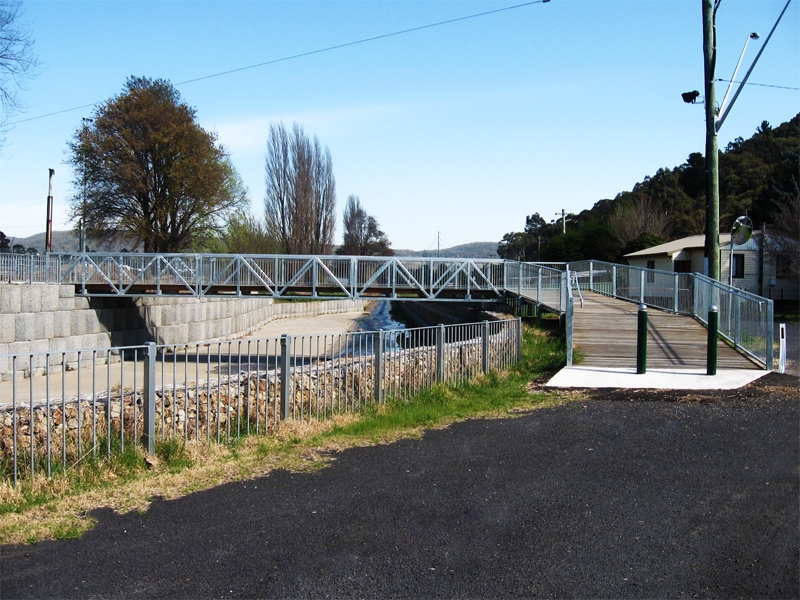

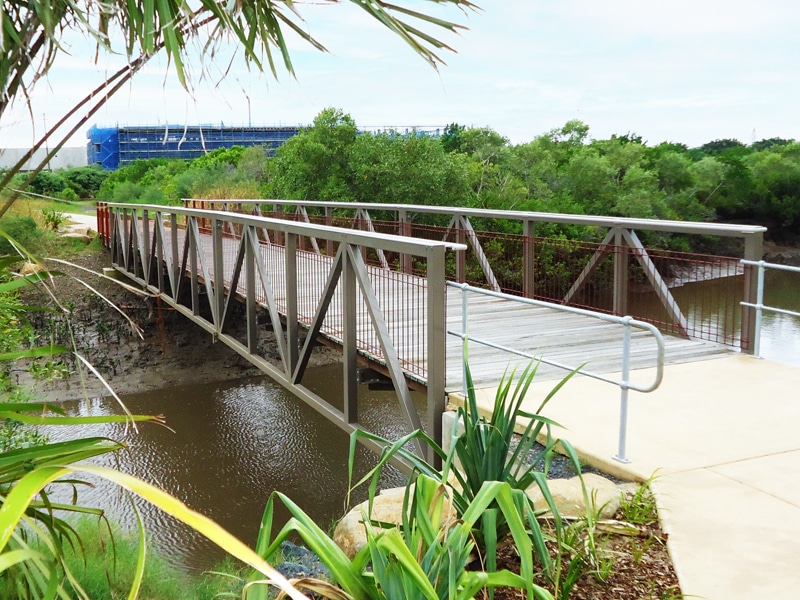

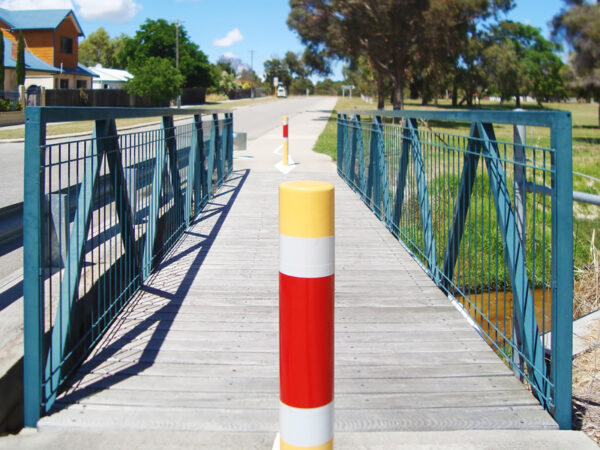

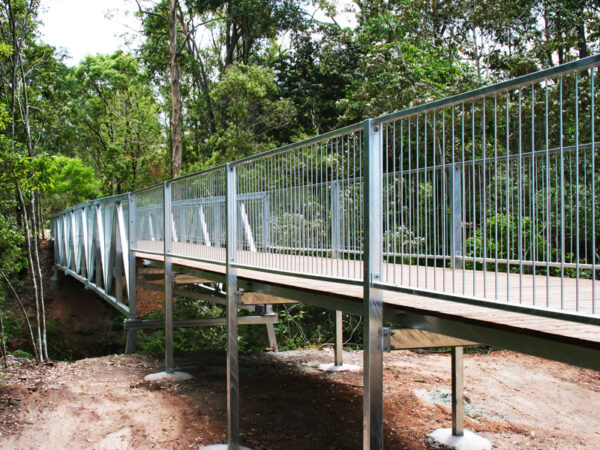

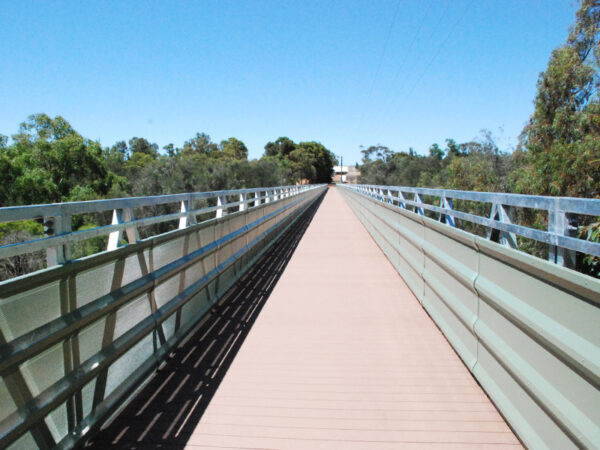

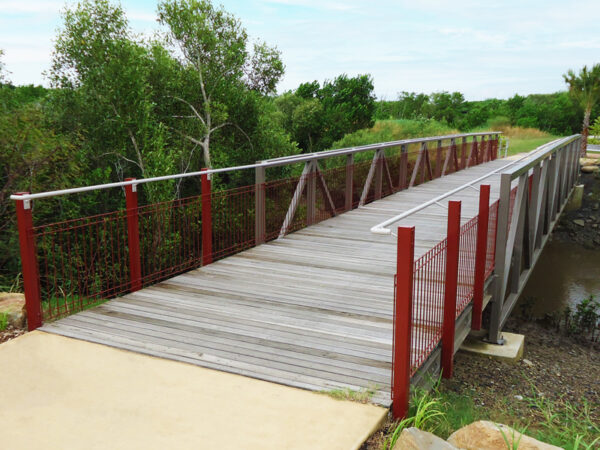

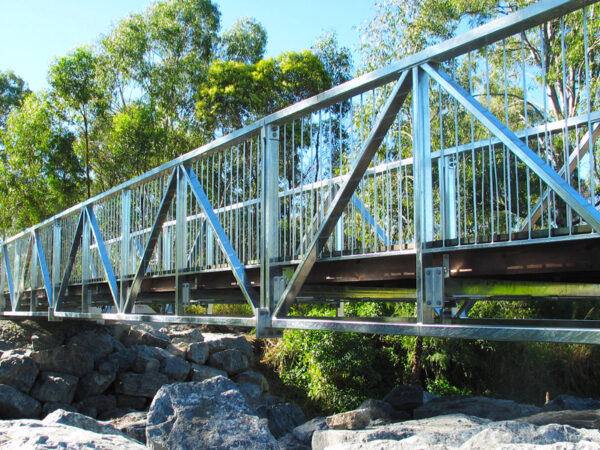

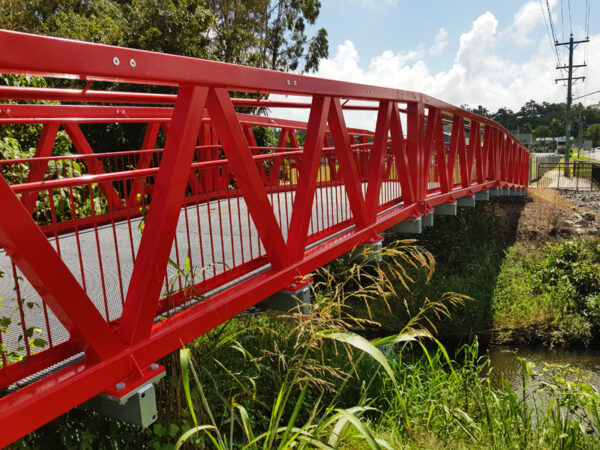

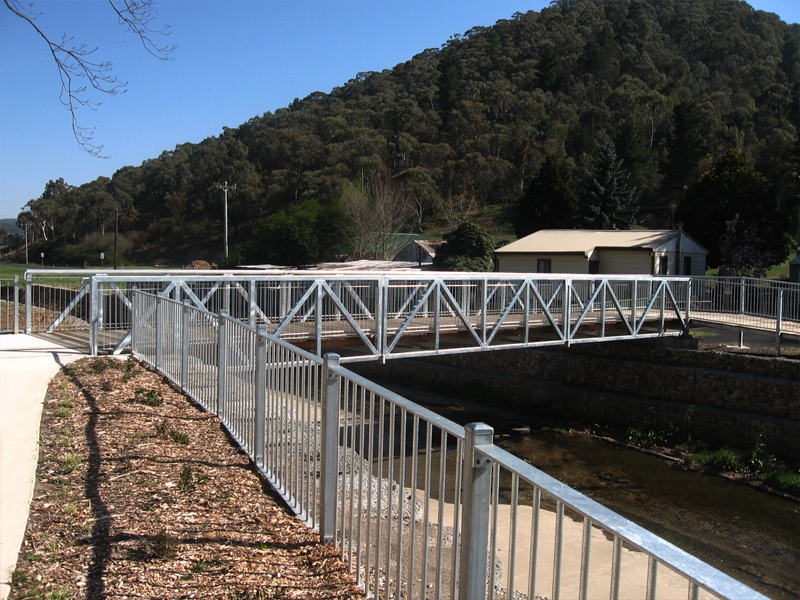

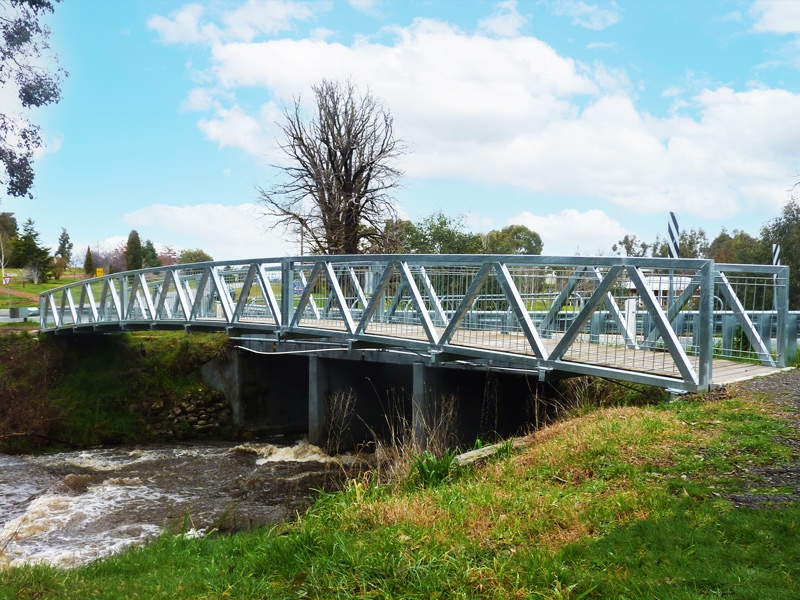

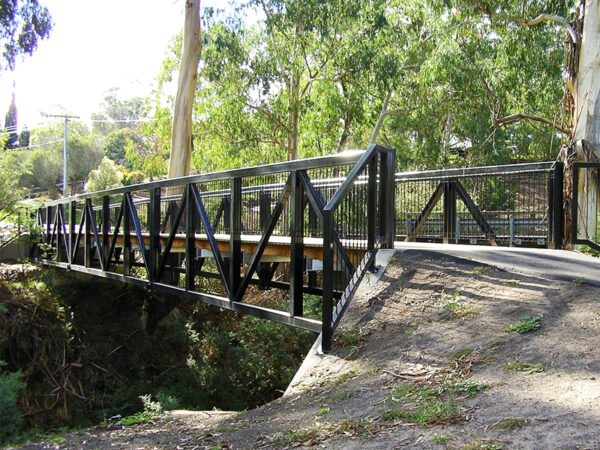

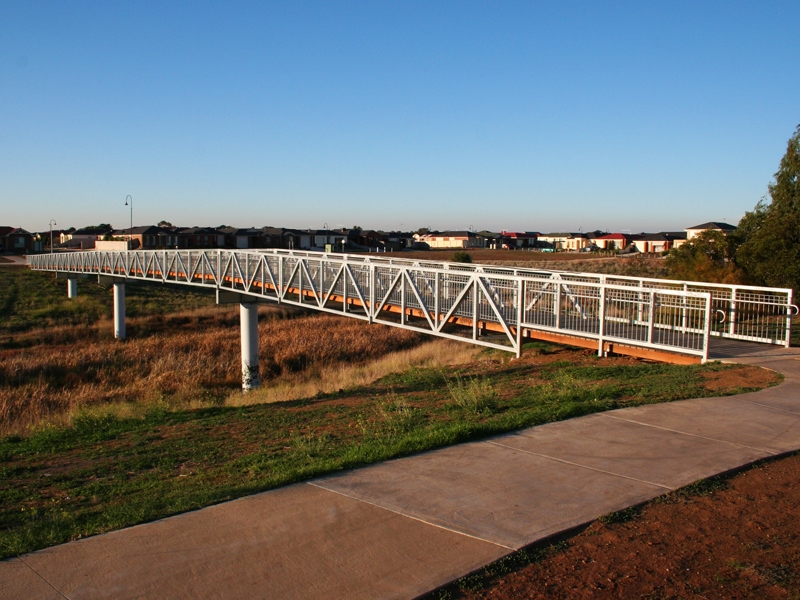

Murray Series (Steel Truss)

Steel truss pedestrian bridges are economical, able to span wider, and are effective load-bearers.







Structure

  • Hot-dipped galvanised (HDG) steel beams, bearers and posts
  • Joists: HDG, hardwood or pine
  • Decking: Hardwood or (FRP) open grid mini-mesh
  • Baluster Panels: Pre-fabricated aluminium or HDG

Finishes

  • HDG to steel members
  • Powder-coating to HDG steel/aluminium panels (where requested)
  • Two-pack epoxy finishes to HDG steel/aluminium elements (where requested)
  • Factory staining to pine/hardwood members (not hardwood decking)

Fixings

  • Galvanised steel fixings
  • 8.8/S galvanised structural bolts to structural bolted connections
  • Landmark stainless steel anti-vandal fastening system at appropriate connections

Other Options

Materials

  • Wood Plastic Composite (WPC) decking

Fixings

  • HDG steel bike rails
  • HDG accessible grab rails
  • HDG steel or hardwood accessible kick rails
  • Hardwood posts
  • Hardwood or pine cover boards
  • WPC decking
  • 304/316 grade stainless steel hand rails

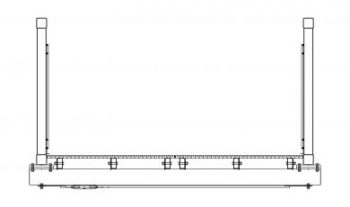

Drawings
