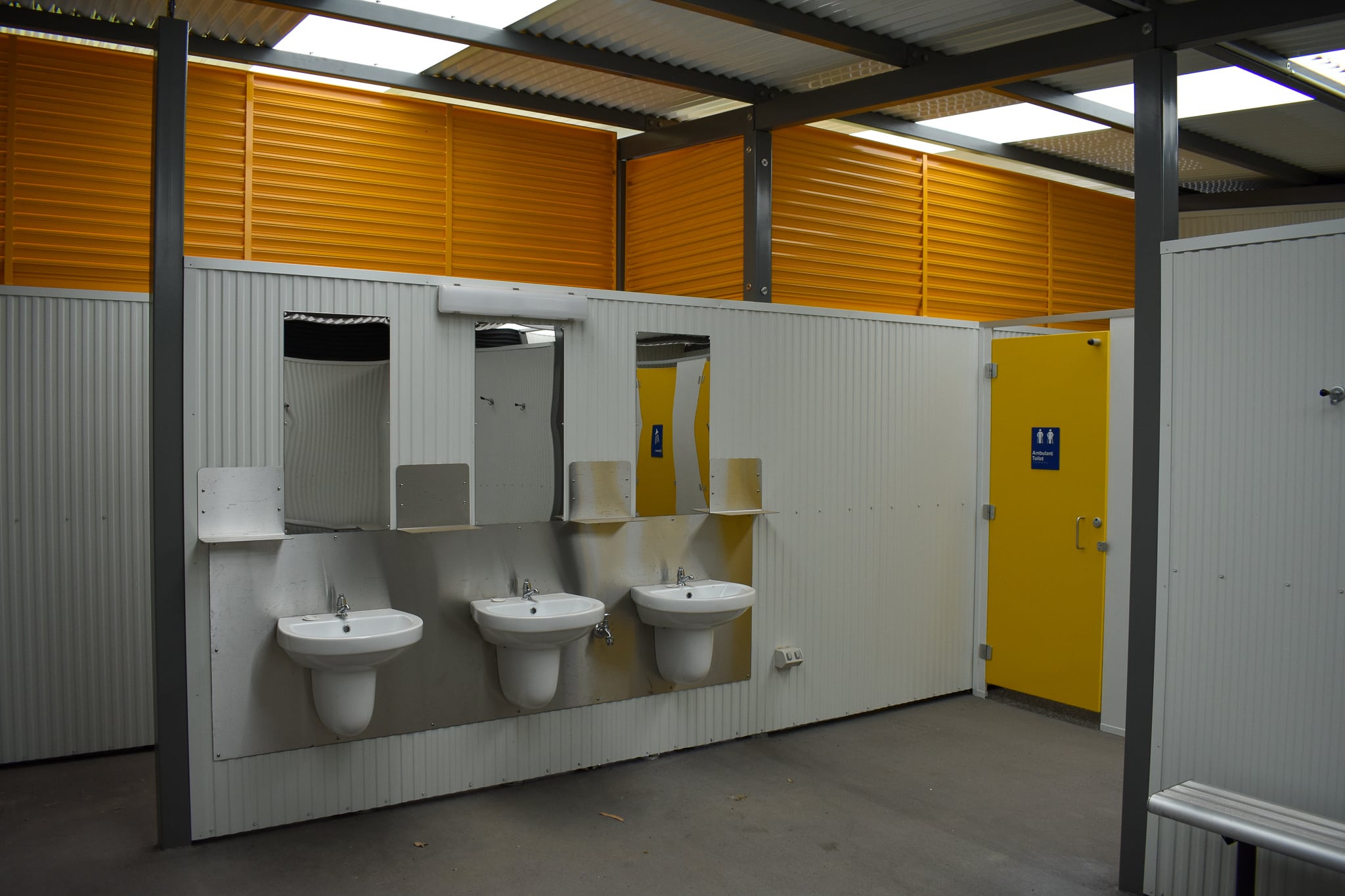

Female Friendly Facility – two change rooms (K8104)

Affordable and adaptable unisex change facilities, delivered in kit-form, ready to build on-slab, that cater for the needs of both males and females.



The Materials

General specifications

  • Colorbond® custom orb roof sheeting XRW grade with polycarbonate inserts
  • HDG and powder-coated steel roof frame and posts
  • Colorbond® custom orb external walls
  • Powder coated aluminium ventilation screens
  • Galvanised steel wall frames
  • XRW grade Colorbond® Maxrib internal wall cladding
  • Pre-hung XRW grade Colorbond® steel clad solid core external cubicle doors
  • Roof safety mesh and insulation

Change room specifications

  • Veneer panel partitioning systems where applicable
  • ACM sheeting to all immediate shower cubicle walls

Service duct

  • Brass vandal proof keyed tap with hose mount
  • Single phase electric instant water heaters
  • XRW grade Colorbond® steel clad solid core service duct door with dead lock

Umpires’ room

  • Each 2.06 x 5.74m (11.8m2)
  • XRW grade Colorbond®, maxirib internal wall cladding
  • Aluminium composite sheeting to all immediate shower cubicle walls
  • Veneer panel partitioning systems where applicable

Finishes

General specifications

  • Concrete floor – R10 slip resistant broom finish

Fixings

General specifications

  • Colorbond® gutters and downpipes to ground
  • Heavy duty door closers, push-pull handles, indicator locks and deadlocks
  • Stainless-steel anti-vandal fasting system
  • Remaining fixings as galvanised
  • Vandal resistant fluorescent lights to change rooms

Umpires’ room

  • Bi-fold door
  • Stainless-steel standard pan with plastic cisterns
  • Aluminium bench seating
  • Stainless steel basin with Colorbond® shroud
  • Self-closing water tap

Change room specifications

  • Timber or aluminium bench seating
  • Stainless steel** pans (Disable and Ambulant)
  • Chrome plated coat and hat hooks with rubber caps
  • Stainless steel shelves
  • Stainless steel basins with Colorbond® shroud
  • Self-closing water taps***
  • Fixed shower heads, each with mixer tap and floor waste
  • Slimline automatic hand dryers (optional)
  • Vertical satin stainless steel soap dispensers
  • Stainless steel mirrors

** All stainless steel is grade 304 unless noted otherwise.
*** All tap ware, cisterns and shower heads are WELS rated.

  • See Downloads for cubicle standard inclusions and options.

Other Options

Materials

  • Internal and external cladding – corrugated steel sheeting, grooved or smooth plywood, hardwood weather boards, (ACM) or other

Finishes

  • Powder-coating or two-pack finishes on posts and cladding

Fixings

  • Stainless-steel fixtures
  • Colorbond® gutters and PVC down-pipes plumbing to water tanks
  • Selection of privacy and ornamental screens
  • Solar options for lighting and power

Preliminary Drawings
