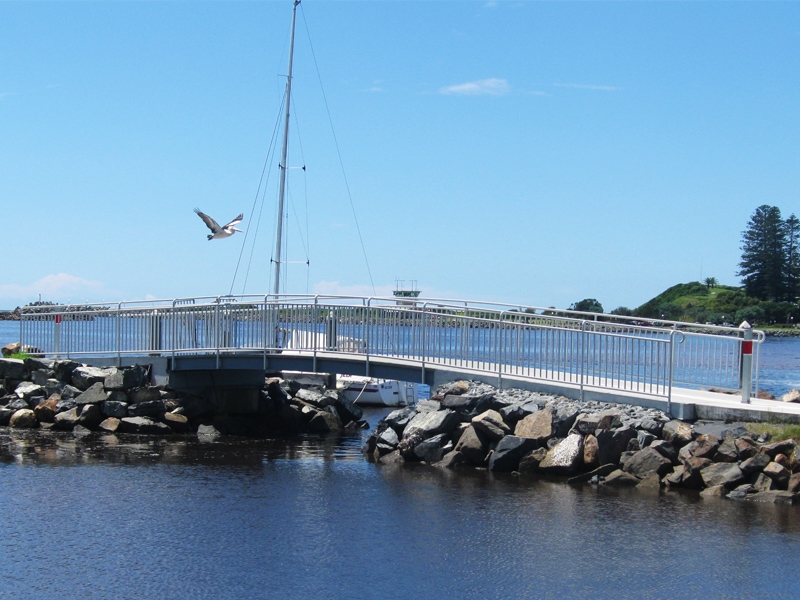

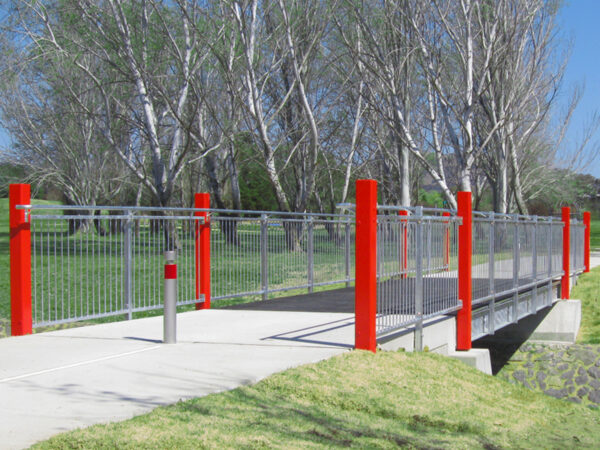

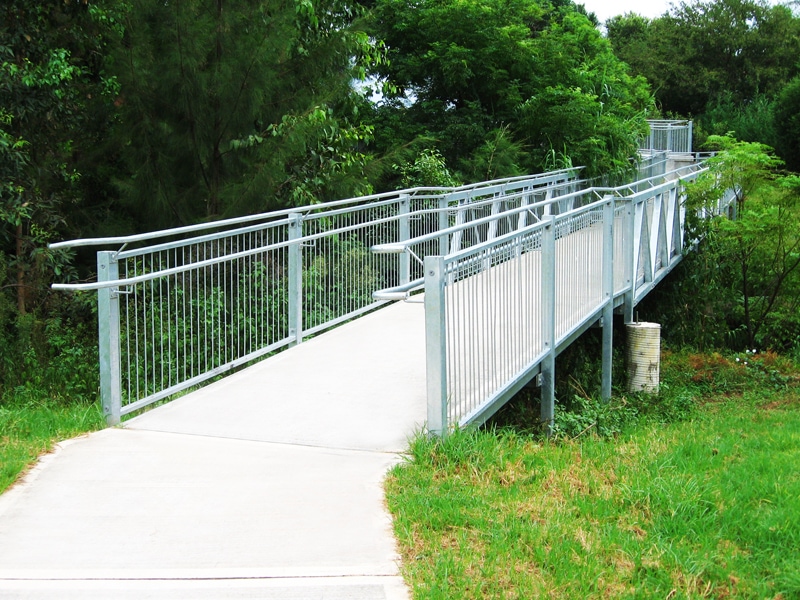

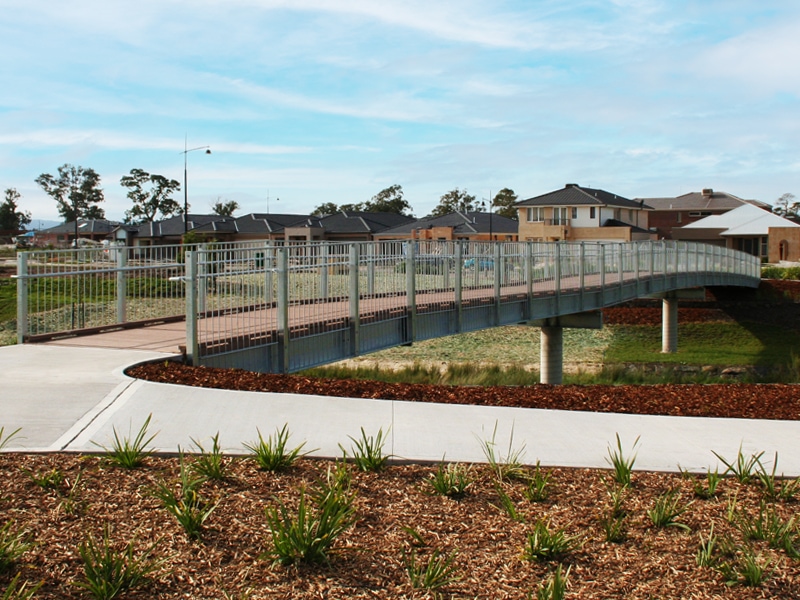

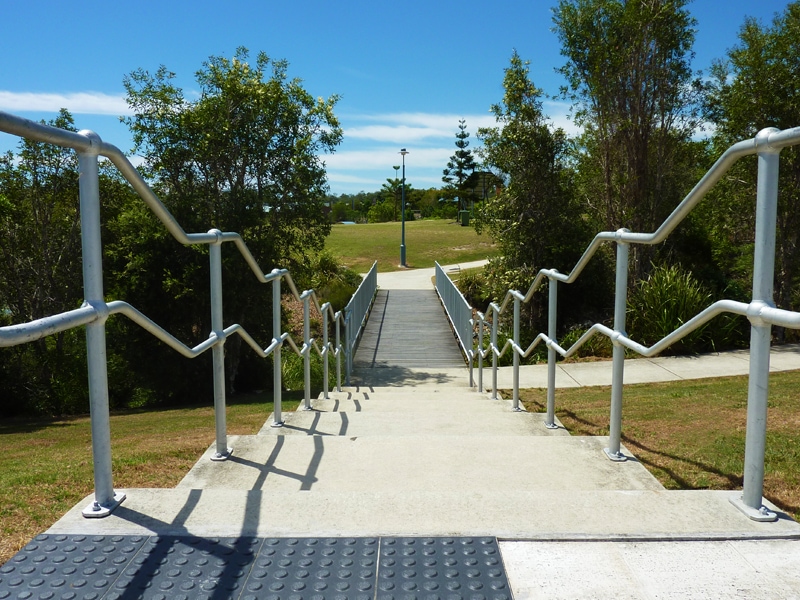

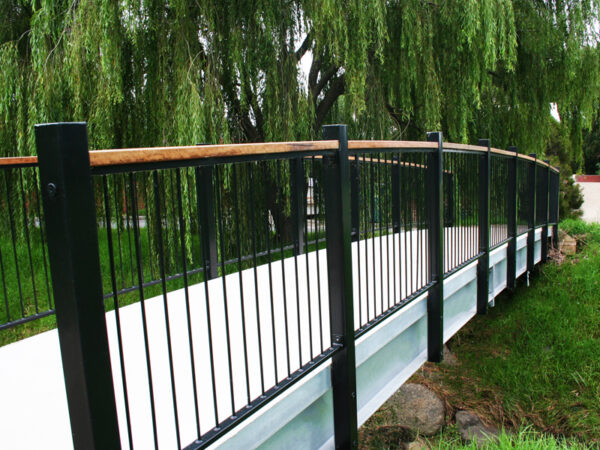

Condamine Series (Steel I-Beam)

Steel I-Beam pedestrian bridges are versatile with a short-to-medium span, up to 18 metres, with the capacity to be engineered and manufactured for vehicle or cross-flood loadings.







Structure

  • Hot-dipped galvanised (HDG) steel beams, bearers and posts
  • Joists: HDG, hardwood or pine

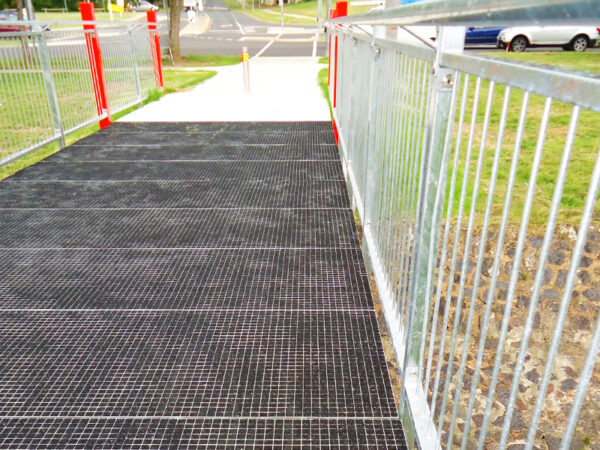

  • Decking: Hardwood or (FRP) open grid mini-mesh

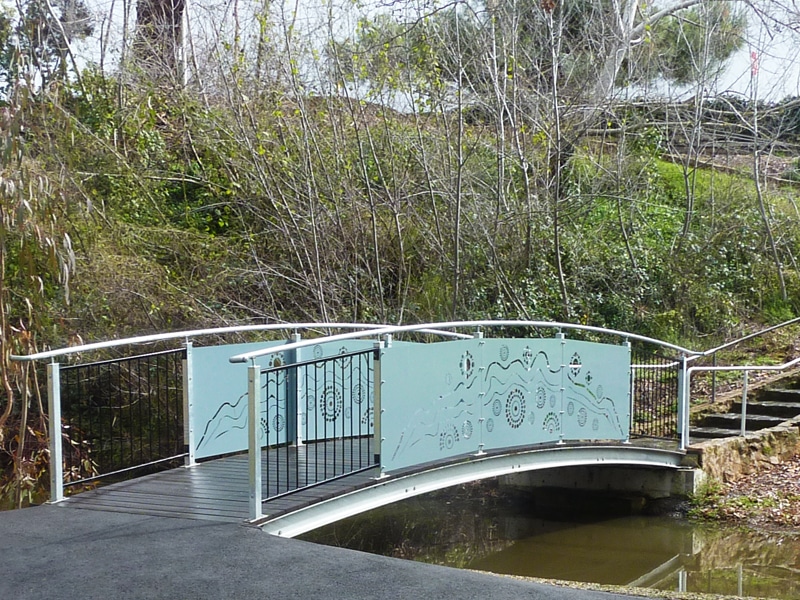

  • Baluster Panels: Aluminium, HDG, pine (all pre-fabricated) or pre-assembled hardwood

Finishes

  • HDG to steel members

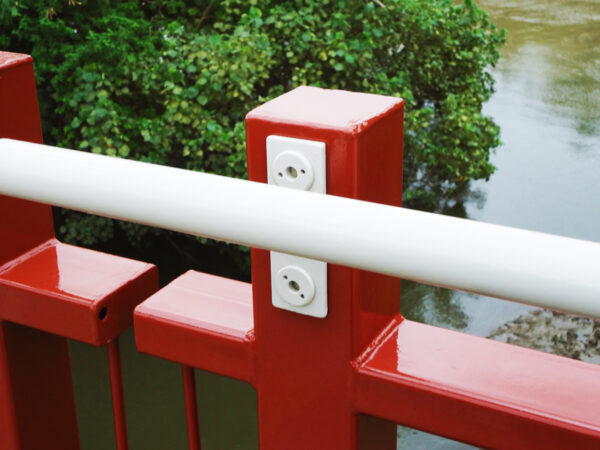

  • Powder-coating to HDG steel/aluminium panels (where requested)
  • Two-pack finishes to HDG steel/aluminium elements (where requested)
  • Factory staining to pine/hardwood members (not hardwood decking)

Fixings

  • Galvanised steel fixings
  • 8.8/S galvanised structural bolts to structural bolted connections
  • Landmark stainless steel anti-vandal fastening system at appropriate connections

Options

Frame and decking
  • Wood Plastic Composite (WPC) decking
Fixings
  • HDG steel bike rails
  • HDG accessible grab rails
  • HDG steel or hardwood accessible kick rails
  • Hardwood posts
  • Hardwood or pine cover boards
  • WPC decking
  • 304/316 grade stainless steel hand rails
