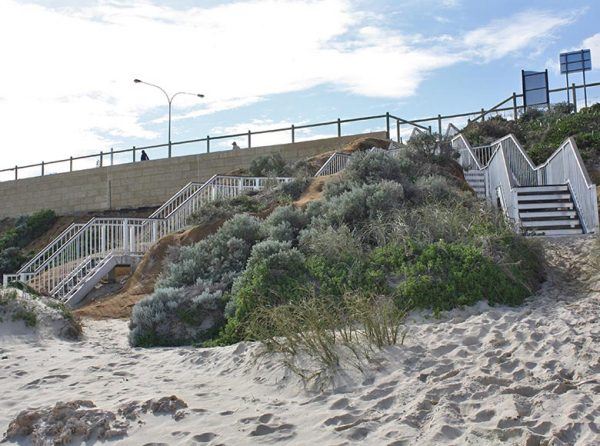

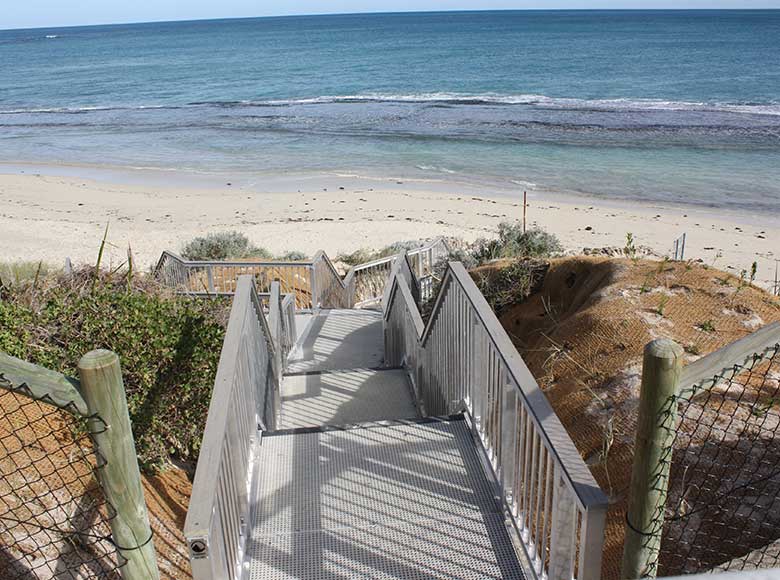

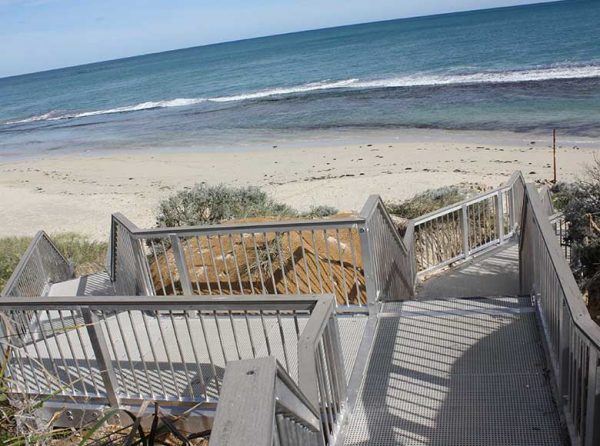

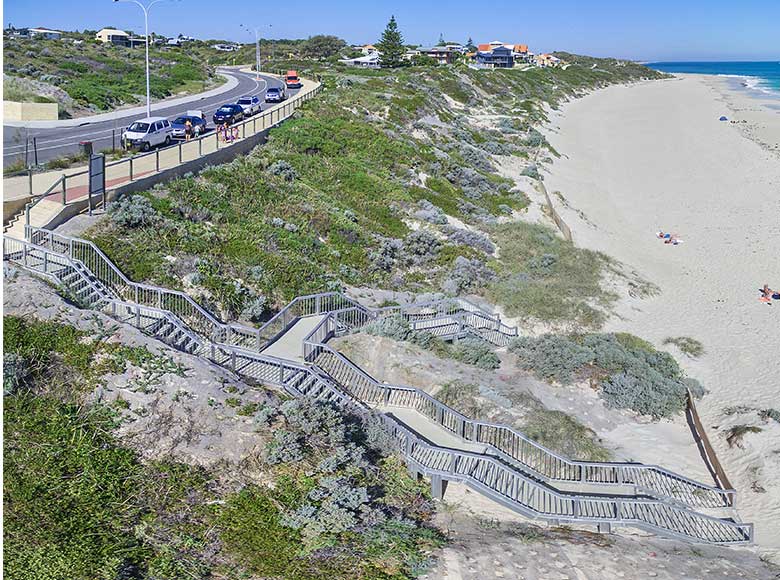

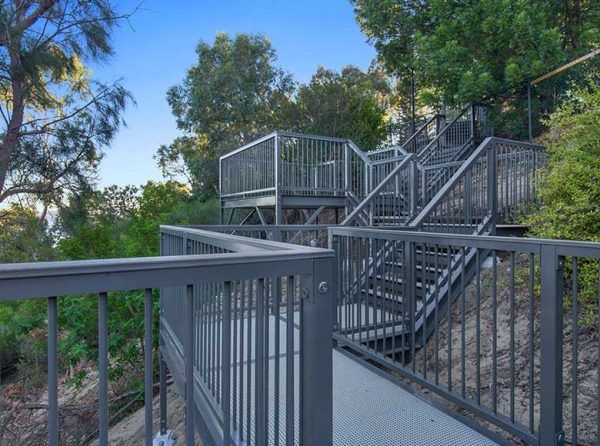

Albany Series (aluminium modular)

Modular aluminium access structures present an ideal, anti-corrosive, low-maintenance solution for harsh hand-to-access locations.

Decking and frame

  • Modular aluminium frame
  • Fibre Reinforced Plastic (FRP) grate decking (9mm aperture)

Module options

Individual modules are easily combined to create a complete access solution which is reusable, moveable and offering an exceptionally long life-cycle.

Straight landing modules

  • 2m or 1.35m clear width x 1.0 / 2.0 / 3.0 / 4.0m standard sizes (see Drawings)

Angled landing modules

  • 2m or 1.35m clear width x 30° / 45° / 60° / 90° standard angles (see Drawings)

Stairs modules

  • 2m or 1.35m clear width x 0.6 / 1.2 / 1.8 / 2.4 / 3.0 / 3.6m standard sizes (see Drawings)

Fixings

  • Stainless steel fixings
  • Stainless steel anti-vandal fastening system where applicable

Other Options

Decking and frame

  • Hardwood decking (choice of stain colour tone)
  • Wood Plastic Composite (WPC) decking

Finishes and options

  • Powder coating or two pack epoxy paint
  • A selection of cap-rails in WPC or timber

Fixings

  • Specialised piers (Diamond) for sensitive or remote sites

Drawings

Stair modules (standard sizes – clear width 1.35m or 2m)

3.6 metres

3.0 metres

2.4 metres

1.8 metres

1.2 metres

0.6 metres

Straight landing modules (standard sizes – clear width 1.35m or 2m)

4.0 metres

3.0 metres

2.0 metres

1.0 metre



Angled landing modules (standard – clear width 1.35m or 2m)

90°

60°

45°

30°
