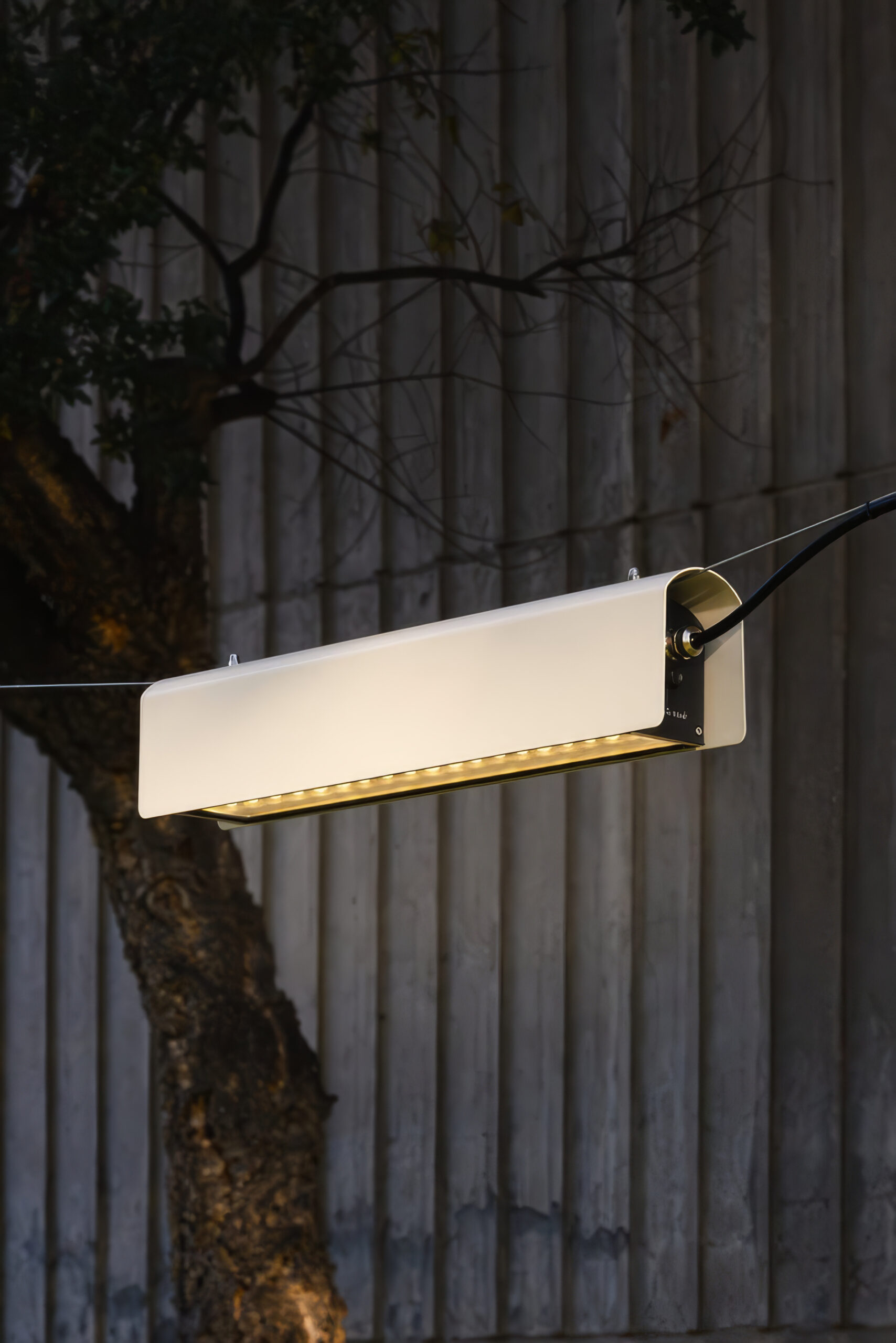

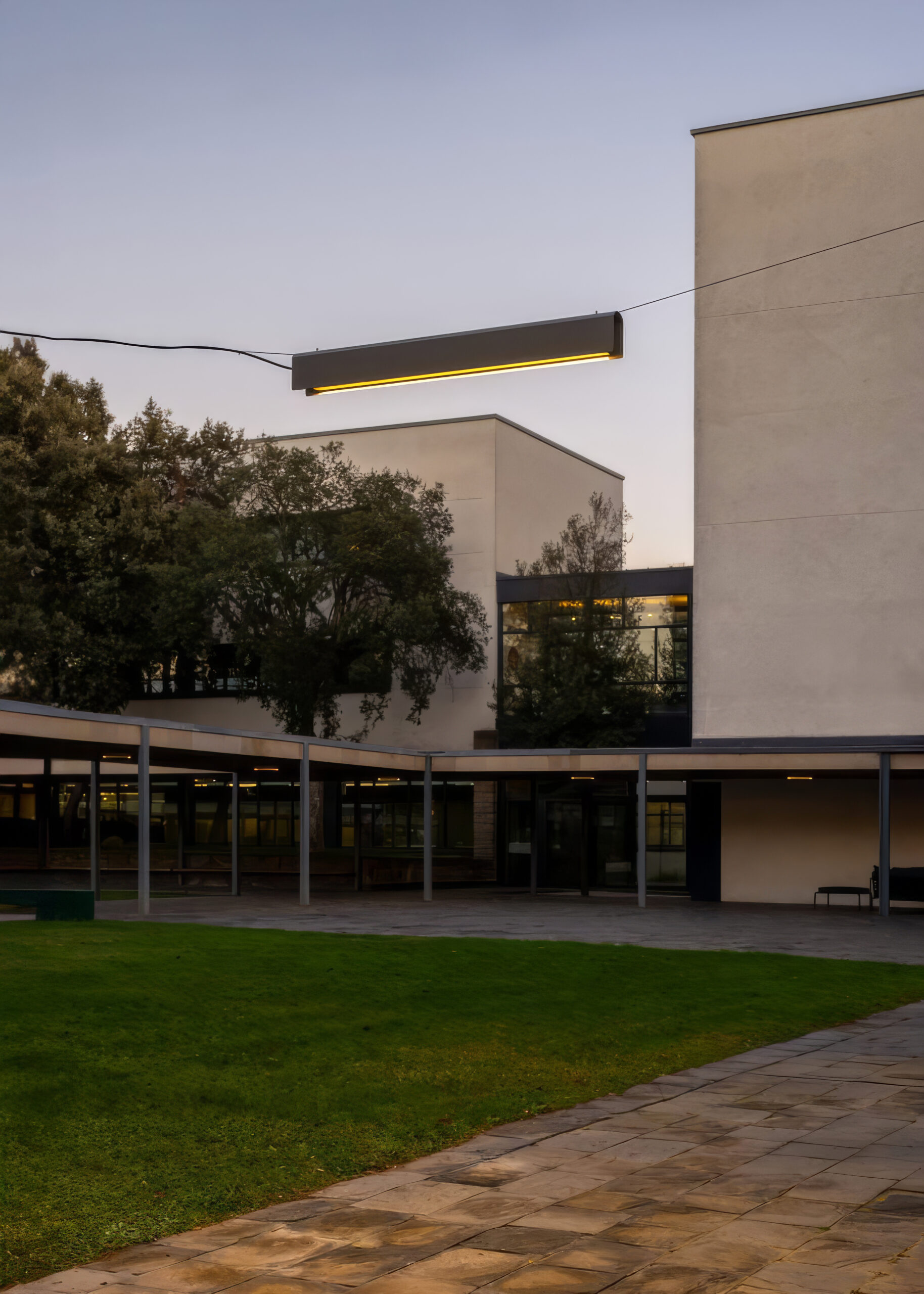

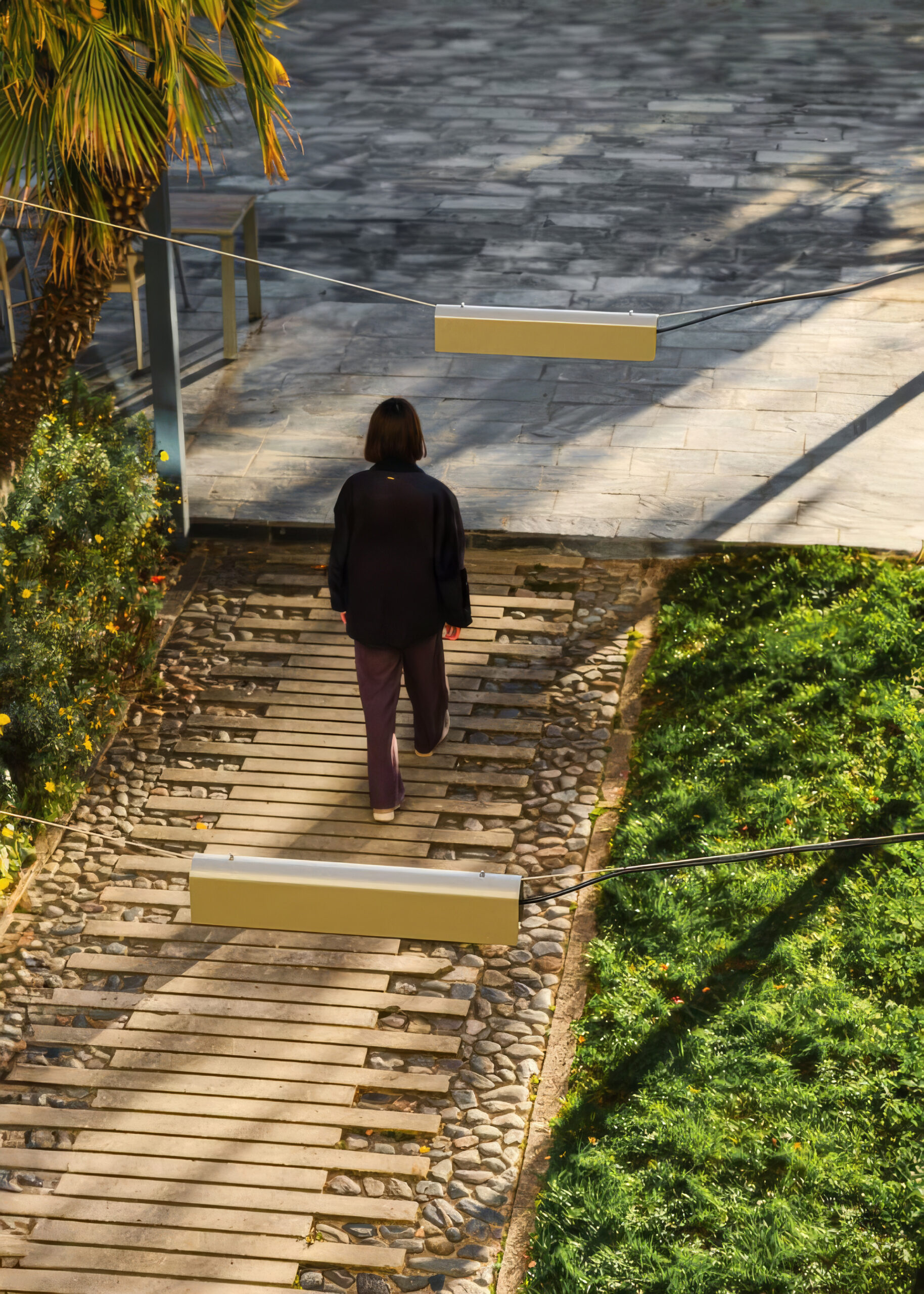

Louis urban luminaire has a slender linear character with elegant symmetrical forms. Inspired by Louis Kahn’s reflections on space and light, and on the order dictated by geometry, which is ultimately responsible for form. An element that carefully manipulates light to trace, in suspension, free compositions in green environments and pedestrian spaces.
Please note: Images may depict products with optional upgrades not included as standard. Some images are architectural renders and are intended for illustrative purposes only. Actual product appearance may vary
Catenary (suspended cable) installation only
Two lighting alternatives for symmetrical light control
Protective screen for weather resistance
Wide choice of light distributions: Type II, II+II, V
Remote dimming via 1-10V/0-10V or DALI protocols
Luminaire body in extruded aluminium 6063 T5 and anodised injection-moulded aluminium AC-47100 with powder-coated finish.
Tempered optical glass diffuser with silicone sealing gaskets.
A2 stainless steel hardware and metal cable gland.
Compatible with steel catenary cable of diameter 4-6mm (cable not included).
18 LEDs: 20W, 29W, 40W
36 LEDs: 40W, 57W, 80W
Luminaire weight: 4.5kg (18 LEDs) / 8kg (36 LEDs)
Service life: TM21 L90 (10k) > 100,000 h
Cover and body colour options (e.g. medium grey or white cover; black body)
Colour temperatures: 2200K-3000K, plus PC Amber
Constant Luminous Management (CLM), temperature control and surge protection
DALI and 1-10V/0-10V dimming
Complies with Australian and New Zealand requirements under the Regulatory Compliance Mark (RCM), including electrical safety and EMC regulations. Certified according to applicable AS/NZS standards through recognised independent laboratories. RoHS compliant for electrical and electronic components. IP66 rated and IK08 impact rated. Class I electrical protection. Luminaires comply with AS/NZS 60598 and AS/NZS CISPR 15 requirements for safety and electromagnetic compatibility.
