The Arne S urban floodlight complements low-bay lighting. A reduced-size floodlight that is very useful for illuminating buildings, gardens or pathways, designed to respond to the needs of renaturalized urban spaces.
Products /
The Arne S urban floodlight complements low-bay lighting. A reduced-size floodlight that is very useful for illuminating buildings, gardens or pathways, designed to respond to the needs of renaturalized urban spaces.
Please note: Images may depict products with optional upgrades not included as standard. Some images are architectural renders and are intended for illustrative purposes only. Actual product appearance may vary
Reduced-size floodlight for low-bay lighting

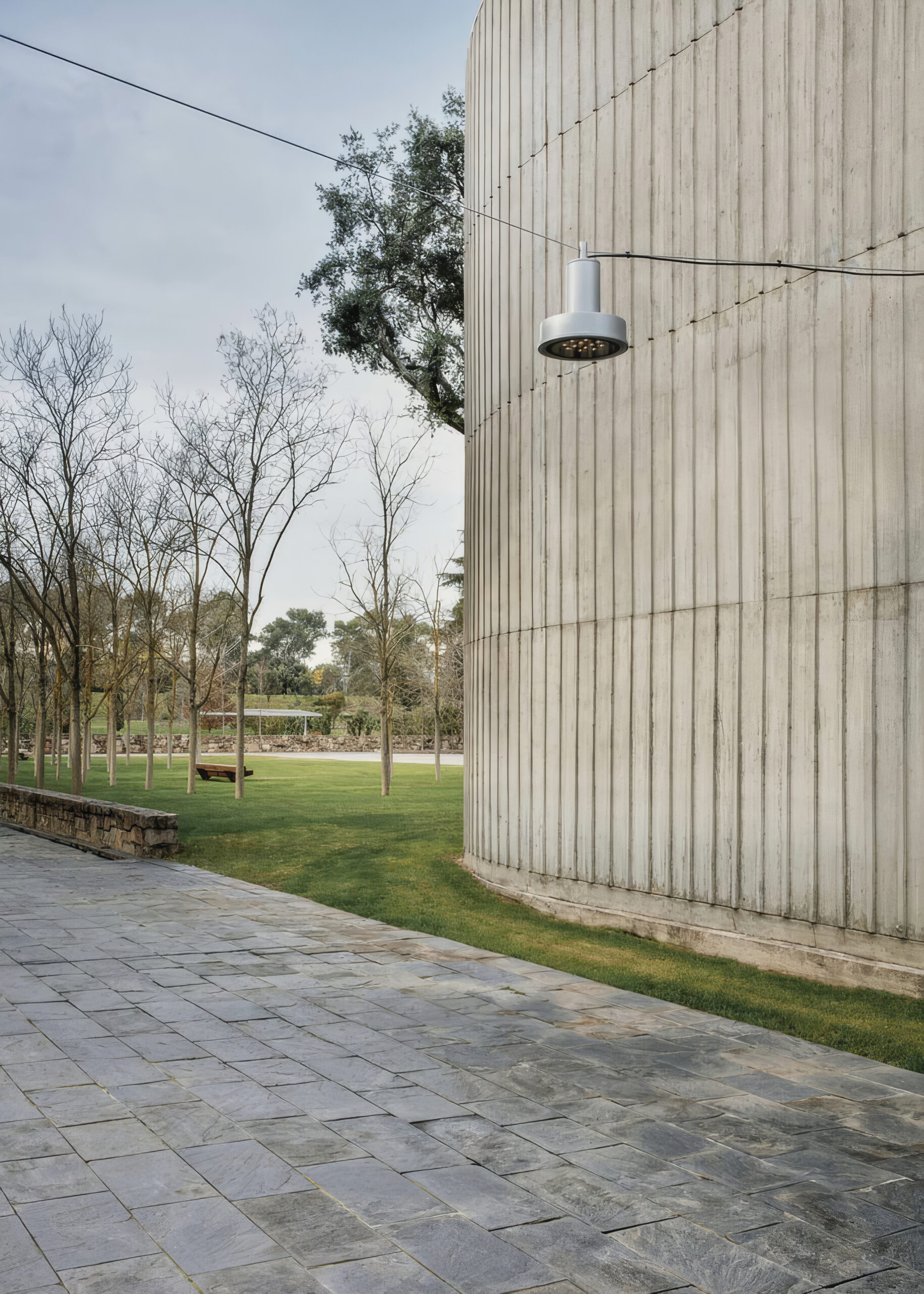

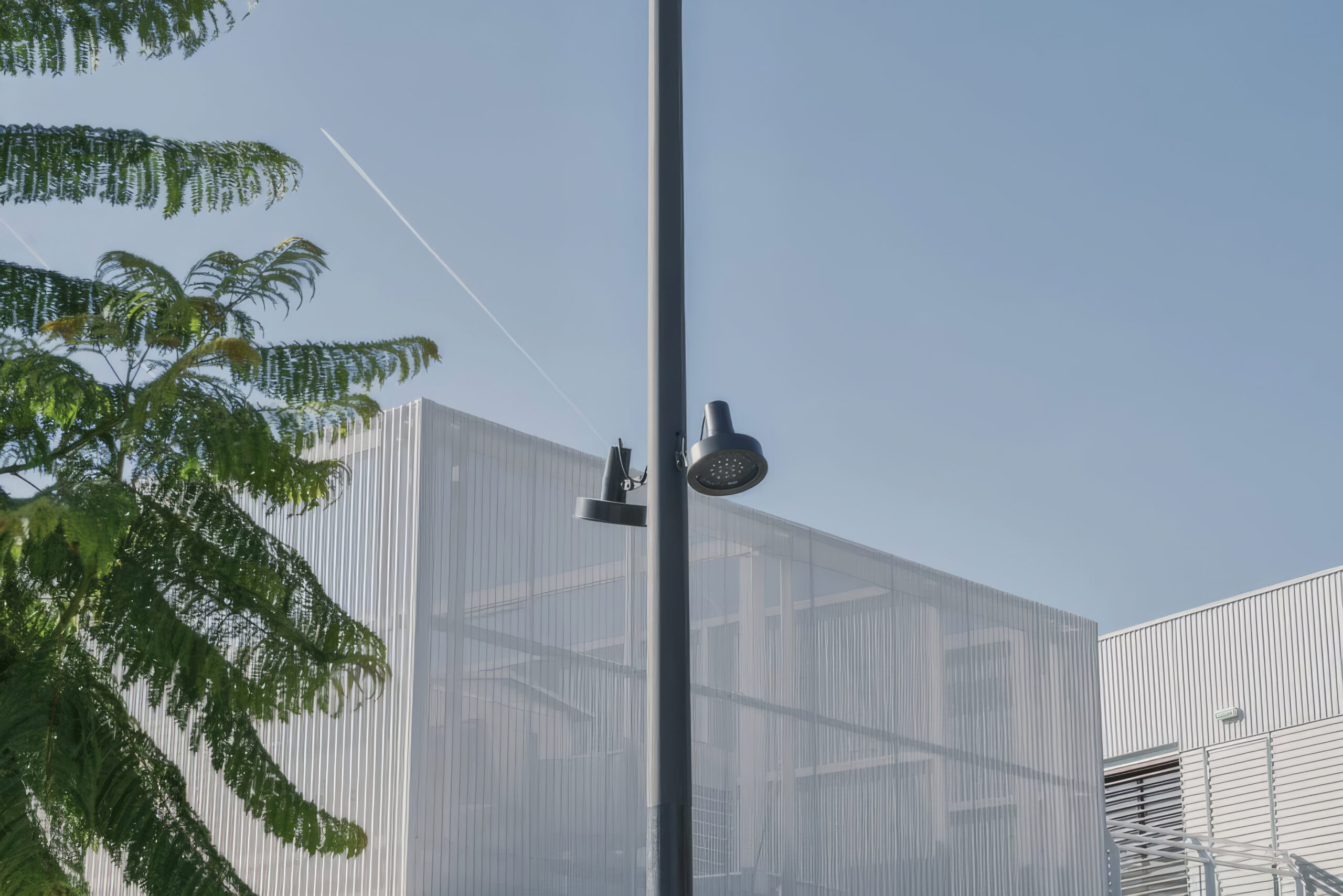

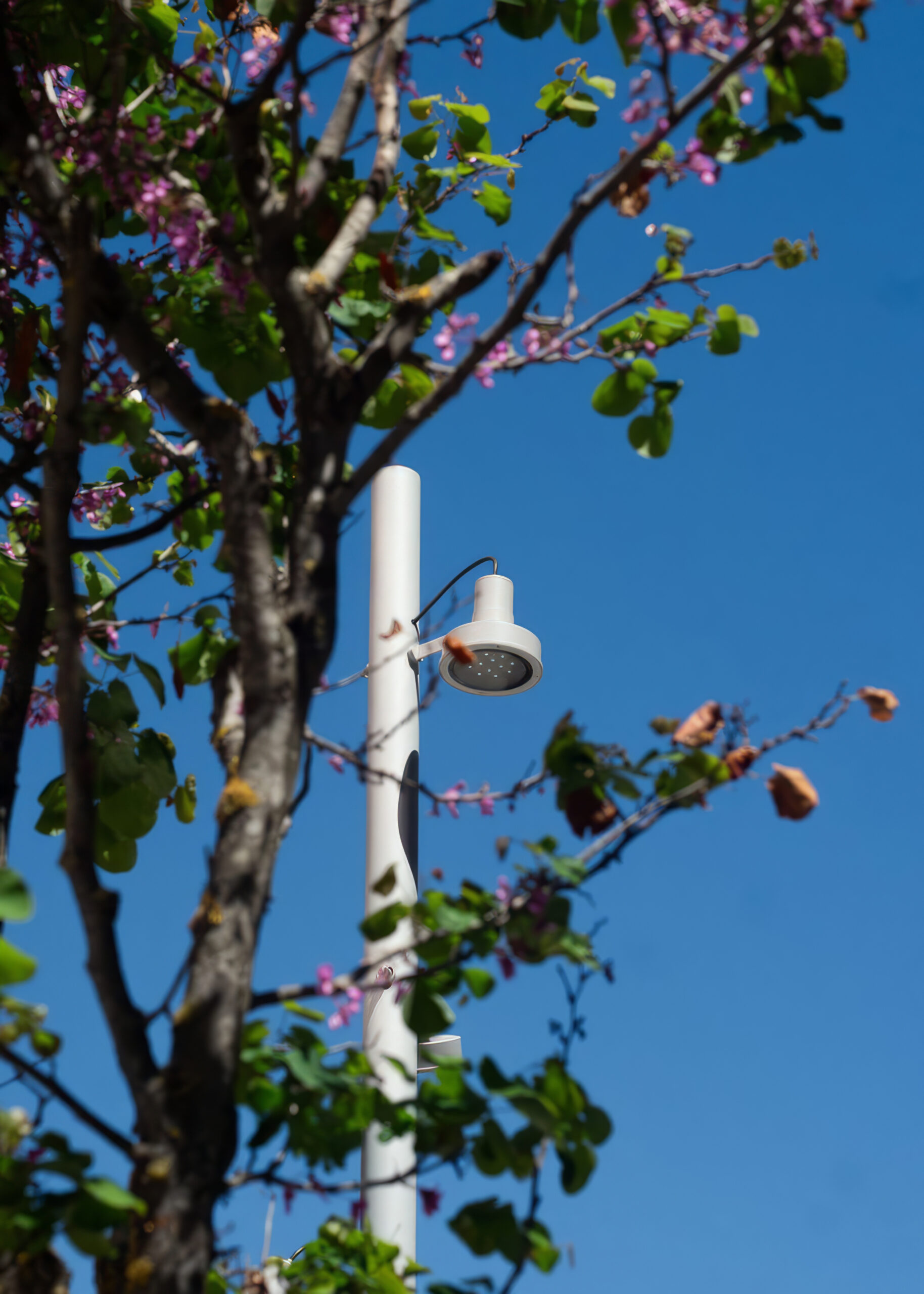

Column, catenary, wall-mounted or suspended pendant installation
Technical and decorative distribution alternatives
Wide choice of light distributions: Wideflood, Flood, Medium, Spot, Oval, Lightblade, Type II-V
Remote dimming via 1-10V/0-10V or DALI protocols
Anodised injected aluminium EN-AC-44100 floodlight body with powder-coated finish.
Interior ABS-PC plastic reflector and tempered optical glass diffuser.
A2 stainless steel hardware and metal cable gland.
Column-mount brackets and flanges in AISI304 stainless steel and powder-coated cast aluminium; columns made from hot-dip galvanised S-275 JR Class 1 steel.
8 LEDs: 11W, 15W, 20W
12 LEDs: 15W, 21W, 29W
COB: 19W, 27W, 37W
Column heights: 3.60m, 4.40m, 5.20m, 6.00m
Floodlight weight: approx. 3.7kg
Service life: TM21 L90 (10k) > 100,000 h
Column, catenary, wall-mounted and suspended pendant lighting accessories
Colour temperatures: 2200K-4000K, plus PC Amber
Constant Luminous Management (CLM), temperature control and surge protection
Life Cycle Assessment (LCA) environmental impact report available
Complies with Australian and New Zealand requirements under the Regulatory Compliance Mark (RCM), including electrical safety and EMC regulations. Certified according to applicable AS/NZS standards through recognised independent laboratories. RoHS compliant for electrical and electronic components. IP66 rated and IK08 impact rated. Class I electrical protection. Luminaires comply with AS/NZS 60598 and AS/NZS CISPR 15 requirements for safety and electromagnetic compatibility.
