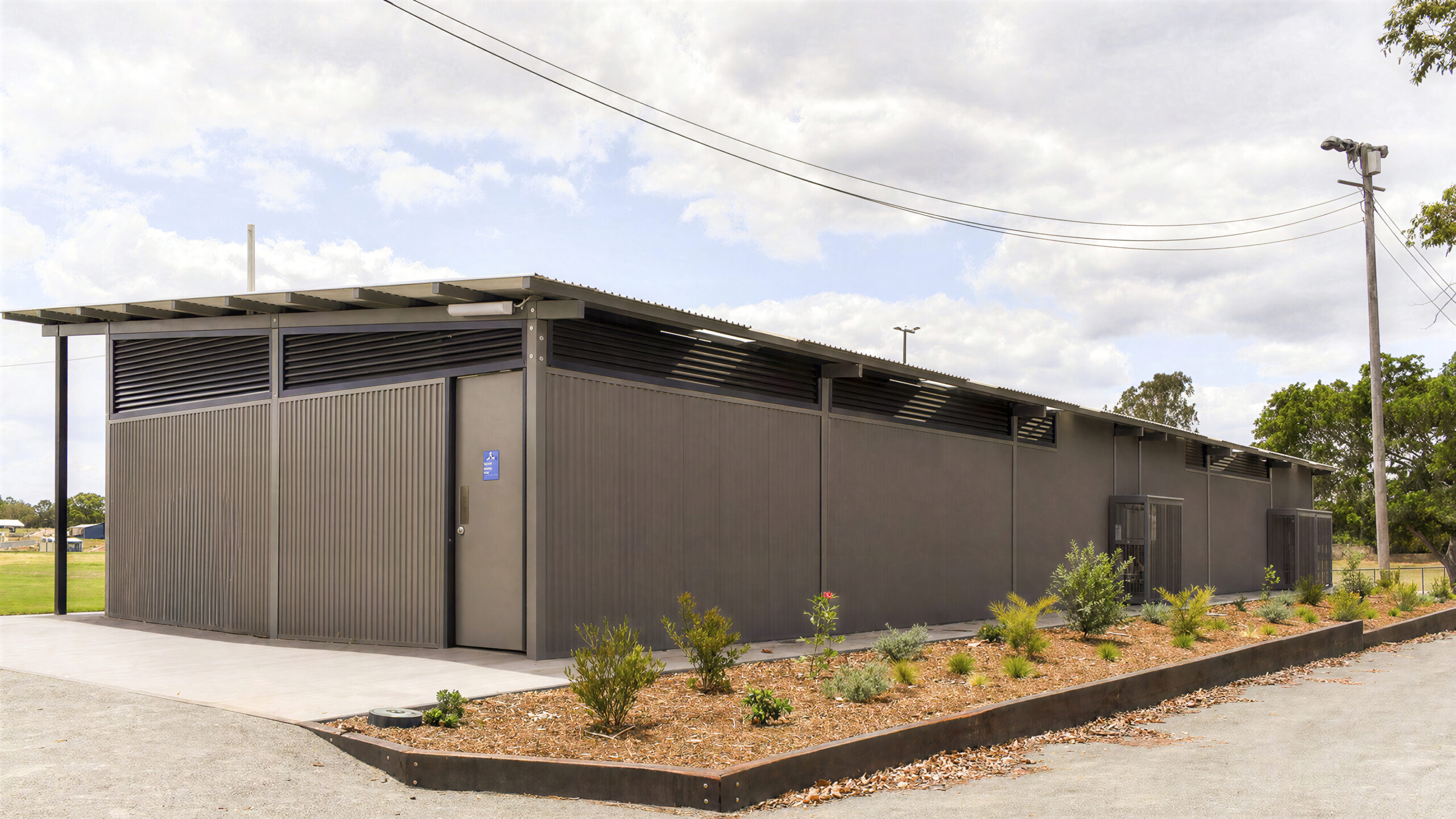

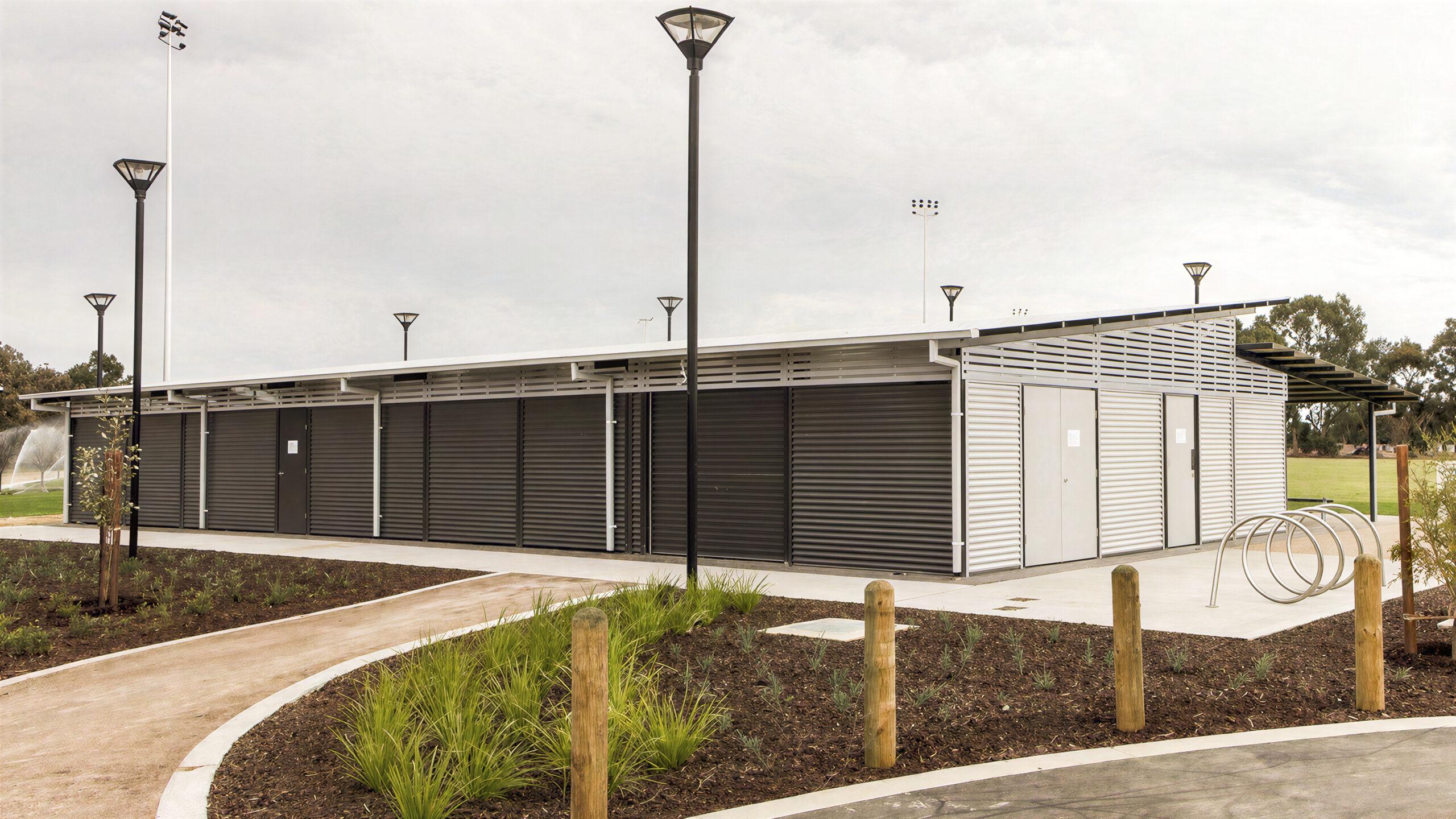

Part of Landmark’s on-slab sports facility range for teams up to 24 players, the K8102 Series pairs two change rooms with a dedicated umpires’ room, equipment store, covered kiosk area and service duct. Its steel-framed, Colorbond®-clad construction is built to withstand heavy community use while giving officials their own secure, self-contained space.
Please note: Images may depict products with optional upgrades not included as standard. Some images are architectural renders and are intended for illustrative purposes only. Actual product appearance may vary

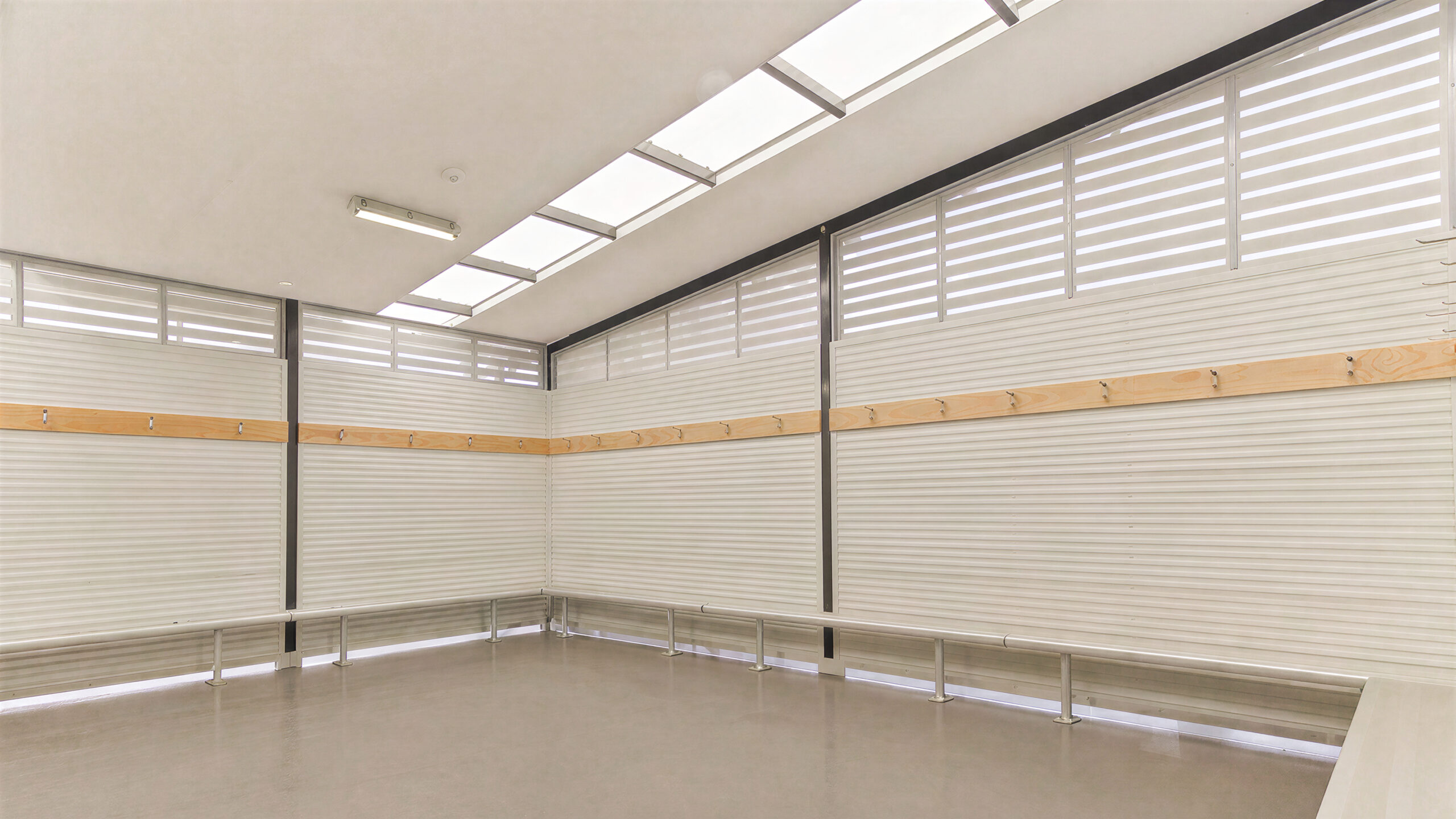

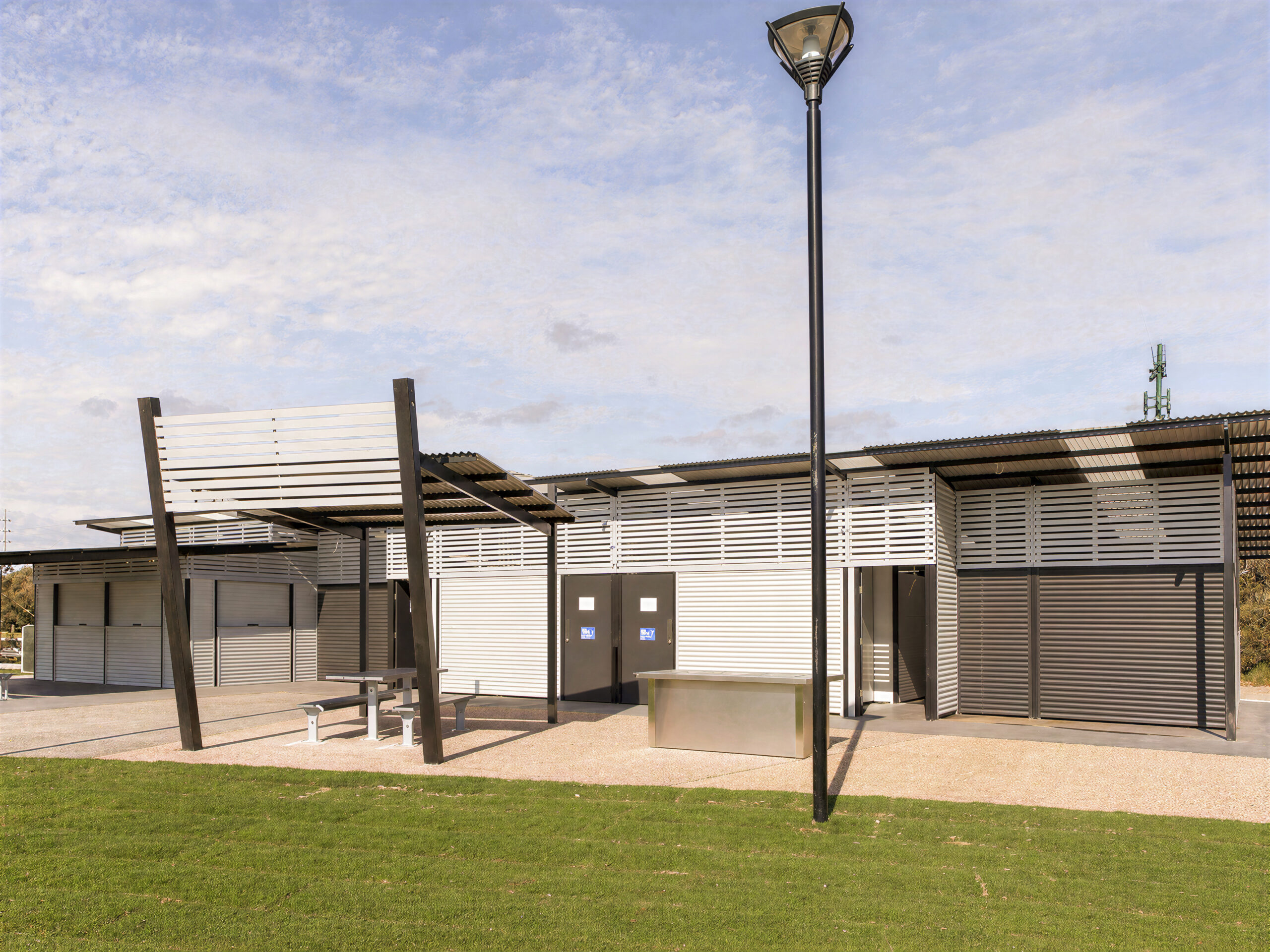

Two change rooms plus a dedicated umpires’ room, equipment store and covered kiosk area
Skillion roof standard
Lockable service duct with brass vandal-proof tap and instant water heater
Umpires’ room fitted with a security roller door
Equipment store with double-hinged Colorbond® clad doors
Colorbond® custom orb roof sheeting (XRW grade) with polycarbonate skylight inserts, over a hot-dipped galvanised and powder-coated steel roof frame and posts.
Colorbond® custom orb external walls on galvanised steel wall frames; XRW grade Colorbond® Maxrib internal wall cladding.
Powder-coated aluminium ventilation screens; concrete floor with R10 slip-resistant broom finish.
Colorbond® gutters and downpipes to ground; heavy-duty door closers, push/pull handles, indicator locks and deadlocks.
Stainless steel anti-vandal fastening system; remaining fixings galvanised.
Umpires’ room fitout: aluminium composite sheeting to shower cubicle walls, veneer panel partitioning, aluminium bench seating, stainless steel standard pan with plastic cistern, stainless steel basin with Colorbond® shroud, self-closing water tap.
K8102 Series – umpires’ room (3.85m x 3.05m / 13.8m2 clear internal space) plus equipment store (3.85m x 2.05m / 7.9m2 clear internal space)
Skillion roof standard
Custom solutions available
Alternative internal/external cladding (corrugated steel, plywood, hardwood weatherboards, ACM or other)
Timber ventilation screens
Powder-coating or two-pack finishes on posts and cladding
Stainless steel fixtures; Colorbond® gutters and PVC downpipes plumbed to water tanks
Selection of privacy and ornamental screens; solar lighting and power options
100% Australian made and manufactured by Landmark Products under an ISO 9001 Quality Management System and BS OHSAS 18001:2007 Occupational Health and Safety certification. Structures meet or exceed the National Construction Code and relevant Australian Standards (including AS1170 Structural Design Actions, AS1428.1 Design for Access and Mobility, AS1720 Timber Structures and AS4100 Steel Structures). Fitted with a stainless steel anti-vandal fastening system and a traceability plaque for easy identification. Structural rating upgrades available for cyclonic regions and roofing upgrades for highly corrosive environments. Backed by a 10-year structural warranty, extended to 20 years when supplied and installed by Landmark or a Landmark-approved installer.
