An affordable, adaptable unisex change facility delivered in kit form for on-slab construction, the K8104 caters for the needs of both male and female teams with two change rooms, each paired with its own umpires’ room accessed via a bi-fold door. Built to the same robust specification as the larger K8105, it suits clubs needing female-friendly facilities at a smaller scale.
Please note: Images may depict products with optional upgrades not included as standard. Some images are architectural renders and are intended for illustrative purposes only. Actual product appearance may vary
Two change rooms, each with a matching umpires’ room accessed via bi-fold door
Skillion roof standard
Lockable service duct with brass vandal-proof tap and instant water heater
Vandal-resistant lighting to change rooms
AS1428.1-compliant cubicle fitouts
Colorbond® custom orb roof sheeting (XRW grade) with polycarbonate skylight inserts, over a hot-dipped galvanised and powder-coated steel roof frame and posts.
Colorbond® custom orb external wall cladding on galvanised steel wall frames; XRW grade Colorbond® Maxrib internal wall cladding.
Pre-hung XRW grade Colorbond® steel-clad solid-core external cubicle doors.
Concrete floor with R10 slip-resistant broom finish; Colorbond® gutters and downpipes to ground.
Heavy-duty door closers, push/pull handles, indicator locks and deadlocks; stainless steel anti-vandal fastening system; remaining fixings galvanised.

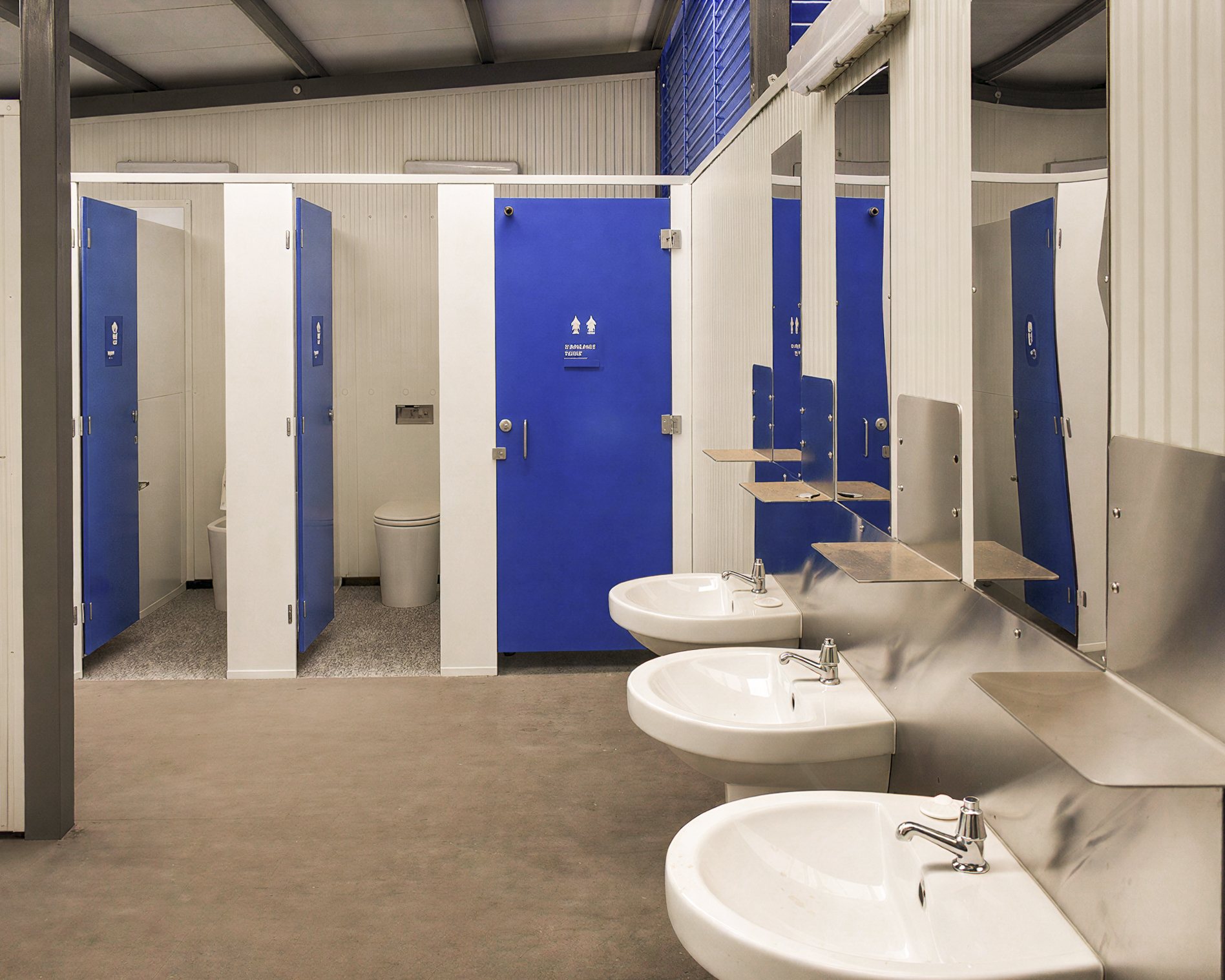

Change room fitout: veneer panel partitioning, ACM sheeting to shower cubicle walls, timber or aluminium bench seating, grade 304 stainless steel pans, basins, shelves and mirrors, chrome-plated coat/hat hooks, self-closing WELS rated water taps and fixed shower heads.
Umpires’ rooms: aluminium bench seating, stainless steel standard pan with plastic cistern, aluminium composite sheeting to shower cubicle walls, stainless steel basin with Colorbond® shroud.
K8104 Series – two change rooms with two matching umpires’ rooms (each 2.06m x 5.74m / 11.8m2)
Skillion roof standard
Custom solutions available
Alternative internal/external cladding (corrugated steel, plywood, hardwood weatherboards, ACM or other)
Powder-coating or two-pack finishes on posts and cladding
Stainless steel fixtures; Colorbond® gutters and PVC downpipes plumbed to water tanks
Selection of privacy and ornamental screens
Solar lighting and power options
100% Australian made and manufactured by Landmark Products under an ISO 9001 Quality Management System and BS OHSAS 18001:2007 Occupational Health and Safety certification. Structures meet or exceed the National Construction Code and relevant Australian Standards (including AS1170 Structural Design Actions, AS1428.1 Design for Access and Mobility, AS1720 Timber Structures and AS4100 Steel Structures). Fitted with a stainless steel anti-vandal fastening system and a traceability plaque for easy identification. Structural rating upgrades available for cyclonic regions and roofing upgrades for highly corrosive environments. Backed by a 10-year structural warranty, extended to 20 years when supplied and installed by Landmark or a Landmark-approved installer.
For detailed product and service information and downloadable resources,including brochures, warranties, maintenance guides and other documentation, please visit our Resources page.
If you require modifications to a product’s standard specifications, contact our consultants today to discuss a tailored solution for your project.
