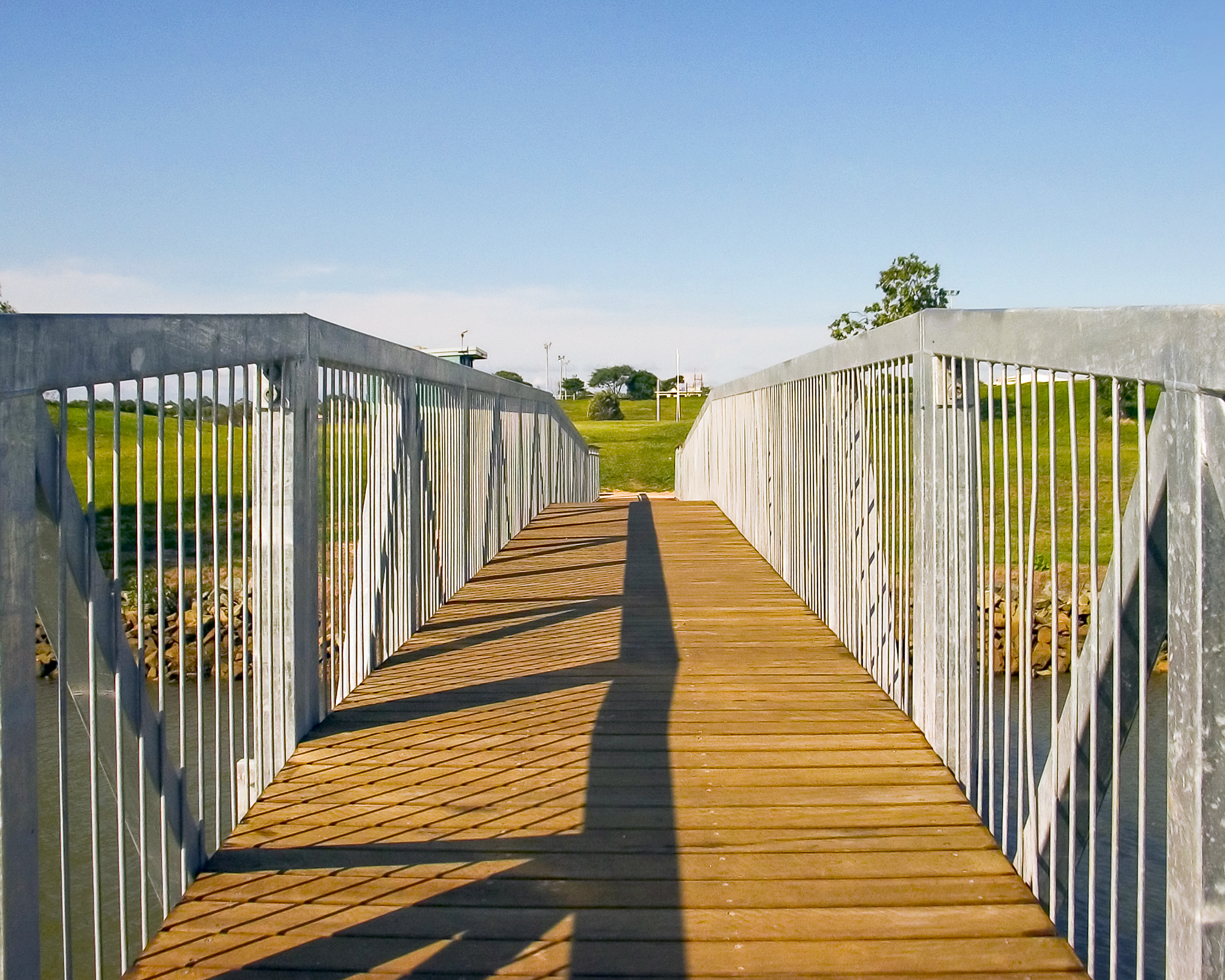

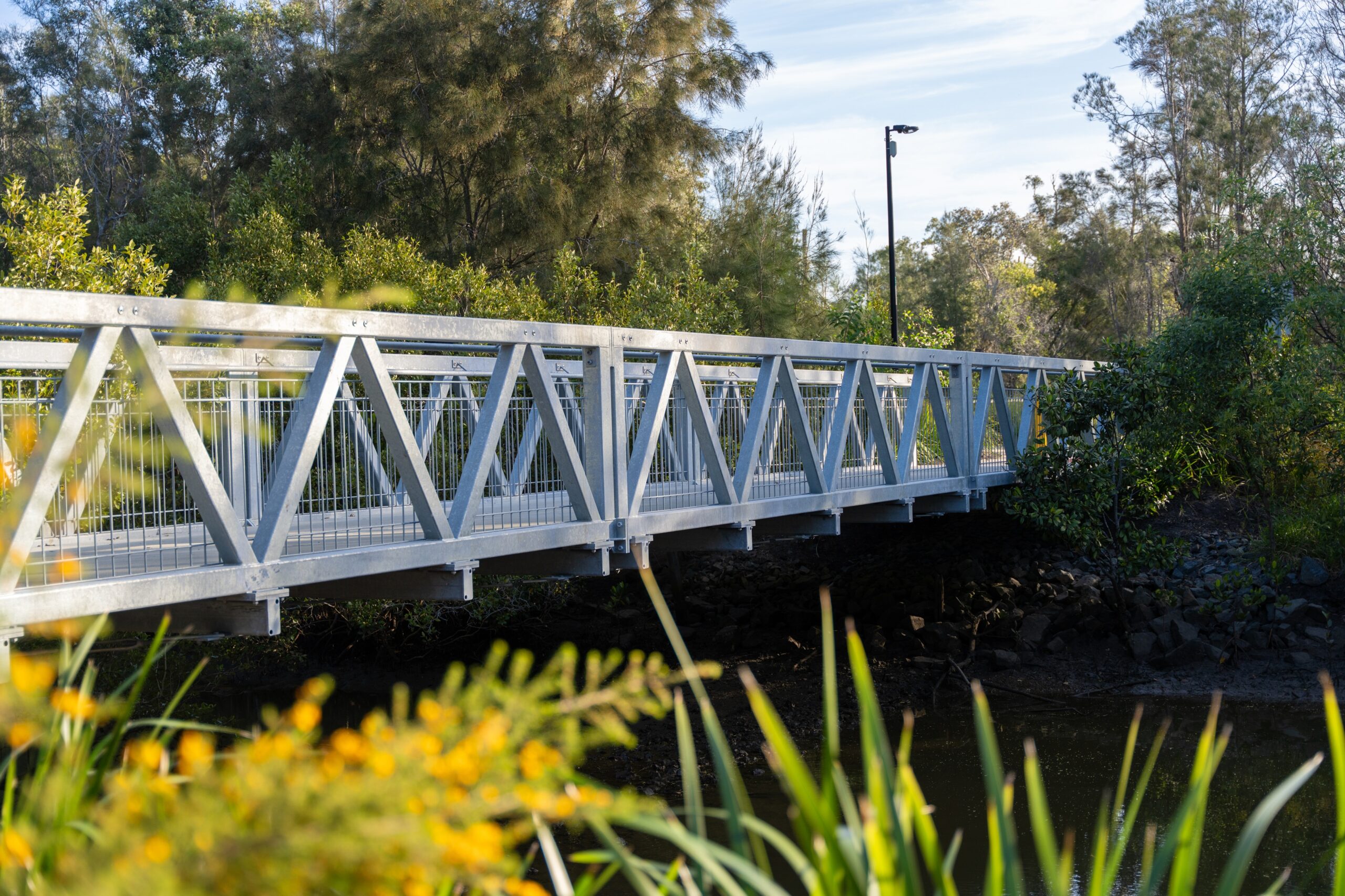

The Murray Series is a steel truss pedestrian bridge engineered for strong, lengthy spans, offering an economical, effective load-bearing solution able to span further than an equivalent I-beam design. Supplied in flat, multi-span, cranked or curved configurations, it’s hot-dip galvanised for long-term durability across Australia’s rivers and waterways.
Please note: Images may depict products with optional upgrades not included as standard. Some images are architectural renders and are intended for illustrative purposes only. Actual product appearance may vary

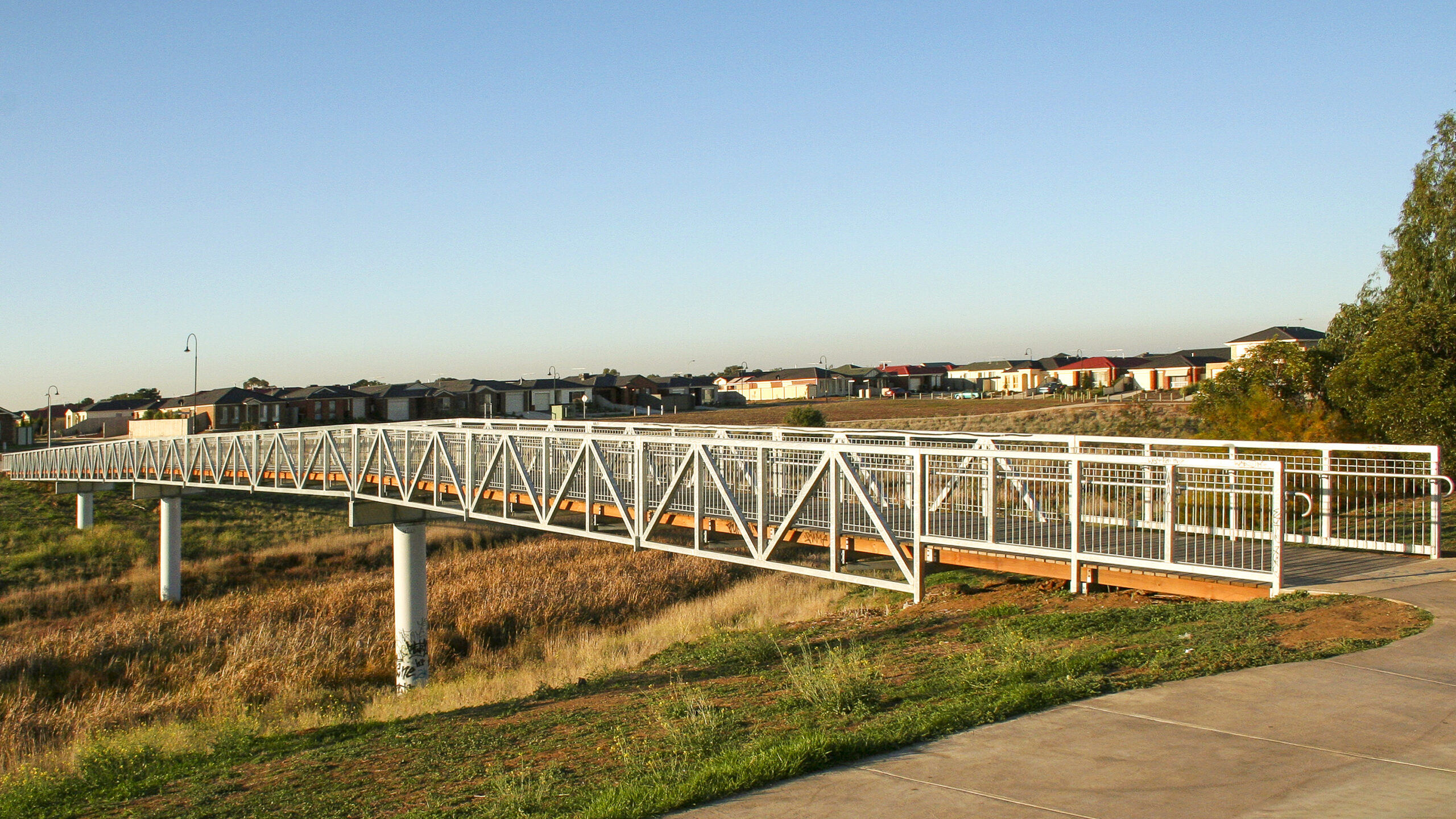

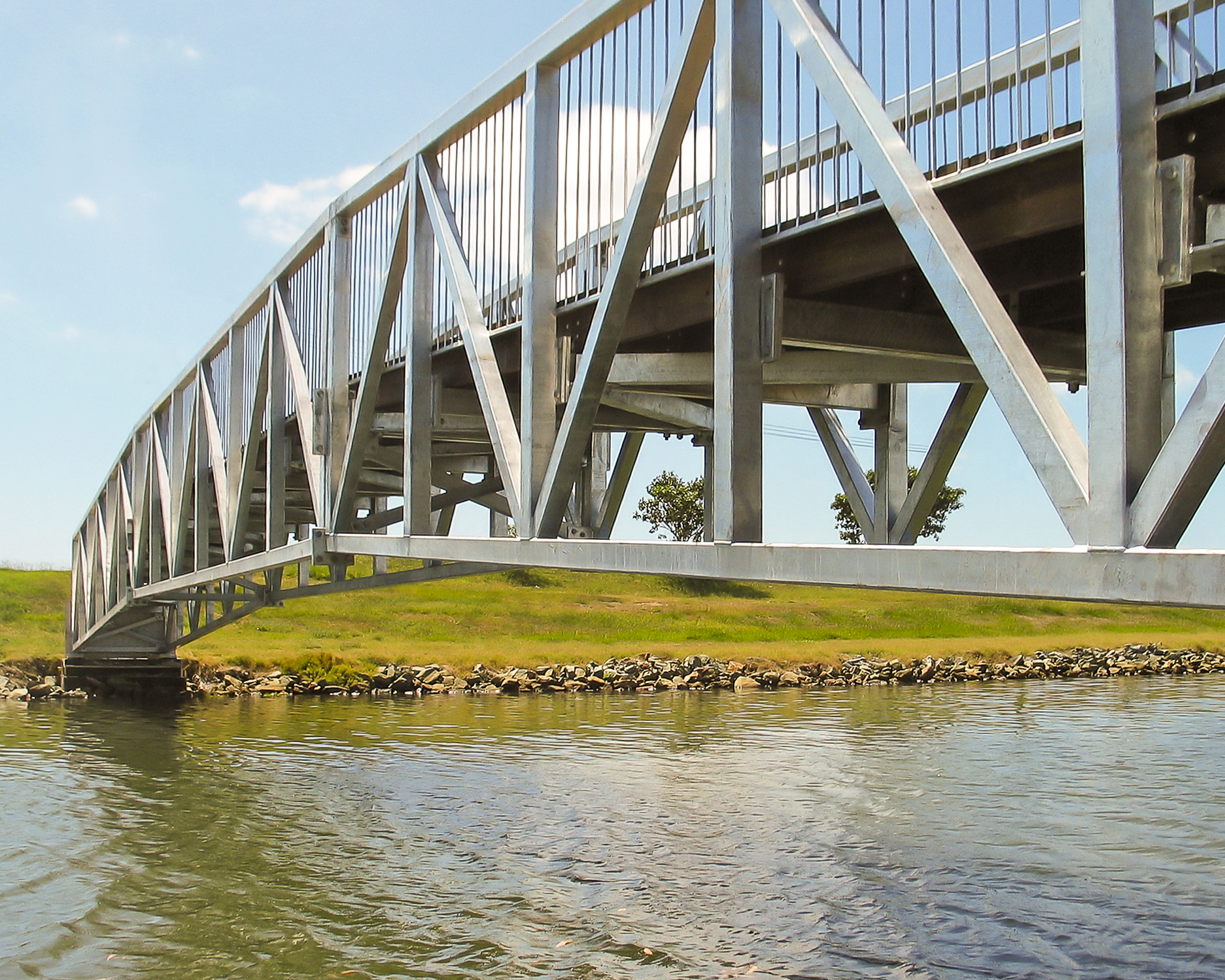

Flat span, flat multi-span, cranked or curved configurations
Longer spans than the Condamine I-Beam Series
Engineered for pedestrian, cycleway, light vehicle (up to 1.0T), standard live load (up to 5kPa) or flood loads (up to 2.0m/sec)
Standard clear widths of 1500mm, 2000mm, 2500mm and 3000mm
Hot-dipped galvanised (HDG) steel beams, bearers and posts.
Joists in HDG steel, hardwood or pine.
Decking in hardwood or FRP open grid mini-mesh.
Baluster panels in pre-fabricated aluminium or HDG steel.
Finishes: HDG to steel members; powder-coating or two-pack epoxy finishes to HDG steel/aluminium elements where requested; factory staining to pine/hardwood members (excluding hardwood decking).
Fixings: galvanised steel fixings; 8.8/S galvanised structural bolts to structural bolted connections; Landmark stainless steel anti-vandal fastening system at appropriate connections.
K1105 Murray Series – Steel Truss
Standard clear widths: 1500mm, 2000mm, 2500mm, 3000mm
Maximum span: up to 24m (span/width dependent)
Engineered to 5kPa live loads; supports flood loads up to 2.0m/sec
Custom solutions available
Wood Plastic Composite (WPC) decking
HDG steel bike rails
HDG accessible grab rails
HDG steel or hardwood accessible kick rails
Hardwood posts
Hardwood or pine cover boards
304/316 grade stainless steel handrails
All hot-dipped galvanised steel manufactured to AS/NZS 4680:2006; hardwood ACQ treated to Hazard Level 4 (F17 or better), pine LOSP treated to Hazard Level 3 (F7). Supplied with professional building application drawings, an independent engineering certificate and complete pier/abutment design (subject to geotechnical report). Manufactured under ISO 9001 and BS OHSAS 18001:2007 certification, meeting or exceeding the National Construction Code and relevant Australian Standards (AS1170 Structural Design Actions, AS1428.1 Design for Access and Mobility, AS1720 Timber Structures, AS4100 Steel Structures). Engineered to 5kPa live loads and up to 2.0m/sec flood loads where required. Backed by a 10-year structural warranty, extended to 20 years when supplied and installed by Landmark or a Landmark-approved installer.
For detailed product and service information and downloadable resources,including brochures, warranties, maintenance guides and other documentation, please visit our Resources page.
If you require modifications to a product’s standard specifications, contact our consultants today to discuss a tailored solution for your project.
