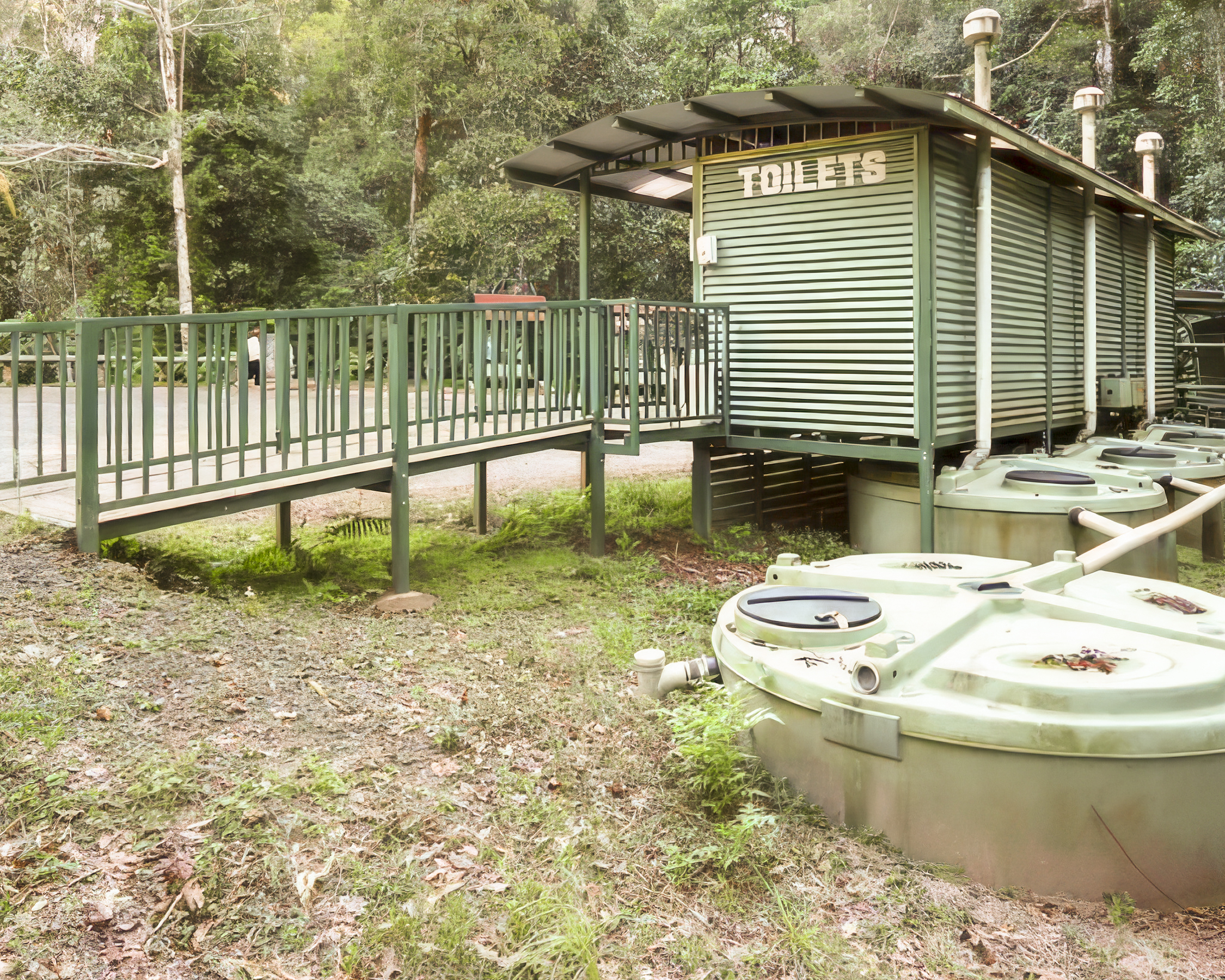

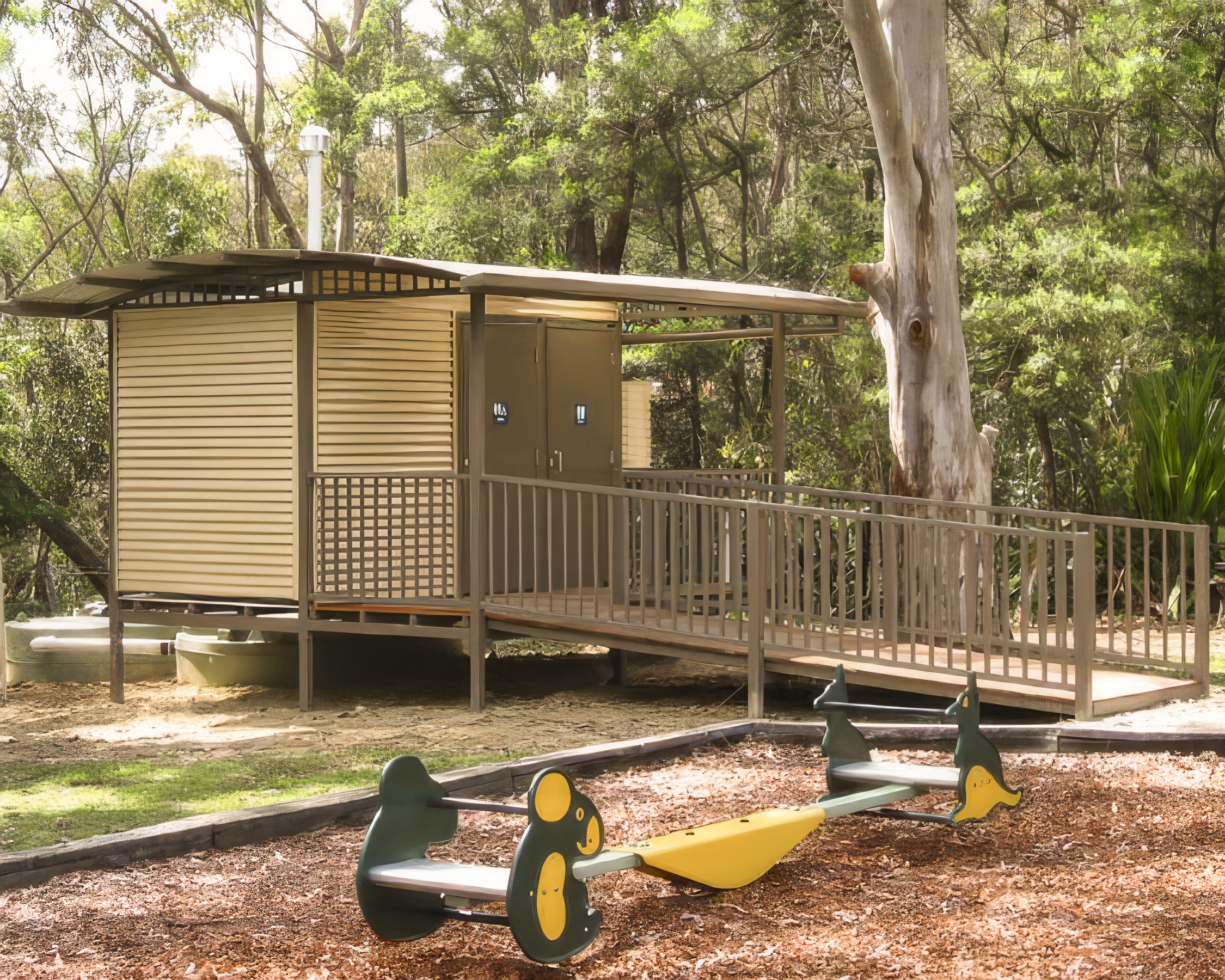

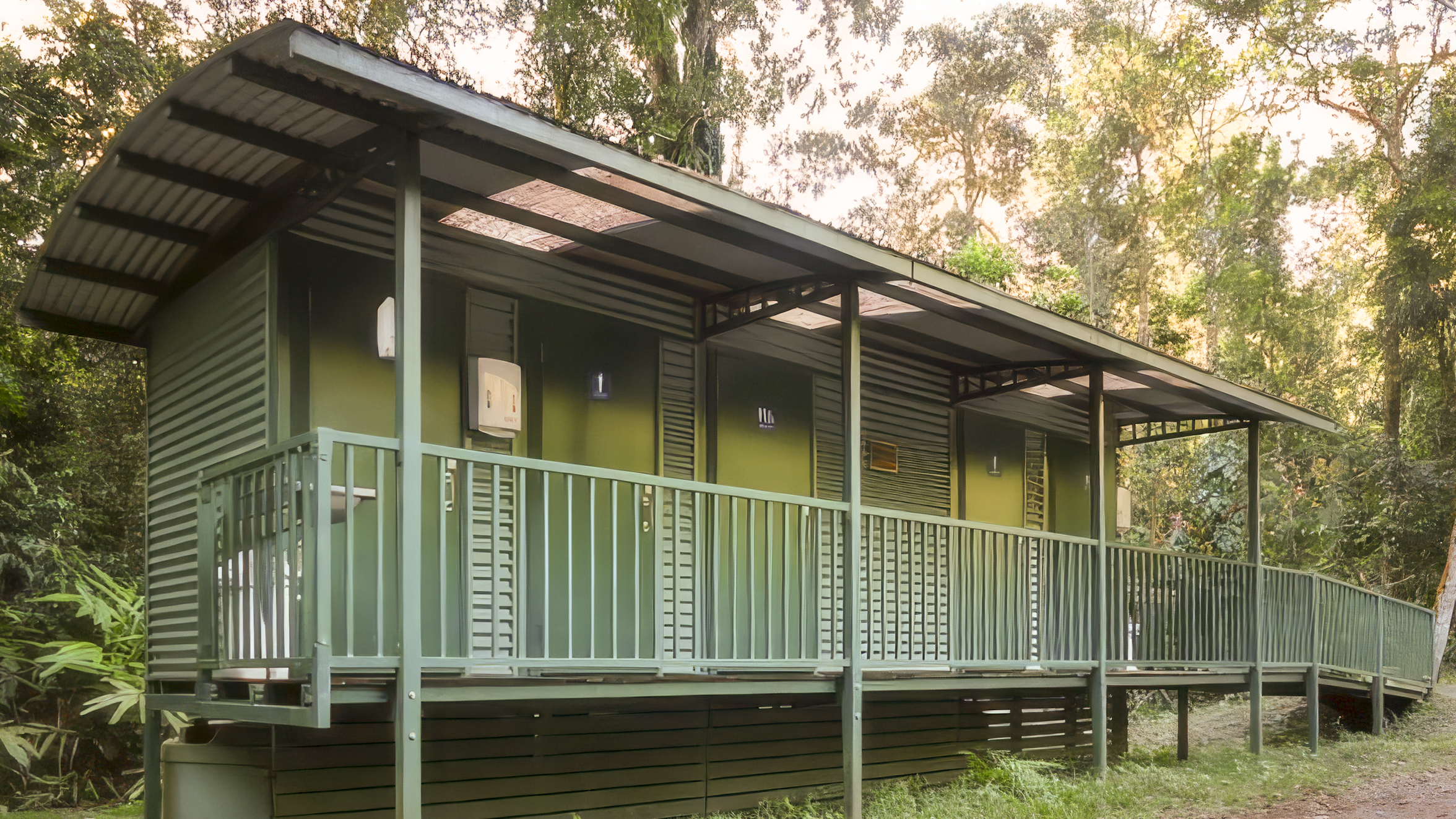

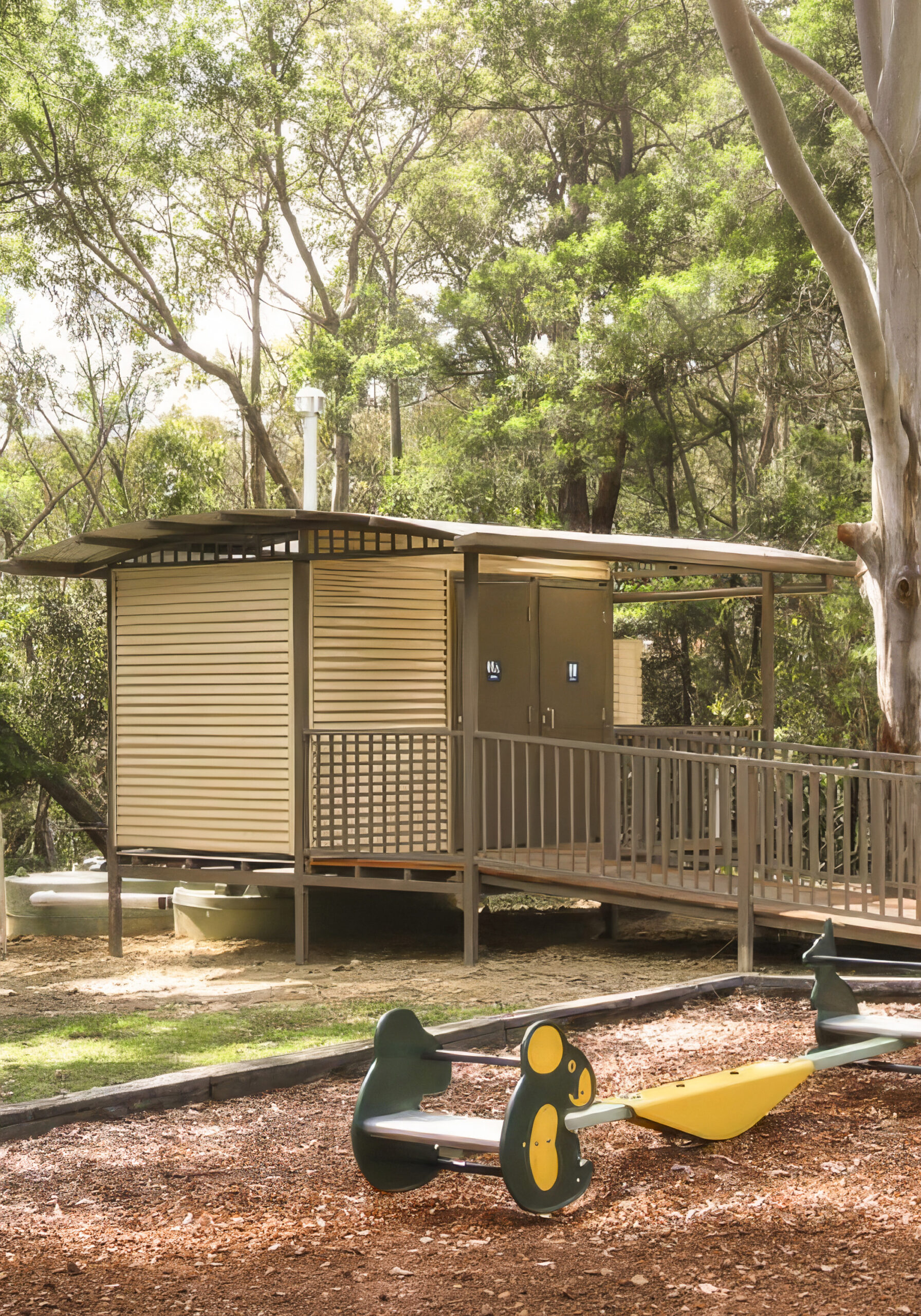

Designed for sloping or rugged sites that may need a water treatment system, the raised steel Carnarvon Series is a robust, stand-alone restroom ideal for out-of-the-way locations. It sits on a raised platform with hardwood decking, a standard 4.5m accessible compliant ramp, and Compressed Fibre Cement (CFC) cubicle flooring.
Please note: Images may depict products with optional upgrades not included as standard. Some images are architectural renders and are intended for illustrative purposes only. Actual product appearance may vary
Gable, skillion or curved roof options
Raised platform construction suited to sloping, rugged or remote sites
Standard 4.5m accessible compliant ramp; hardwood decking for outer floors and ramps
Supplied with professional building application drawings
AS1428.1 Mobility and Access compliant
Hot-dipped galvanised steel posts with steel roof frame, powder-coated finish.
Colorbond® XRW Grade steel internal and external wall sheeting/roofing.
Polycarbonate roof sheeting for natural lighting; Compressed Fibre Cement (CFC) cubicle flooring; hardwood decking for outer floors and ramps.
Steel-clad doors; in-ground posts; stainless steel anti-vandal fastening system, door closer, door indicator bolts, stainless steel push/pull plates and access signage.
K9101 – 1 Accessible cubicle
K9105 – 1 Accessible cubicle + 1 Female Ambulant + 1 Male Ambulant
K9106 – 2 Accessible cubicles + 1 Female Ambulant + 1 Male Ambulant
K9108 – 2 Accessible cubicles + 1 Female Ambulant + 1 Male Ambulant + 2 Unisex cubicles.
K9109 – 1 Accessible cubicle + 1 Female Ambulant + 1 Male Ambulant + 1 Unisex cubicle.
Custom cubicle solutions available
Treated plywood internal wall sheeting
Colorbond® Ultra Grade internal/external wall sheeting and roofing
Structural rating upgrade beyond N3 (W41)
Stain colour for hardwood decking; paint colour for internal floors; two-pack epoxy paint for steel
Stairs and access ramp modules; below-deck walls/grates and cladding
Waste treatment systems and water tanks
Urinals
100% Australian made and manufactured by Landmark Products under an ISO 9001 Quality Management System and BS OHSAS 18001:2007 Occupational Health and Safety certification.
Structures meet or exceed the National Construction Code and relevant Australian Standards (including AS1170 Structural Design Actions, AS1720 Timber Structures and AS4100 Steel Structures), are designed to CPTED (Crime Prevention Through Environmental Design) principles, use galvanised steel manufactured to AS/NZS 4680:2006, and are AS1428.1 Mobility and Access compliant.
Backed by a 10-year structural warranty (extended to 20 years when supplied and installed by Landmark or a Landmark-approved installer).
For detailed product and service information and downloadable resources,including brochures, warranties, maintenance guides and other documentation, please visit our Resources page.
If you require modifications to a product’s standard specifications, contact our consultants today to discuss a tailored solution for your project.
Speak with a Landmark Project Consultant today and discover the right solution for your next project. Request your consultation now.
