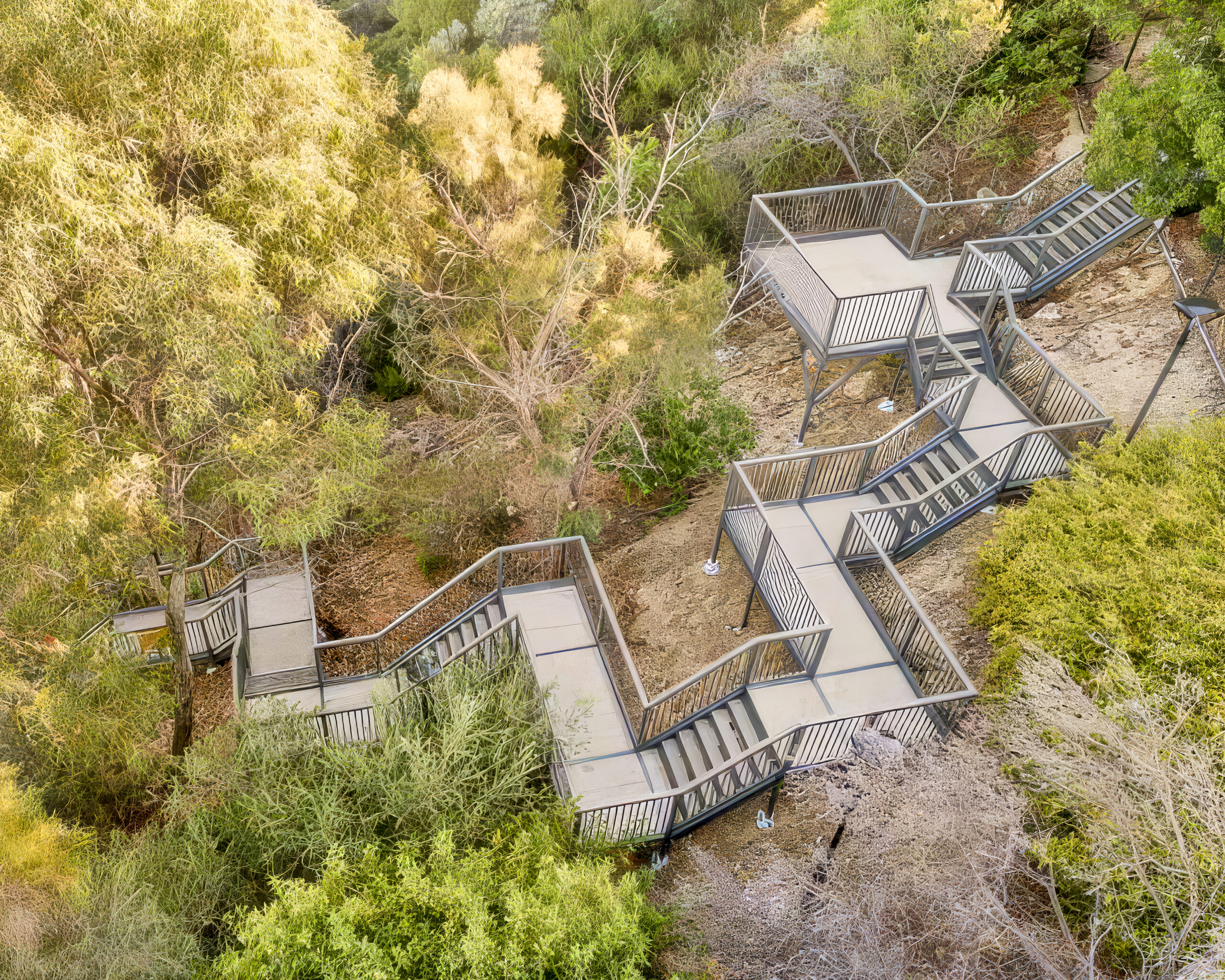

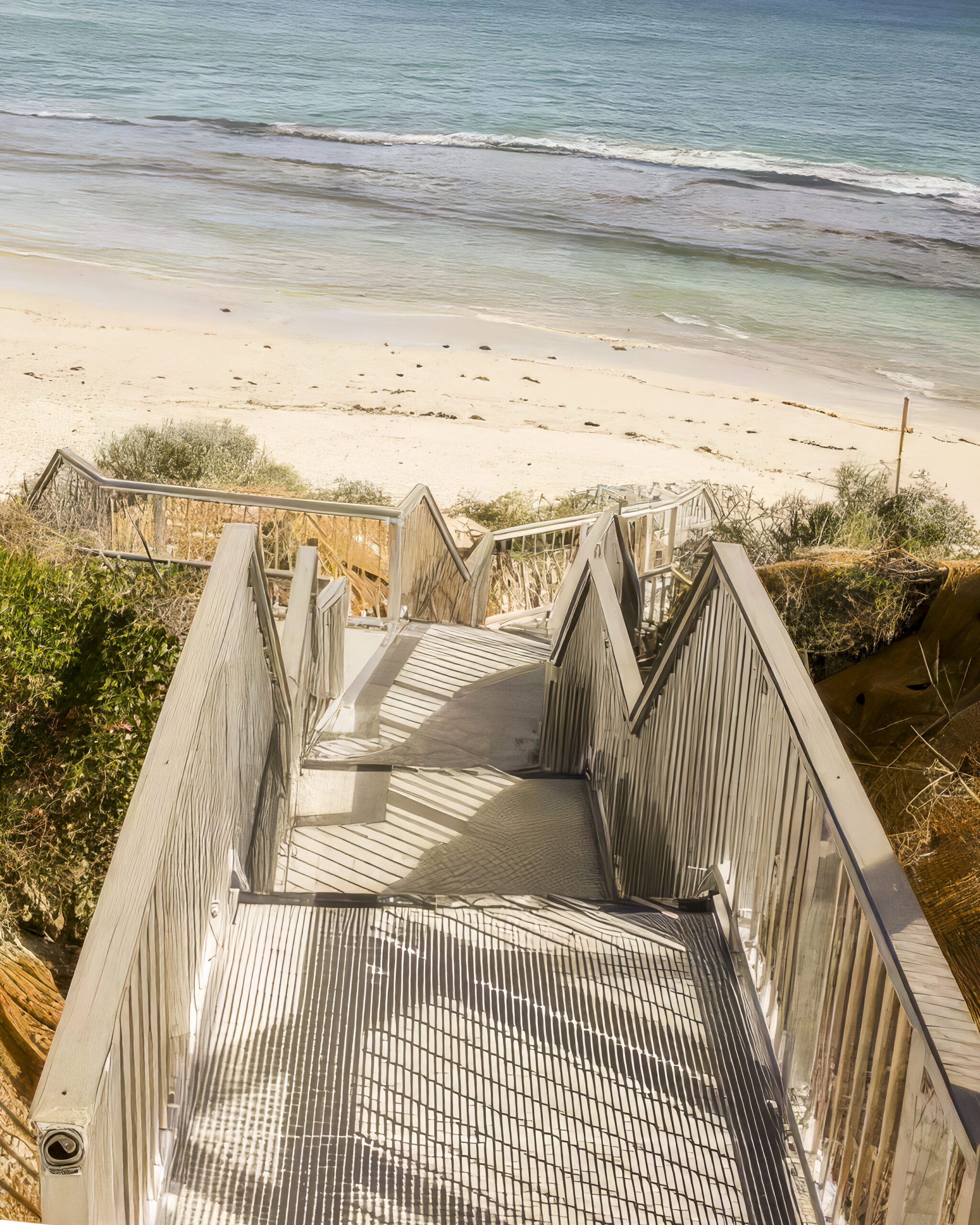

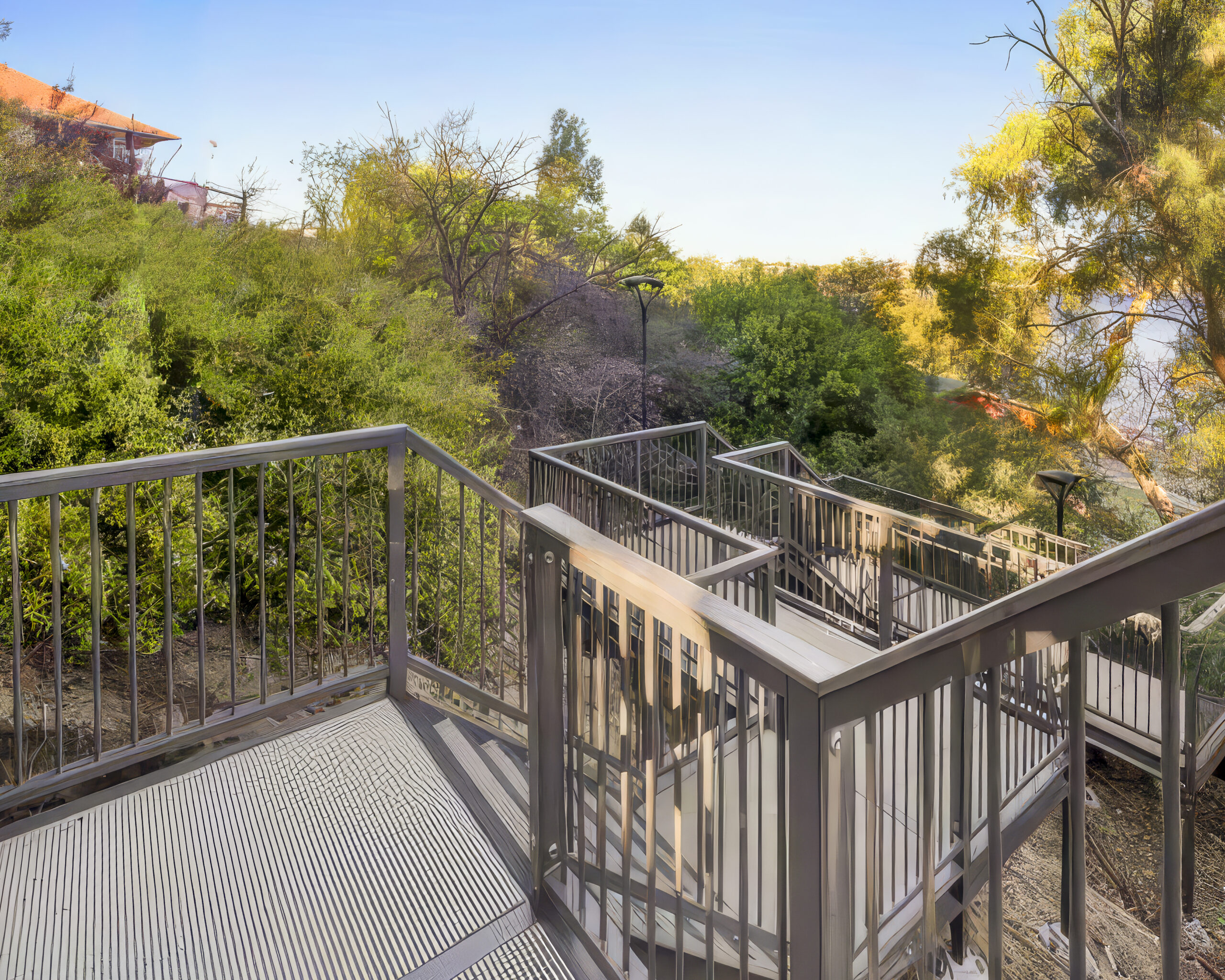

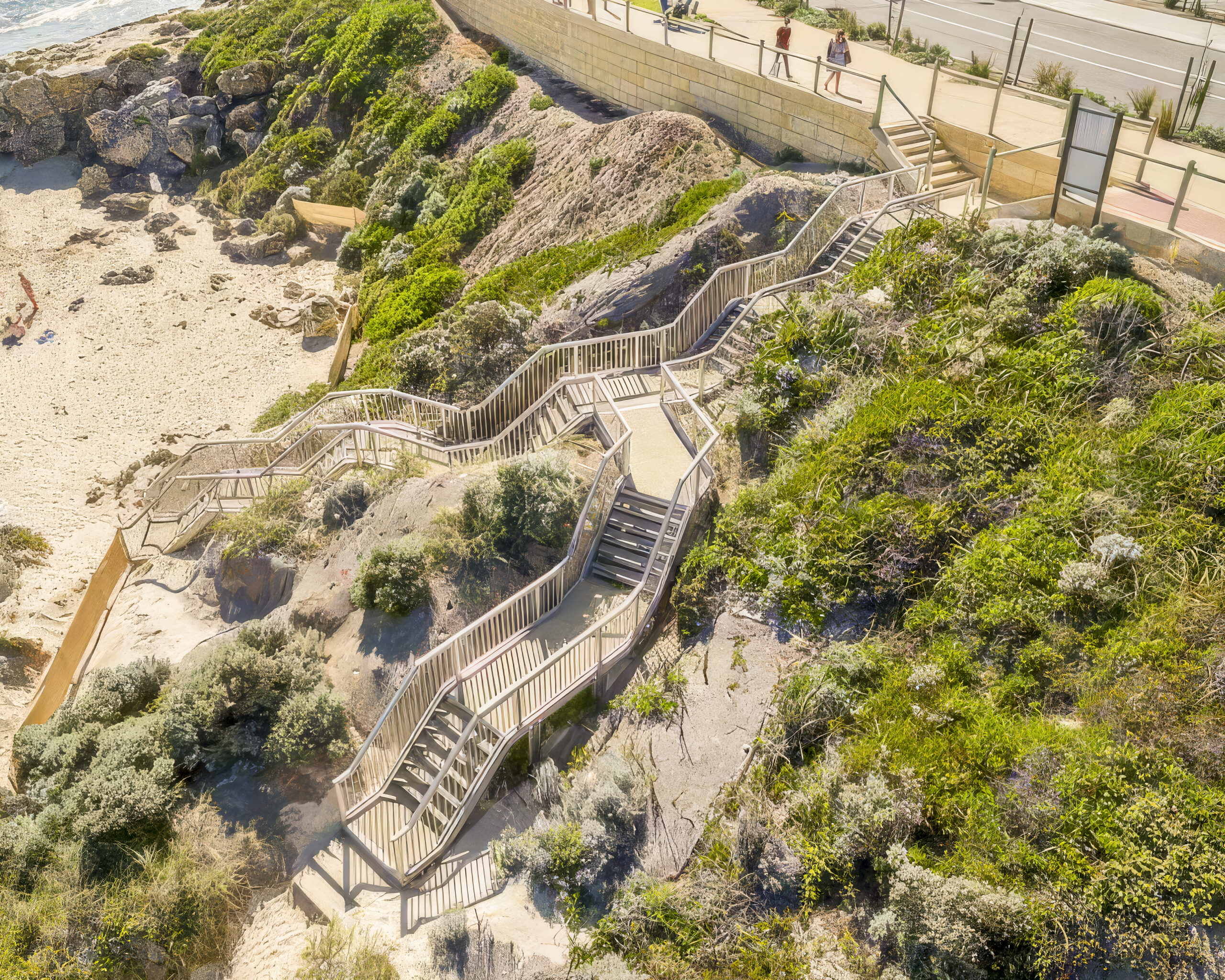

A long-life, adaptable aluminium modular access system, the Albany Series is an anti-corrosive, low-maintenance solution for harsh, hard-to-access locations such as beaches and dunes. Individual straight, angled and stair modules bolt together on site to create boardwalks, viewing platforms and staircases, and the entire structure can be disassembled, relocated and reused.
Please note: Images may depict products with optional upgrades not included as standard. Some images are architectural renders and are intended for illustrative purposes only. Actual product appearance may vary
Modular kit-form construction combining straight, angled landing and stair modules
Corrosion-resistant, suited to beach and coastal environments
Relocatable, reusable and recyclable
Fast, low-disruption on-site assembly
Modular aluminium frame.
Fibre Reinforced Plastic (FRP) grate decking (9mm aperture) as standard; hardwood or Wood Plastic Composite (WPC) decking available.
Powder coating or two-pack epoxy paint finishes; a selection of cap-rails in WPC or timber.
Stainless steel fixings; stainless steel anti-vandal fastening system where applicable.
K1180 Albany Series – Aluminium Modular
Straight modules: 1.35m or 2m clear width x 1.0/2.0/3.0/4.0m standard lengths
Angled modules: 1.35m or 2m clear width x 30 deg/45 deg/60 deg/90 deg standard angles
Stair modules: 1.35m or 2m clear width x 0.6/1.2/1.8/2.4/3.0/3.6m standard sizes
Pre-engineered to 3kPa loading
Custom solutions available
Hardwood decking (choice of stain colour tone)
Wood Plastic Composite (WPC) decking
Choice of hand and kick rails in steel, aluminium or timber
Disabled access rails; bicycle rails
Specialised (Diamond) piers for sensitive or remote sites
All hot-dipped galvanised steel manufactured to AS/NZS 4680:2006; hardwood select grade and ACQ treated. Pre-engineered to 3kPa loading, supplied with professional building application drawings, an independent engineering certificate and complete pier/abutment design (subject to geotechnical report). Manufactured under ISO 9001 and BS OHSAS 18001:2007 certification, meeting or exceeding the National Construction Code and relevant Australian Standards (AS1170 Structural Design Actions, AS1428.1 Design for Access and Mobility, AS1720 Timber Structures, AS4100 Steel Structures). Backed by a 10-year structural warranty, extended to 20 years when supplied and installed by Landmark or a Landmark-approved installer.
